Terex Genie 9595-101 Service Manual page 45

June 2018

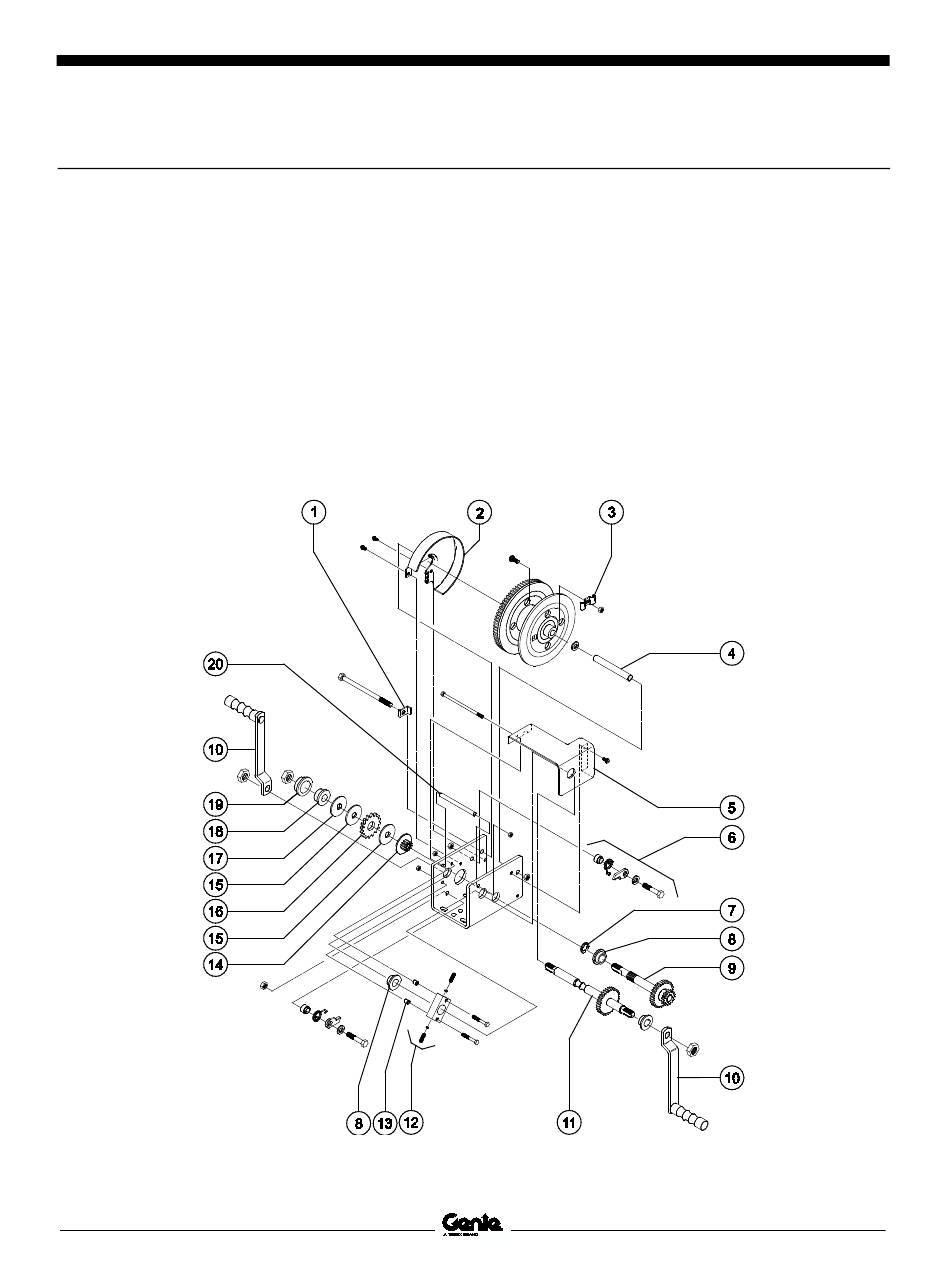

Two-speed Winch Assembly
Index
No. Description
1 Reel Lock Bolt
2 Reel Cover
3 Cable Keeper
4 Reel Spacer
5 Gear Cover
6 Ratchet Pawl Kit
7 Retaining Ring
8 Sintered Iron Ring
9 Pinion Shaft Assembly
10 Handle
Superlift C ontr actor
Part No. 115409
Index
No.
11
12
13
14
15
16
17
18
19
20
Part No. 115409
Superlift Contractor
Repair Procedures
Description
Input Shaft Assembly
Brake Spring Spacer
Detent Block Assembly
Pinion Gear
Disc Brake
Ratchet Gear
Pinion Plate
Brake Spacer
Pinion Shaft Bushing
Base Spacer
Servic e M anual
Service Manual
June 2018
45
