Lifting Cable

How to Replace the Lifting Cable
Bodily injury hazard. Cables can
fray. Always wear adequate
hand protection when handling
cable.
Note: All Genie replacement cables come with one
pre-swaged end that terminates at the top of the
last column and one taped end that terminates at
the winch.
Note: For additional information, refer to
instructional video, Genie Superlift Cabling
Procedure. This video is available from Genie
Industries (Genie part number 52701).
1 Fully lower the carriage.

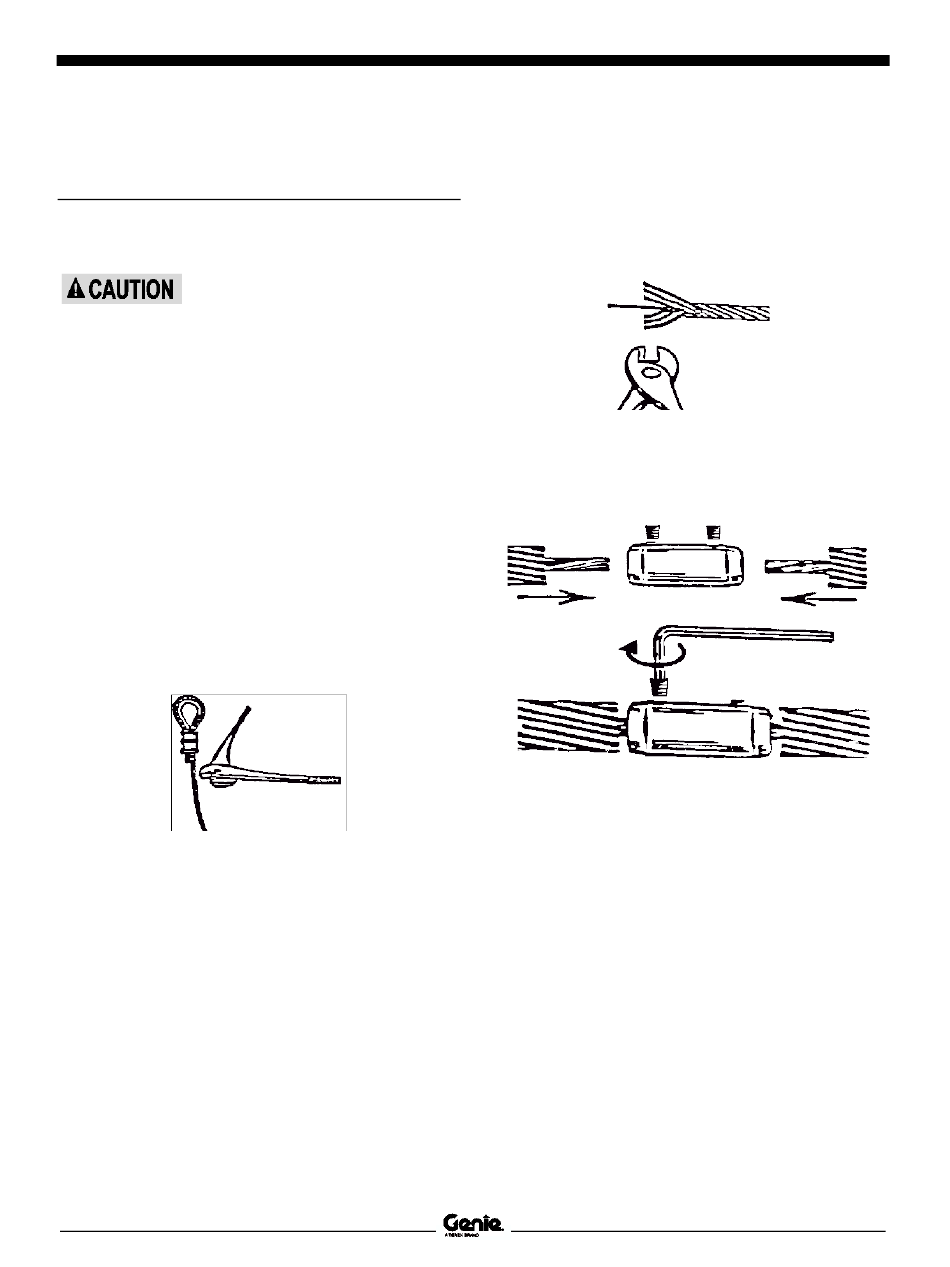

2 Remove the retaining fasteners from the
eyelet end of the cable at the mast anchor
plate and cut the eyelet off below the copper
sleeve.
Part No. 115409
3 Remove the old cable from the winch drum.
4 Unwind the outer strands and trim them
back1/2 inch / 13 mm leaving the core longer.
Repeat this process on the open end of the
new cable.
5 Using the optional cable threading tool (Genie
part number 12402), insert even amounts of
cable into each end of the tool. Securely
tighten the set screws.
