Service Manual
Checklist C Procedures
6 Grasp the bottom of the front column and lift it
approximately 5 inches / 12.7 cm, then
release the column.
Result: The carriage should stop within
3 inches / 7.6 cm and the safety brake should
engage.
Crushing hazard. Do not stand
directly under the columns or load
handling attachment.
7 Raise the front column approximately 6 inches
/ 15.2 cm to disengage the safety brake.

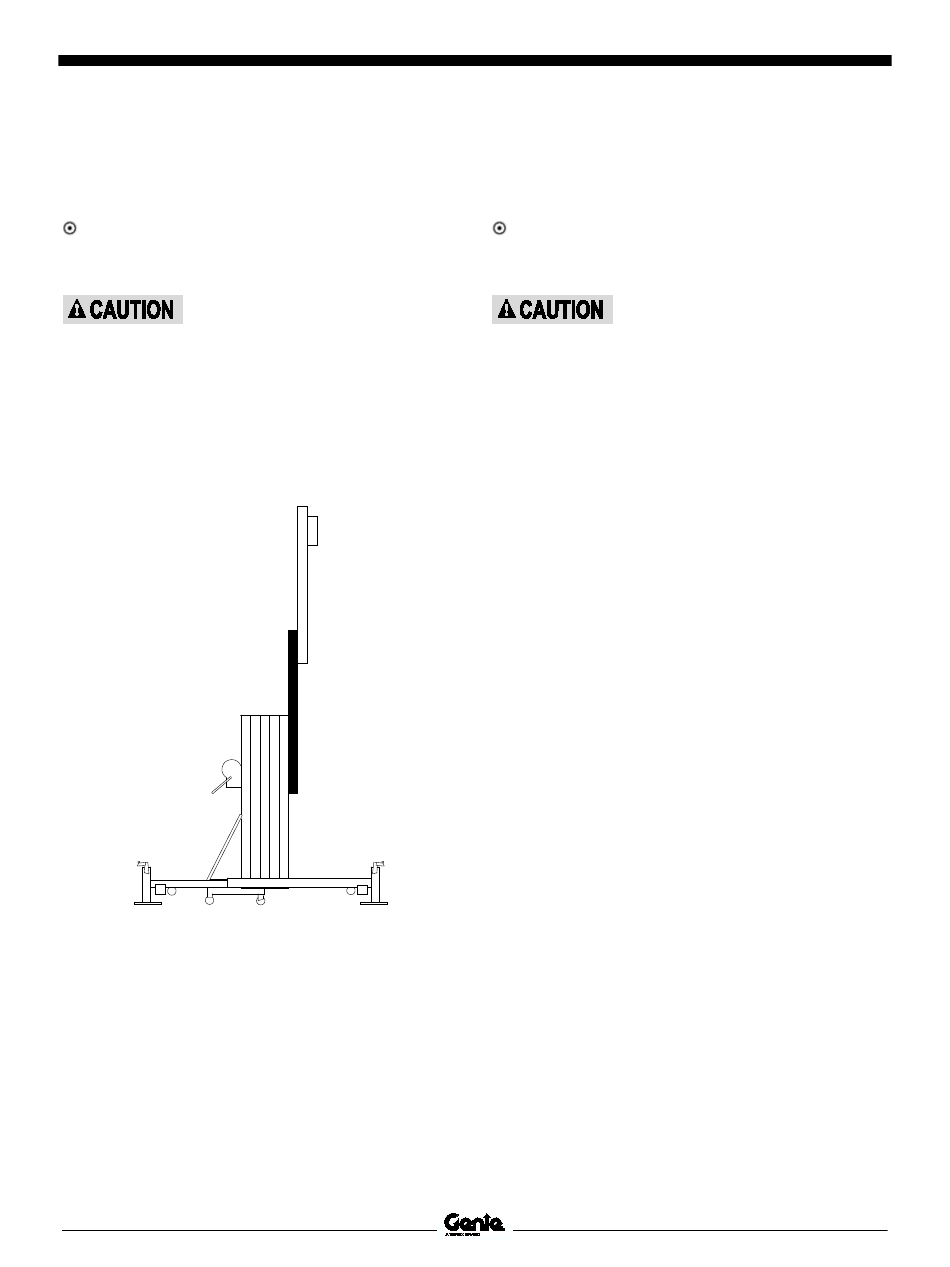

8 Operate the winch until the front column is fully
raised and the second column is half way up
the adjacent column.
26
9 Grasp the bottom side of the next column and
lift it approximately 5 inches / 12.7 cm, then
release the column.
Result: The carriage should stop within
3 inches / 7.6 cm and the safety brake should
engage.
10 Repeat steps 7 through 9 to test all remaining
columns.
Note: When disengaging the safety brake, it may
be necessary to hold down the column behind the
column to be disengaged.
Note: The number one column (column attached to
the base) does not have a safety brake and will not
need to be tested.
Superlift Contractor
Crushing hazard. Do not stand
directly under the columns or load
handling attachment.
