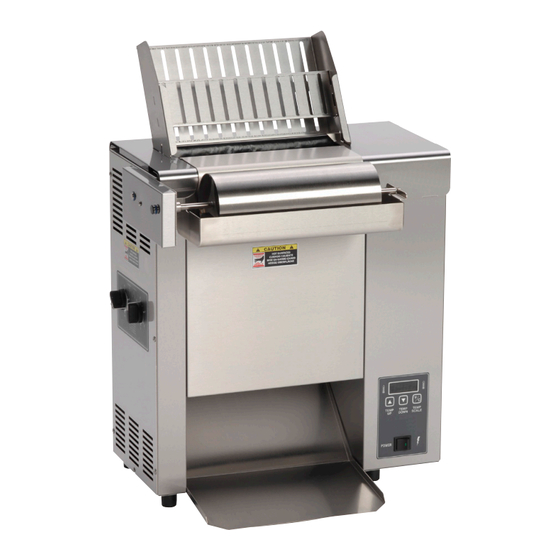

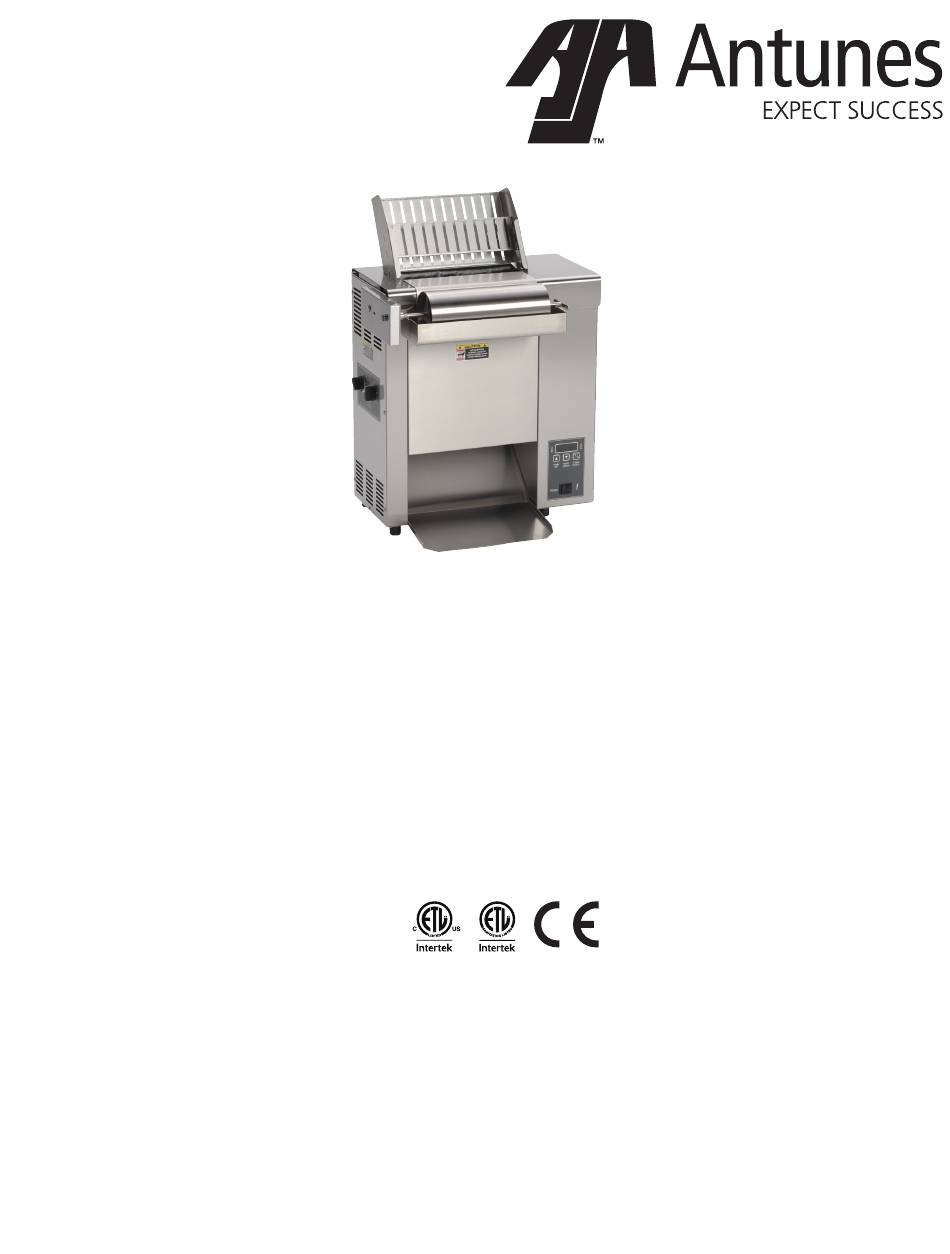

- Page 1 VCT-1000 Vertical Contact Toaster With Mechanical Driven Butter Wheel Owner’s Manual Manufacturing Numbers: 9210719, 9210721 & 9210728 www.antunes.com P/N 1010930 Rev. D 02/18...
-
Page 2: Table Of Contents
Freight damage retrieved from the bottom of the toaster in claims are the responsibility of the purchaser and are approximately 15 seconds (VCT-1000) or 45 seconds NOT covered under warranty. (VCT-50). The warranty does NOT extend to: This manual provides the safety, installation, and oper- ating procedures for the Vertical Contact Toaster. -
Page 3: Service/Technical Assistance
Refer to the service agency directory included with your unit. IMPORTANT Antunes reserves the right to change specifications and product design without notice. Such revisions do NOT entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. -
Page 4: Important Safety Information
• All electrical connections must be in accordance with local electrical codes and any other appli- • This equipment should be serviced by qualified cable codes. personnel only. Contact the nearest Antunes Authorized Service Agency for adjustment or • WARNING ELECTRICAL SHOCK HAZARD. repair. -
Page 5: Specifications
VERTICAL CONTACT TOASTER SPECIFICATIONS Electrical Ratings Model & Volts Watts Amp. Hertz Mfg. No. VCT-1000 9210719 208– 2600– 12.5– 9210721 3455 14.4 9210728 Electrical Cord & Plug Configurations Model & Description Configuration Mfg. No. VCT-1000 NEMA 6-20P 20 9210719 Amp, 250 VAC 9210721 Non–Locking... -
Page 6: Installation
NOTE: Make sure the Heat Shield is activating the NOTE: If any parts are missing or damaged, con- Conveyor Interlock Safety Switch (Figure 1). The tact Antunes IMMEDIATELY at 630-784-1000. conveyors will not rotate unless the Heat Shield is in place and activating the Conveyor Safety Equipment Setup Interlock Switch. - Page 7 Rear Conveyor Belt Chain Conveyor Yellow Safety Support Interlock Switch Front Conveyor Belt Chain Rear Conveyor Cover Assembly Roller Tensioner Assembly Front Conveyor Cover Assembly Bun Chute Figure 1. VCT-1000 With Mechanical Driven Butter Wheel P/N 1010930 Rev. D 02/18...
-
Page 8: Operation
VERTICAL CONTACT TOASTER OPERATION Operating Instructions Bun Thickness Adjustment Controls IMPORTANT (See Figure 3) Verify that the Release Sheet is installed completely over the Platen (Figure 1) before proceeding. Failure THICKNESS THICKNESS Hi-Limit Reset to use Release Sheet may cause permanent damage to the Platen surface that is not covered by warranty. -
Page 9: Maintenance
VERTICAL CONTACT TOASTER MAINTENANCE 7. Wipe down the outside of the toaster with a CAUTION clean, damp, sanitized towel. Turn the power off, unplug the power cord, and allow 8. Install the Release Sheet by draping it over both the unit to cool down 30 minutes before performing sides of the Platen with the crease centered on any service or maintenance. -
Page 10: Checking The Conveyor Belt Chains
VERTICAL CONTACT TOASTER MAINTENANCE (continued) Checking the Conveyor Belt Chains (Every 3–6 Months) NOTE: The Bun Thickness Compression Knobs (Figure 3) must be set to “6 & 6” prior to measur- ing or removing or reinstalling the Conveyor Belt Chains. MEASURING CONVEYOR BELT CHAINS 1. -
Page 11: Replacing The Roller Tensioners
VERTICAL CONTACT TOASTER MAINTENANCE (continued) Replacing the Roller Tensioners REPLACING CONVEYOR BELT CHAINS 1. Turn the power off, unplug the power cord, and 1. Push down on retaining tab of the tensioner. allow the unit to cool before proceeding. 2. While keeping pressure on the retaining tab, slide 2. -
Page 12: Troubleshooting
VERTICAL CONTACT TOASTER TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test, and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. Use extreme care during electrical circuit tests. Live circuits will be exposed. Problem Possible Cause Corrective Action... - Page 13 VERTICAL CONTACT TOASTER TROUBLESHOOTING (continued) Problem Possible Cause Corrective Action Product is over toasted Temperature set too high. Set Temperature Control to a lower setting. or Platen heat is too Bun Thickness Compression Measure bun thickness and set Bun Thickness high or drop time is too Knobs set improperly.
-
Page 14: Wiring Diagram
VERTICAL CONTACT TOASTER WIRING DIAGRAM Pictorial Wiring Diagram VCT-50 & VCT-1000 POWER CORD NOTE: ALL WIRES TO BE 14 GA. AWM-105°C UNLESS OTHERWISE SPECIFIED. * 16 GA. TFE-200°C = 18 GA. AWM-105°C # 16 GA. AWM-105°C % 14 GA. TFE-200°C... -
Page 15: Replacement Parts
VERTICAL CONTACT TOASTER REPLACEMENT PARTS Parts Identification Interlock Switch Drive Chain Idler Sprocket Front Drive Rear Drive Sprocket Sprocket Temperature Control Thermostat Fan Blade Power Switch Hi-Limit Control Drive Motor Assy. P/N 1010930 Rev. D 02/18... - Page 16 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1010930 Rev. D 02/18...
- Page 17 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1010930 Rev. D 02/18...
- Page 18 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) 30, 94 31, 95 P/N 1010930 Rev. D 02/18...
- Page 19 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Item Part No. Description Qty. Item Part No. Description Qty. 0011266 Conveyor Belt Chain 310P157* Washer, #10 (Incl. Items Below) 308P101* Nut, #8-32 0800204 1/2” Pitch Link, Small 306P101* Nut, Hex, #6-32 0800121 3/4” Pitch Link, Large 306P123* Screw, #6-32 x 7/8”...
-
Page 20: Limited Warranty
2 hours (100 miles/160 km) round trip from the nearest authorized service agency. 2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
