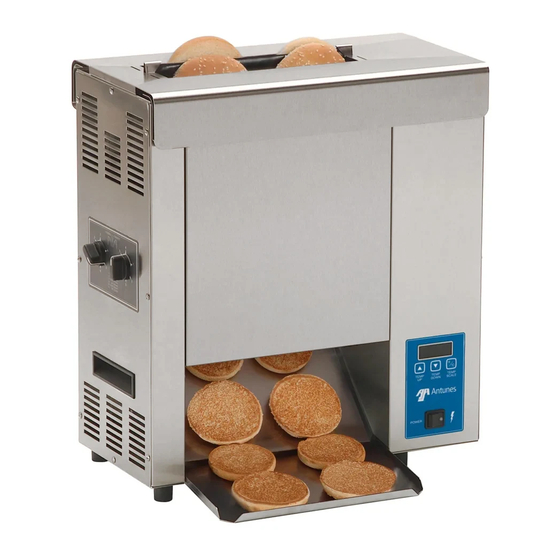

Antunes VCT-2000 Owner's Manual

Vertical contact toaster
Hide thumbs Also See for VCT-2000:
Table of Contents

Advertisement

Quick Links

Vertical Contact Toaster
Model VCT-2000
owner's manual
Manufacturing Numbers:
9210114, 9210118, 9210109, 9210219
www.antunes.com
P/N 1010832 Rev. F 03/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCT-2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Antunes VCT-2000

Summary of Contents for Antunes VCT-2000

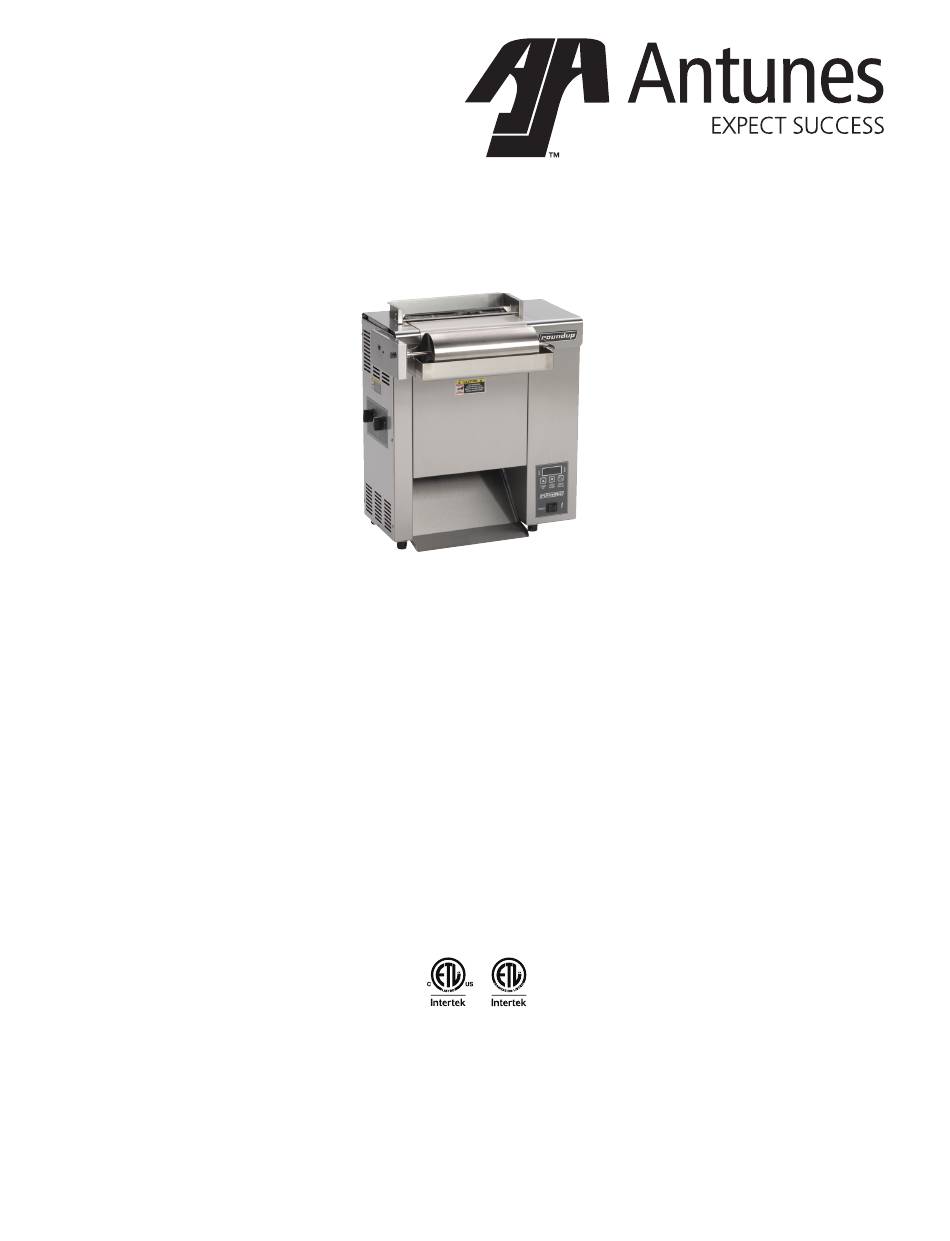

  • Page 1 Vertical Contact Toaster Model VCT-2000 owner’s manual Manufacturing Numbers: 9210114, 9210118, 9210109, 9210219 www.antunes.com P/N 1010832 Rev. F 03/18...
