Antunes VCTM-2 Owner's Manual

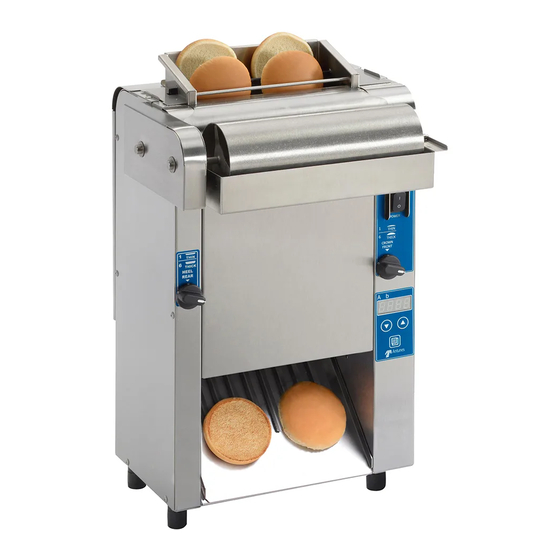

Vertical contact toaster
Hide thumbs Also See for VCTM-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
®
Vertical Contact Toaster
VCTM-2
Owner's Manual
Manufacturing Number:
9210918
Original Instructions
P/N 1011545 Rev. B 09/19
CAUTION: Read all instructions before using the unit.
www.antunes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCTM-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Antunes VCTM-2

Summary of Contents for Antunes VCTM-2

  • Page 1 ® Vertical Contact Toaster VCTM-2 Owner’s Manual Manufacturing Number: 9210918 Original Instructions P/N 1011545 Rev. B 09/19 CAUTION: Read all instructions before using the unit. www.antunes.com...

  • Page 2: Table Of Contents

    If any parts are missing or damaged, ies, butcheries, etc., But not for continuous Service/Technical Assistance problems with the installation or operation mass production of food. of this product contact Antunes Customer In Case of Damage Service immediately at +1-877-392-7856 Equipment Information to Save (toll free).

  • Page 3: Safety Information

    Inc. (BOCA) and the Food Service performed by qualified personnel Sanitation Manual of the Food y Do not block or cover any ONLY. Contact Antunes Technical and Drug Administration (FDA). openings on the equipment. Service for adjustment or repair. y Install and locate the equipment...

  • Page 4: Specifications

    Specifications Electrical Ratings Model & Volts Watts Hertz Plug Description Mfg. No. NEMA 6-20P, VCTM-2 208-230 3100 14.9/136.4 50/60 20 Amp., 250 VAC 9210918 Right Angle Dimensions Model & Width Depth Height Mfg. No. VCTM-2 14.01” 16.29” 25.66” 9210918 (355.8 mm) (413.7 mm)

  • Page 5: Installation

    Remove all shipping tape and protec- tive coverings from the unit and parts. Rear Cleated Belt Wrap NOTE: Missing or damaged parts? Front Cleated Belt Wrap Contact Antunes Customer Service at +1-877-392-7856 (toll free). Equipment Setup Before placing the toaster into service, pay Roller Tensioner...

  • Page 6: Operation

    The default and recommended tempera- & Temperature Display ture setting for the platen heater is 560° F (293° C). Figure 3. VCTM-2 Toaster The default and recommended tempera- ture setting for the Aux heater is 400° F Light/Dark Setting Hi-Limit Reset Button (204°...

  • Page 7: Viewing Settings

    Changing Settings Factory Reset Viewing Settings The only settings that can be changed on To reset the toaster to the original factory To view the toaster settings press and hold settings: the toaster are: the Menu button (Figure 4) for approxi- mately 5 seconds.
  • Page 8 With a smaller footprint than the standard Vertica tact Toaster, the VCTM-2 is a perfect fit for any op where space is limited. FEATURES ■ Toasts two complete buns simultaneously for in Vertical Contact Toaster | VCTM-2000 capacity.

  • Page 9: Maintenance

    Maintenance 13. Wipe down the exterior of the toaster Spray the silver side of the release with a clean, sanitizer-soaked towel sheet with Sink Detergent Solution sprayed with an approved Degreaser and wipe with a clean, sanitizer- Daily Cleaning solution. Rinse the exterior toaster soaked towel.

  • Page 10: Quarterly Cleaning

    Quarterly Cleaning Turn the power OFF, unplug the power cord, and allow the unit to cool before proceeding. Open both conveyor covers again and clean the newly exposed section of the conveyor belt chains from left to right and top to bottom with a non- scratch scouring pad sprayed with an approved Degreaser solution.

  • Page 11: Replacing The Belt Wraps

    Replacing the Belt Wraps Checking the Conveyor Belt Turn the power off, unplug the power cord, and allow the unit to cool before Chains proceeding. WARNING Measuring conveyor belt Chains Remove the Bun Chute and set the Turn the power off, unplug the power Compression Control Knobs to 6 &...

  • Page 12: Fault Codes

    Reset Hi Limit, turn unit off and back on again. If error persists, con- tact Antunes Technical Service for assistance 877-392-7854. Cannot measure power line voltage Failed on-board transformer Turn unit off and back on again. If error persists, contact Antunes used for power control (T1). Technical Service for assistance 877-392-7854.

  • Page 13: Troubleshooting

    Circuit breakers turned off or tripped. Dam- Reset circuit breakers. If they trip again, check the power cord,plug, aged electrical outlet, plug, or cord. Power and outlet for damage. Contact Antunes Technical Service for as- No Control Display switch damaged sistance 877-392-7854.

  • Page 14: Replacement Parts

    Replacement Parts Exploded View 1 P/N 1011545 Rev. B 09/19 ®...

  • Page 15: Exploded View 3

    Exploded View 2 P/N 1011545 Rev. B 09/19 ®...
  • Page 16 Exploded View 3 22 51 P/N 1011545 Rev. B 09/19 ®...
  • Page 17 P/N 1011545 Rev. B 09/19 ®...

  • Page 18: Replacement Parts List

    Replacement Parts List Item Part No. Description Qty. Item Part No. Description Qty. 0012982 Conveyor Belt Assembly 37/2 2150212 Sprocket, 25B12 1/2” Bore 0013373 Roller Tensioner Assembly 2150214 Sprocket, 25B30, 1/2” Bore 0021951 Tensioner Bracket Weldment - Right 2150250 Bearing, Flanged 0021952 Tensioner Bracket Weldment - Left 2150251 Sprocket, 25B14 3/8”...

  • Page 19: Notes

    Notes P/N 1011545 Rev. B 09/19 ®...

  • Page 20: Limited Warranty

    Travel Time & Mileage in excess of 2 hours (100 miles/160 km) round trip from the nearest authorized service agency. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
