Antunes VCT-2000 Owner's Manual

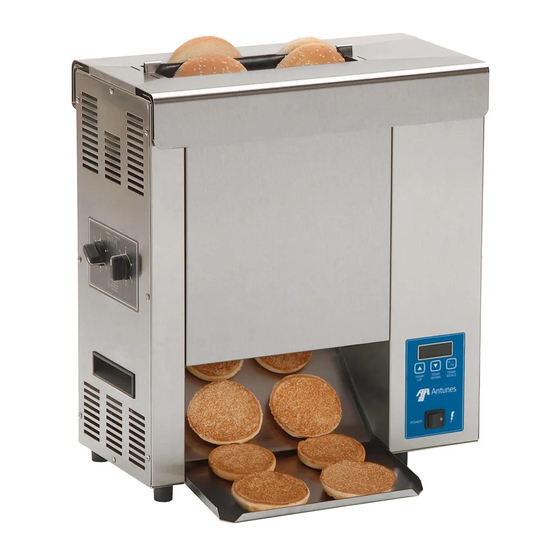

Vertical contact toaster
Hide thumbs Also See for VCT-2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
®
Vertical Contact Toaster
Model VCT-2000
Owner's Manual
Mfg. Number:
9210224
IPX
Rating
www.antunes.com
P/N 1011433 Rev B 08/18
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCT-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes VCT-2000

Summary of Contents for Antunes VCT-2000

  • Page 1 ® Vertical Contact Toaster Model VCT-2000 Owner’s Manual Mfg. Number: 9210224 Rating www.antunes.com P/N 1011433 Rev B 08/18 Original Instructions...

  • Page 2: Table Of Contents

    Important Safety Information as bakeries, butcheries, etc., but not for problems with the installation or operation Installation continuous mass production of food. of this product contact Antunes Customer Unpacking Service immediately at +1-877-392-7856 Equipment Setup (toll free). Assembling the Unit...
  • Page 3 Sanitation Manual of the Food performed by qualified personnel y Do not block or cover any and Drug Administration (FDA). ONLY. Contact Antunes Technical openings on the equipment. Service for adjustment or repair. y Install and locate the equipment y Do not immerse the cord,...

  • Page 4: Specifications

    Electrical Ratings & Plug Configurations Pass Model & Plug Through Volts Watts Amps Hertz Configuration Mfg. Number Description Time VCT-2000 IEC-309 220- 3019- 13.7 - Wide Mouth 10 Seconds 32 Amp., 240~ 3593 14.9 9210224 230 VAC, 3 Pin 10 - 3/4"...

  • Page 5: Important Safety Information

    • This equipment should be serviced by qualified person- walls and materials. Failure to maintain safe oper- nel only. Contact Antunes Technical Service for adjust- ating distances may cause discoloration or com- ment or repair.

  • Page 6: Installation

    Bun Chute supports will be flush against the NOTE: Missing or damaged parts? Contact front of the unit (Figure 1). Antunes Technical Service at 1-877-392-7854 (toll free in the U.S.) or 630-784-1000. NOTE: You may need to stand to the side of the unit to guide the Bun Chute into place from the front Equipment Setup and rear using both hands.
  • Page 7 Rear Cleated Belt Wrap Conveyor Safety Interlock Front Switch Conveyor Belt Chain Front Cleated Belt Wrap Rear Conveyor Roller Tensioner Cover Assembly (with Roller Tensioner) Bun Chute Front Conveyor Cover Assembly Figure 2. VCT-2000 Components P/N 1011433 Rev. B 08/18 ®...

  • Page 8: Operation

    Switch 4. Slide buns across the rotating Butter Wheel with the cut face down. Drop buns into the Bun Figure 3. VCT-2000 Toaster Feeder. The cut sides of heel and crown must face each other and slide against the Release Sheet.
  • Page 9 VERTICAL CONTACT TOASTER OPERATION (continued) TEMPERATURE CONTROL PANEL “Heat On” LED will blink on/off during warm-up and when either platen or auxiliary air heaters are calling for heat. To display the actual Platen temperature—providing it is over 440° F (227° C)—press the TEMP UP button. To display the actual Auxiliary Air Heater temperature—...

  • Page 10: Hi-Limit Reset Button

    Reset Button at the rear of the unit. Remove the black protective cap, press the Reset Button, and reinstall the protective cap (Figure 3). NOTE: If the Hi-Limit requires continuous reset- ting, contact your maintenance person or Antunes Technical Service. Fault Codes FAULT CODE...

  • Page 11: Maintenance

    VERTICAL CONTACT TOASTER MAINTENANCE WARNING THICKNESS THICKNESS Turn the power off, unplug the power cord, and Conveyor Belt allow the unit to cool down for 30 minutes before 1/2"(12.7mm) Chains 5/8"(15.9mm) 3 = 11/16"(17.5mm) 3/4"(19.1mm) 5 = 13/16"(20.6mm) 7/8"(22.2mm) performing any service or maintenance. Interlock Conveyor Switch...

  • Page 12: Checking The Conveyor Belt Chains (Every 3-6 Months)

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Checking the Conveyor Belt Chains 5. Disconnect the Conveyor Belt Chain by squeezing any two links together and unhook both ends of (Every 3–6 Months) one link (Figure 11). Repeat on other side. MEASURING CONVEYOR BELT CHAINS 6.

  • Page 13: Checking The Roller Tensioners (Every 3-6 Months)

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Checking the Roller Tensioners (every 3–6 months) MEASURING THE ROLLER TENSIONERS 1. Measure the Roller Tensioner on both inner Conveyor Covers (Figure 12) using a U.S. Nickel. 2. The space between the inner Conveyor Cover and bottom of the Tensioner wheel should be 13/16”...

  • Page 14: Troubleshooting

    Circuit Breakers turned off or tripped. Reset Circuit Breakers. If they trip again, check the cord, plug, Damaged electrical outlet, plug, or cord. and outlet for damage. Contact your maintenance person, Antunes Power Switch damaged. Technical Service, or electrician. P/N 1011433 Rev. B 08/18...
  • Page 15 Allow unit to cool and check Conveyor(s) for obstructions or binding at sprockets. Measure and adjust Con- veyor Belt(s). Drive Motor has failed. Contact your maintenance person or Antunes Technical Service for service. Buns not toasting properly Compression Settings are incorrect.
  • Page 16 Roller Tensioner(s) damaged or missing. Reinstall or replace Roller Tensioner(s). Drive Motor stalls intermittently. Contact your maintenance person or an Antunes Technical Service for service. Compression Settings are incorrect. Use the recommended settings. Set Heel to 2 and Crown to C.

  • Page 17: Replacement Parts

    VERTICAL CONTACT TOASTER REPLACEMENT PARTS Item Part No. Description Qty. Item Part No. Description Qty. 0011266 Conveyor Belt (Incl. Items below) 2150117 Idler Shaft Assy. (Top, Front) 0800204 1/2” Pitch Link, Small 0503455 Tension Spring, Inner 0800121 3/4” Pitch Link, Large 0503590 Bracket, Motor 2150117...
  • Page 18 VERTICAL CONTACT TOASTER replacement parts (continued) REPLACEMENT PARTS (continued) Item Part No. Description Qty. Item Part No. Description Qty. 331P103* Shoulder Bolt, 5/16-18 x l” 0021320 Butter Wheel Roller 306P105* Screw, #6-32 x 1/2” 0506867 Butter Pan 308P157 Screw, #8-32 x 3/8” 331P106* Lockwasher, 5/16”...
  • Page 19 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1011433 Rev. B 08/18 ®...
  • Page 20 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1011433 Rev. B 08/18 ®...
  • Page 21 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) 30, 94 31, 95 P/N 1011433 Rev. B 08/18 ®...

  • Page 22: Wiring Diagram

    VERTICAL CONTACT TOASTER WIRING DIAGRAM P/N 1011433 Rev. B 08/18 ®...

  • Page 23: Notes

    VERTICAL CONTACT TOASTER NOTES P/N 1011433 Rev. B 08/18 ®...
  • Page 24 VERTICAL CONTACT TOASTER NOTES (continued) P/N 1011433 Rev. B 08/18 ®...

  • Page 25: Limited Warranty

    2 hours (100 miles/160 km) round trip from the nearest authorized service agency. 2. Antunes reserves the right to make changes in design or add any improvements on any prod- uct. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
