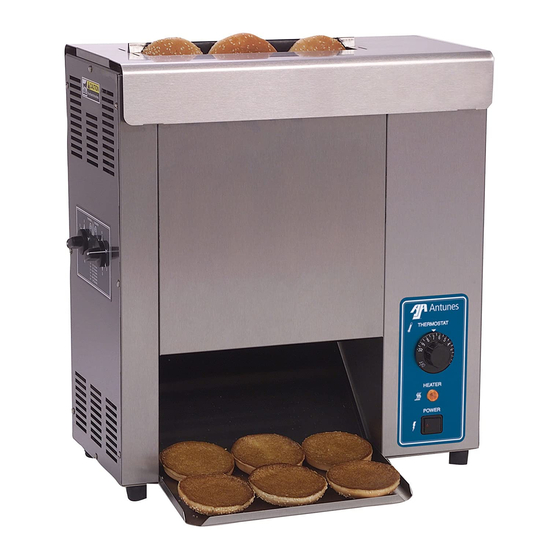

Vertical Contact Toaster
Original Instructions
www.antunes.com
Model VCT-1000
owner's manual
Manufacturing Numbers:
9210700, 9210702, 9210704, 9210705,
9210707, 9210709, 9210710, 9210711,
9210712, 9210714, 9210716, 9210722,
9210723
CAUTION: Read all instructions before using the unit.
®
IPX
Rating
P/N 1010807 Rev. Q 09/18
Advertisement
Table of Contents
Related Manuals for Antunes VCT-1000 Series
Summary of Contents for Antunes VCT-1000 Series
- Page 1 ® Vertical Contact Toaster Model VCT-1000 owner’s manual Manufacturing Numbers: 9210700, 9210702, 9210704, 9210705, 9210707, 9210709, 9210710, 9210711, 9210712, 9210714, 9210716, 9210722, 9210723 Rating Original Instructions www.antunes.com P/N 1010807 Rev. Q 09/18 CAUTION: Read all instructions before using the unit.
-
Page 2: Table Of Contents
If any parts are missing or damaged, ies, butcheries, etc., but not for continuous Service/Technical Assistance problems with the installation or operation mass production of food. of this product contact Antunes Customer In Case of Damage Service immediately at +1-877-392-7856 Equipment Information to Save (toll free). -
Page 3: Safety Information
Inc. (BOCA) and the Food Service performed by qualified personnel Sanitation Manual of the Food y Do not block or cover any ONLY. Contact Antunes Technical and Drug Administration (FDA). openings on the equipment. Service for adjustment or repair. y Install and locate the equipment... -
Page 4: Specifications
Specifications 20-5/16” 10-3/4” (516.0 mm) (237.1 mm) 23-7/32” (590.0 mm) 22-11/16” (576.2 mm) 9-3/4” (248.0 mm) Model & Volts Watts Amp. Hertz Description Mfg. No. VCT-1000CF 5-15P, 15 Amp., 9210700 1800 15.0 120 VAC, Non-locking 9210716 (Assembly Only) 9210722 VCT-1000CV 6-20P, 20 Amp., 9210702 208/240... -
Page 5: Installation
(front) parts. Conveyor Interlock Switch Front Con- NOTICE: If any parts are missing or (Some Models) veyor Belt damaged, contact Antunes Cus- Chain tomer Service IMMEDIATELY at Conveyor Conveyor +1-877-392-7856 (toll free). Cover Assy. Cover Assy. (rear) -
Page 6: Operating Instructions
Operating Instructions Set the Bun Thickness Compression Bun Thickness Adjustment Controls Knobs (Figure 4) to the desired set- tings. NOTICE: After initial run of 4-6 buns, Hi-Limit Reset adjust controls according to the THICKNESS THICKNESS desired finished product. 1/2"(12.7mm) 5/8"(15.9mm) 3 =11/16"(17.5mm) 3/4"(19.1mm) 5 =13/16"(20.6mm) 7/8"(22.2mm) Turn the power on (Figure 3). Turn the temperature control to 10 and allow the unit to warm up for 30 minutes. -
Page 7: Daily Maintenance
Daily Maintenance Replacing the Release Sheet NOTICE: As of March 2017, the Inter- lock Switch was removed from NOTICE: Depending on toaster usage NOTICE: To prevent damage to the unit, use. If your toaster has the and on how well it is cleaned do not use abrasive cleaners on Interlock Switch (Figure 11), daily, the Release Sheet should... -
Page 8: Checking The Conveyor Belt Chains
Checking the Conveyor Belt Conveyor Belt Chains Chains Interlock NOTICE: The Bun Thickness Compres- Conveyor Switch sion Knobs (Figure 4) must be Cover Assy. (Some Models) set to “6 & 6” or “6 & F” prior to measuring or removing or reinstalling the Conveyor Belt Chains. -
Page 9: Replacing Conveyor Belt Chains
Replacing Conveyor belt Chains Turn the power off, unplug the power cord, and allow the unit to cool before proceeding. Remove the Butter Wheel, Pan, and Heat Shield and set the Compression Control Knobs to 6 & 6 or 6 & F. Open both Conveyor Covers and pull the Belt Wrap Pin out of the zipper. -
Page 10: Troubleshooting
Troubleshooting WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equipment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. Use ex- treme care during electrical circuit tests. - Page 11 Problem Possible Cause Corrective Action Product is over toasted, Temperature set too high. Set temperature control to a lower setting. Platen heat is too high, or Bun Thickness Compression Knobs Measure bun thickness and set Bun Thickness Compression drop time is too slow. set improperly.
-
Page 12: Wiring Diagram
Wiring Diagram P/N 1010807 Rev. Q 09/18 ®... -
Page 13: Parts Identification
Parts Identification Interlock Switch (Some Models) Drive Chain Idler Sprocket Rear Drive Front Drive Sprocket Sprocket Temperature Control Thermostat Fan Blade Power Switch Hi-Limit Control Drive Motor Assy. P/N 1010807 Rev. Q 09/18 ®... -
Page 14: Replacement Parts
Drive Motor Kit 120V 7000282 NOTICE (Incl. #58) Drive Motor Kit 230V Use only genuine Antunes replacement parts in this unit. Use 7000271 (Mfg. #9210714 only) of parts other than those supplied by the manufacturer will void the warranty. Gearmotor Assy 230V 3 RPM 0012112 (Mfg. - Page 15 Item Part # Description Qty. Item Part # Description Qty. 4030332 High Limit Control 210P230 Bumper, Recess Leg, 1” 0400251 Strain Relief 310P136* Screw, #10-32 x 1-1/4” Strain Relief 308P133* Screw, #8-32 x 1/4” 0400315 (Mfg # 9210704 only) 308P183* Screw, Hex Head, #8-32 x 3/8”...
-
Page 16: Exploded View (Page 1)
Exploded View (Page 1) Hinged Conveyor Cover with Optional Roller Tensioner Assembly. 92 (optional - use only with #93 P/N 1010807 Rev. Q 09/18 ®... -
Page 17: Exploded View (Page 2)
Exploded View (Page 2) NOTICE: As of March 2017, the Interlock Switch (item 53) is discontinued from use. If your toaster has the Interlock Switch and it fails, order kit 7001436 to remove and bypass the Interlock Switch. P/N 1010807 Rev. Q 09/18 ®... -
Page 18: Exploded View (Page 3)
Exploded View (Page 3) P/N 1010807 Rev. Q 09/18 ®... -
Page 19: Optional Kits
Optional Kits Mechanical Butter Wheel Kit (P/N 7000298) Requires Professional Installation. 2 " 8 " 6 " 4 " 6 " 8 "... -
Page 20: Notes
Notes P/N 1010807 Rev. Q 09/18 ®... - Page 21 Notes P/N 1010807 Rev. Q 09/18 ®...
-
Page 22: Limited Warranty
The remedies described above are exclusive and in no event shall Antunes be liable for special consequential or incidental damages for the breach or delay in performance of this warranty.
