Antunes VCT-2000 Owner's Manual

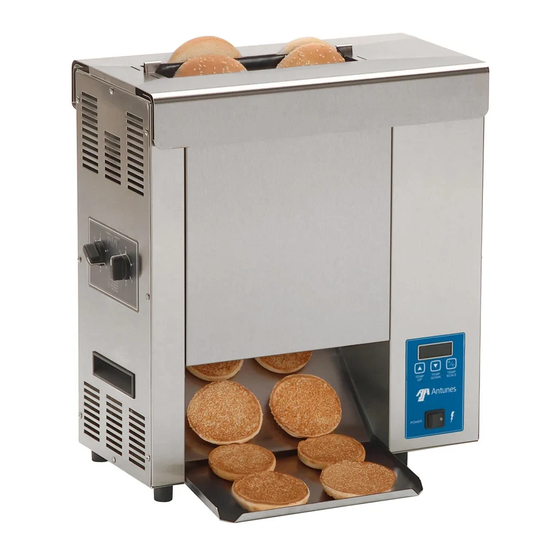

Vertical contact toaster
Hide thumbs Also See for VCT-2000:
Table of Contents

Advertisement

Quick Links

Download this manual
®

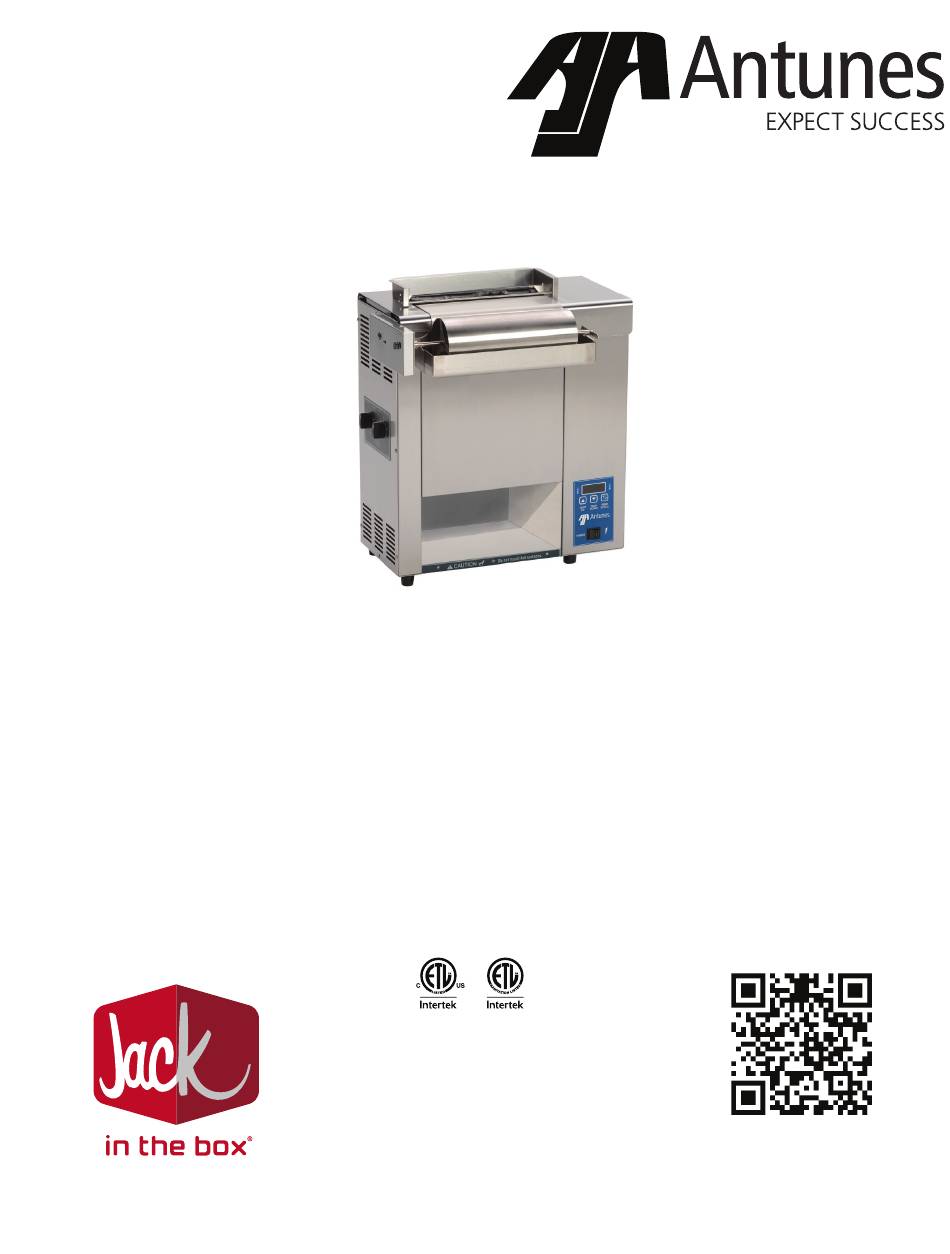

Vertical Contact Toaster
Model VCT-2000
Owner's Manual
Manufacturing Numbers:
9210307
VCT-2000
Scan with mobile device or enter URL
for product and service information.
http://tiny.cc/AJA-JITB-VCT
P/N 1011334 Rev. I 04/20
www.antunes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCT-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes VCT-2000

Summary of Contents for Antunes VCT-2000

  • Page 1 ® Vertical Contact Toaster Model VCT-2000 Owner’s Manual Manufacturing Numbers: 9210307 VCT-2000 Scan with mobile device or enter URL for product and service information. http://tiny.cc/AJA-JITB-VCT P/N 1011334 Rev. I 04/20 www.antunes.com...

  • Page 2: Table Of Contents

    Freight damage operating procedures for the Vertical Contact Toaster claims are the responsibility of the purchaser and are Model VCT-2000. We recommend that all information not covered under warranty. contained in this manual be read prior to installing and The warranty does NOT extend to: operating the unit.

  • Page 3: Service/Technical Assistance

    Serial No.: Mfg. No.: IMPORTANT Antunes reserves the right to change specifications and product design without notice. Such revisions do NOT entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment. P/N 1011334 Rev. I 04/20...
  • Page 4 • This equipment should be serviced by quali- ranty coverage. fied personnel only. Contact Antunes Technical Support for adjustment or repair. • Do NOT clean this appliance with a water jet. • Do NOT block or cover any openings on the unit.

  • Page 5: Specifications

    VERTICAL CONTACT TOASTER SPECIFICATIONS Dimensions Model & Width Depth Height Mfg. No. VCT-2000 21 1/4” 10 3/4” 23 1/4” 9210307 (540 mm) (273 mm) (591 mm) Electrical Ratings Model & Volts Watts Amp. Mfg. No. VCT-2000 (Heated Base) 3329 15.9 9210307 Electrical Cord &...

  • Page 6: Installation

    ELECTRICAL SHOCK HAZARD. FAILURE TO NOTE: If any parts are missing or damaged, FOLLOW THE INSTRUCTIONS IN THIS MANUAL contact Antunes Customer Service IMMEDIATELY COULD RESULT IN SERIOUS INJURY OR DEATH. at 1-877-392-7856 (toll free). • Electrical ground is required on this appliance.
  • Page 7 Release Sheet Rear Belt Platen Wrap Rear Conveyor Belt Chain Front Conveyor Belt Chain Front Belt Wrap Rear Conveyor Cover Assembly (with Roller Roller Tensioner Tensioner) Front Conveyor Cover Assembly Figure 1. VCT-2000 Toaster P/N 1011334 Rev. I 04/20 ®...

  • Page 8: Operation

      1 = 5/8" (16mm) A = 3/4" (19mm)  The VCT-2000 uses a Platen Heater and two Auxiliary 2 = 3/4" (19mm) B = 7/8" (22mm) 3 = 13/16" (21mm) C = 15/16" (24mm) Air Heaters. The Platen Heater consists of a heating 4 = 7/8"...
  • Page 9 VERTICAL CONTACT TOASTER OPERATION (continued) “Heat On” LED will blink on/off during warm-up and when either TEMPERATURE CONTROL PANEL platen or auxiliary air heaters are calling for heat. NOTE: The term “setpoint temperature” refers to the desired temperature setting. SP - P To display the actual Platen temperature—providing it is over 440°F (227°C)—press the TEMP UP button.

  • Page 10: Hi-Limit Reset Button

    VERTICAL CONTACT TOASTER OPERATION (continued) Hi-Limit Reset Button A Hi-Limit Control turns off electrical power to the heater and control circuits if the platen overheats. To reset the control, allow 10-15 minutes for the unit to cool, then locate the Reset Button at the rear of the unit.

  • Page 11: Maintenance

    VERTICAL CONTACT TOASTER MAINTENANCE WARNING 9. Close the rear Conveyor Cover. Plug in the Turn the power off, unplug the power cord, and power cord, turn the unit on, count 15 seconds, allow the unit to cool down 30 minutes before per- then turn the unit off and unplug the unit.

  • Page 12: Replacing The Black And Silver Release Sheet (Every 4-6 Weeks)

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Replacing the Black and Silver Release 7. Close the Conveyor Cover(s), set the Bun Thickness Compression Knobs back to their Sheet (Every 4–6 Weeks) normal settings and reinstall the Heat Shield, NOTE: Depending on toaster usage and on how Butter Wheel, Butter Pan, and Bun Feeder.

  • Page 13: Checking The Conveyor Belt Chains (Every 3-6 Months)

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Checking the Conveyor Belt Chains (Every 3–6 Months) NOTE: The Bun Thickness Compression Knobs (Figure 3) must be set to “6 & F” prior to measur- ing or removing or reinstalling the Conveyor Belt Chains. MEASURING CONVEYOR BELT CHAINS 1.

  • Page 14: Checking The Roller Tensioners (Every 3-6 Months)

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Checking the Roller Tensioners (every 3–6 months) MEASURING THE ROLLER TENSIONERS 1. Measure the Roller Tensioner on both inner Conveyor Covers (Figure 11) using a U.S. Nickel. 2. The space between the inner Conveyor Cover and bottom of the Tensioner wheel should be 13/16”...

  • Page 15: Cleaning The Top Fan

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Cleaning the Top Fan (every 3–6 months) TOP FAN CLEANING PROCEDURE 1. Remove the Eight screws on the right side panel. INSPECT THE TOP FAN FOR SIGNS OF DEBRIS 2. Carefully remove the side Panel and put aside 1.

  • Page 16: Troubleshooting

    Allow the unit to warm up for 30 minutes and then flashes “LO” continu- (226º C). recheck. If the Control Display still reads “LO”, con- ously. Buns not toast- tact your maintenance person or Antunes Technical ing properly. Service for service. Control Display Failed Platen Thermocouple.
  • Page 17 Measure and adjust Conveyor Belt(s) as described in the Mainte- nance section of this manual. Drive Motor has failed. Contact your maintenance person or Antunes Tech- nical Service for service. Buns not toasting Compression Settings are incorrect.
  • Page 18 VERTICAL CONTACT TOASTER TROUBLESHOOTING (continued) Problem Possible Cause Corrective Action Crowns and/or Heels Belt Wraps not being cleaned Clean Belt Wraps as described in the Maintenance must be forced into properly. section of this manual. the toaster. Buns Conveyor Belt Wraps are not tacky/ Clean Belt Wraps.
  • Page 19 VERTICAL CONTACT TOASTER TROUBLESHOOTING (continued) Problem Possible Cause Corrective Action Toaster makes Compression Settings are too tight. Set Compression Settings to the correct (or larger) unusual sounds. setting. Conveyor Belt Wrap is installed Belt Wraps must be installed as described in the incorrectly.

  • Page 20: Replacement Parts

    VERTICAL CONTACT TOASTER REPLACEMENT PARTS Parts Identification Platen Item 54 Item 54 Front Auxiliary Rear Auxiliary Air Heater Air Heater Item 50 Auxiliary Air Item 18 Thermocouple Drive Chain Item 19 Item 27 Idler Sprocket Transformer Item 17 Item 17 Front Drive Rear Drive Sprocket...
  • Page 21 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Heated Base Only Heated Base Only          2 " 8 " 6 " 4 " 6 " 8 "   P/N 1011334 Rev. I 04/20 ®...
  • Page 22 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) 30, 94 31, 95 P/N 1011334 Rev. I 04/20 ®...
  • Page 23 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1011334 Rev. I 04/20 ®...
  • Page 24 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Item Part No. Description Qty. Item Part No. Description Qty. 0011266 Conveyor Belt (Incl. items below) 51 7000288 Platen (208V) 0800204 1/2” Pitch Link, Small 2150384 Bearing Assy, Hi-Temp 1 1/8 OD X 1/2 ID 0800121 3/4”...
  • Page 25 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Item Part No. Description Qty. 105 7000292 Bun Feeder Kit 106 0503987 Butter Pan 108 2140152 Lubricant (not shown) 109 0021320 Butter Wheel Roller 111 308P157 Screw, #8-32 x 3/8” 112 2150204 Bearing, Shaft, 1/2” 114 2150212 Sprocket, 12 Tooth 115 2150207...

  • Page 26: Wiring Diagram

    VERTICAL CONTACT TOASTER WIRING DIAGRAM P/N 1011334 Rev. I 04/20 ®...

  • Page 27: Notes

    VERTICAL CONTACT TOASTER NOTES P/N 1011334 Rev. I 04/20 ®...

  • Page 28: Limited Warranty

    2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
