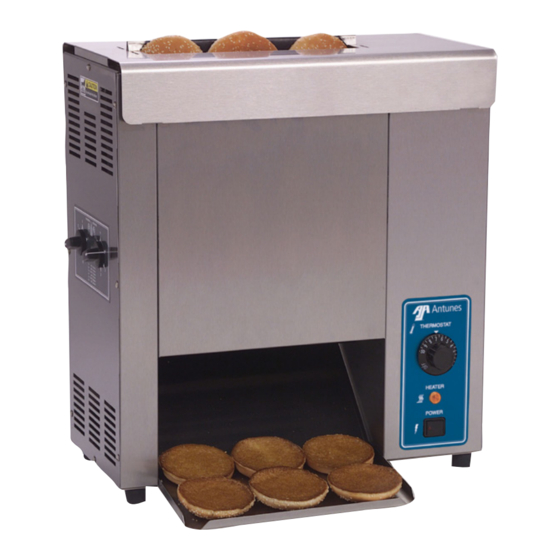

Antunes VCT-35 Owner's Manual

Vertical contact toaster
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

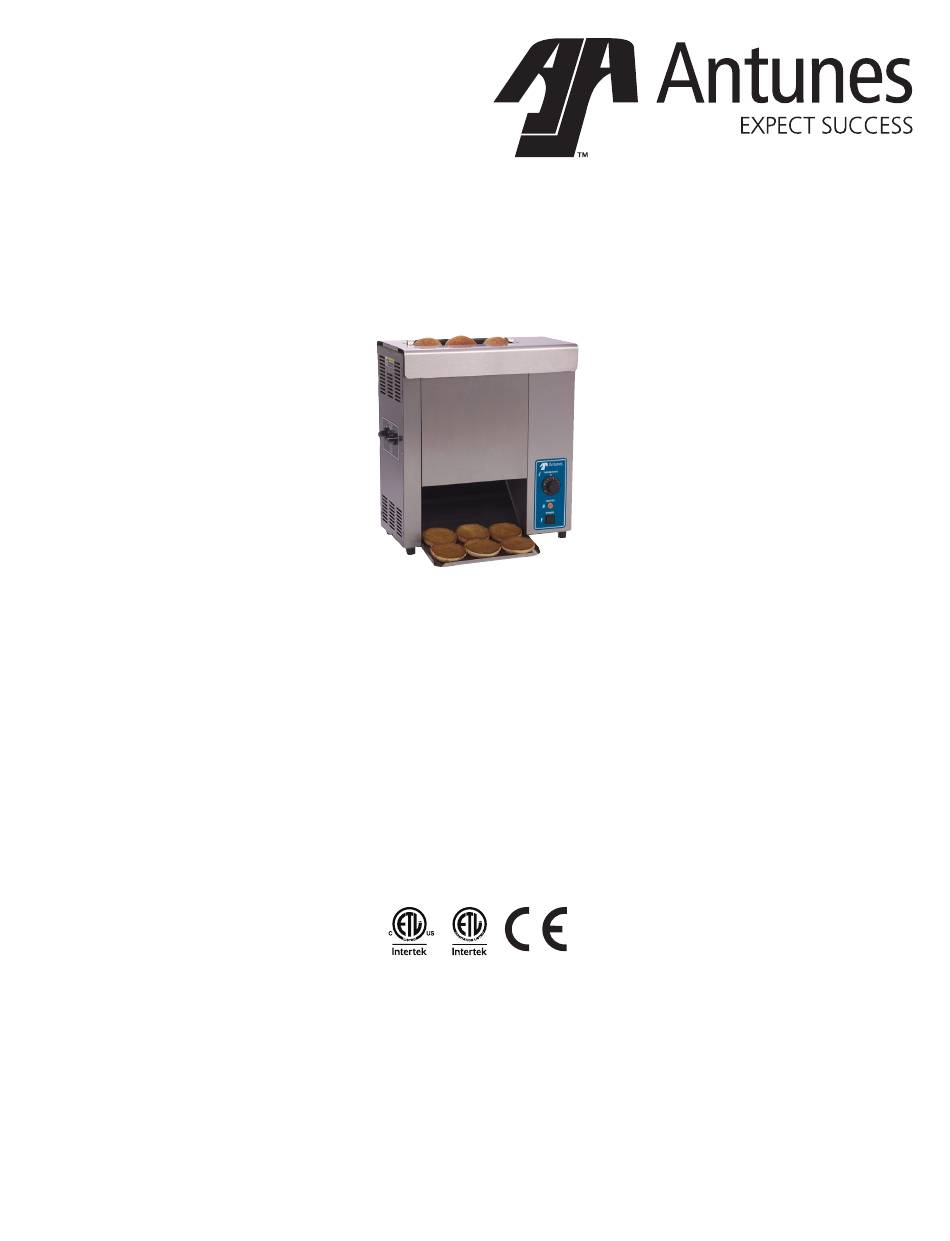

Vertical Contact Toaster
Model VCT-35
owner's manual
Manufacturing Numbers:
9200641, 9200642, & 9200643
www.antunes.com
P/N 1011287 Rev. E 02/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCT-35 and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes VCT-35

Summary of Contents for Antunes VCT-35

  • Page 1 Vertical Contact Toaster Model VCT-35 owner’s manual Manufacturing Numbers: 9200641, 9200642, & 9200643 www.antunes.com P/N 1011287 Rev. E 02/18...

  • Page 2: Table Of Contents

    VERTICAL CONTACT TOASTER TABLE OF CONTENTS Owner Information .............2 Operation ..............8 General ..............2 Operating Instructions ..........8 Warranty Information ..........2 Safety Features ............8 Maintenance ..............9 Service/Technical Assistance ........3 Important Safety Information ........3 Daily ................9 Specifications .............5 Conveyor Belt Chains ..........10 Electrical Ratings & Plug Configurations ....5 Replacing Roller Tensioners ........11 Dimensions ..............5 Replacing Conveyor Motor and Fan Blade .....11...

  • Page 3: Service/Technical Assistance

    Antunes reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
  • Page 4 DEATH. • This equipment should be serviced by quali- - Electrical ground is required on this appliance. fied personnel only. Contact Antunes Technical - Do not modify the power supply cord plug. If Service for adjustment or repair. it does not fit the outlet, have a proper outlet •...

  • Page 5: Specifications

    VERTICAL CONTACT TOASTER SPECIFICATIONS Electrical Ratings & Plug Configurations Model & Plug Volts Watts Amps Hertz Configuration Mfg. Number Description NEMA 5-15 15 Amp., VCT-35 1760 14.6 50/60 250 VAC 9200641 Non-Locking (assembly only) CEE 7/7 VCT-35 16.6 - 208-240~ 3460 50/60 16 Amp., 250 VAC...

  • Page 6: Installation

    3. Remove all packing materials and protective cov- Yellow Support erings from the unit and parts. NOTE: If any parts are missing or damaged, con- tact Antunes Customer Service IMMEDIATELY at +1-877-392-7856 (toll free). Assembling the Unit 1. Remove the Heat Shield and the front and rear Conveyor Covers (Figure 1).

  • Page 7: Equipment Setup

    VERTICAL CONTACT TOASTER INSTALLATION (continued) NOTE: As of March 2017, the Interlock Switch was removed from use. If your toaster has the Interlock Switch, you will need to place the Heat Shield onto the toaster in order for the conveyors to turn. If your toaster does not have an Interlock Switch, the conveyors will turn as long as the unit is on.

  • Page 8: Operation

    (Figure 5). 1/2"(12.7mm) If the unit requires continuous resetting, contact your 5/8"(15.9mm) 3 =11/16"(17.5mm) Maintenance Person or Antunes Technical Service. 3/4"(19.1mm) 5 =13/16"(20.6mm) 7/8"(22.2mm) CONVEYOR INTERLOCK SAFETY SWITCH A Conveyor Interlock Safety Switch (some models) is Figure 6.

  • Page 9: Maintenance

    VERTICAL CONTACT TOASTER MAINTENANCE WARNING Heat Shield Turn the unit off, disconnect the power source and allow the unit to cool down before performing any service or maintenance on the unit. Daily Release Sheet CLEANING THE ACCESSORIES 1. Turn the unit off, unplug the power cord, and allow the unit to cool for 30 minutes.

  • Page 10: Conveyor Belt Chains

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) Conveyor Belt Chains Rotation MEASURING THE CONVEYOR BELT CHAINS Upper Yellow Support Rod 1. Facing the toaster, locate the approximate center- point of the Conveyor Chain. 2. Pull the Conveyor chain away from the edge of the toaster.

  • Page 11: Replacing Roller Tensioners

    VERTICAL CONTACT TOASTER MAINTENANCE (continued) REPLACING CONVEYOR BELT CHAINS 7. Using the four new 8-32 x 5/16” stainless steel SEMS truss head screws, attach the drive motor 1. Remove the old Conveyor Belt chain as described bracket to the mounting bracket. DO NOT tighten previously on page 10.

  • Page 12: Troubleshooting

    Perform the installation and operating procedures belts do not move. found in the Installation section of this manual. Not enough voltage, defective Contact your Maintenance Person or Antunes Technical Service for service. power cord, defective rocker switch. Hi-limit switch tripped open.
  • Page 13 Conveyor Covers not installed. Install the Conveyor Covers. Conveyor Belts chains Reinstall Conveyor Belt. installed incorrectly Defective Platen. Contact your Maintenance Person or Antunes Technical Service for service. Defective or wrong drive Contact your Maintenance Person or Antunes Technical Service for service.
  • Page 14 TROUBLESHOOTING (continued) Problem Possible Cause Corrective Action Product is getting stuck or Not enough voltage, defective Contact your Maintenance Person or Antunes power cord or rocker switch. conveyor belts stop when Technical Service for service. product is toasting. Wiring problem.
  • Page 15 Bun adjustment controls set Measure bun thickness and set bun adjustment con- trols correctly. incorrectly. Conveyor drive motor inop- Contact your Maintenance Person or Antunes Technical Service for service. erative or incorrect conveyor motor installed on toaster. Conveyor drive chain loose, Check drive chain for kinks, broken or bent links worn or broken.

  • Page 16: Wiring Diagram

    VERTICAL CONTACT TOASTER WIRING DIAGRAM For Mfg. No. 9200641 & 9200642 (with Interlock Switch) For Mfg. No. 9200643 (with Interlock Switch) P/N 1011287 Rev. E 02/18...
  • Page 17 VERTICAL CONTACT TOASTER WIRING DIAGRAM (continued) For Mfg. No. 9200641 & 9200642 (without Interlock Switch) For Mfg. No. 9200643 (without Interlock Switch) P/N 1011287 Rev. E 02/18...
  • Page 18 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) Item Part No. Description Qty. Item Part No. Description Qty. 0400138 Locknut, 1/2” 0011266 Conveyor Belt 0503590 Bracket, Motor 0800204 1/2” Pitch Link, Small 0070640 Wire Set (Not Shown) 0800121 3/4” Pitch Link, Large (Mfg.
  • Page 19 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1011287 Rev. E 02/18...
  • Page 20 VERTICAL CONTACT TOASTER PARTS (continued) NOTE: As of March 2017, the Interlock Switch (item 53) is discontinued from use. If your toaster has the Interlock Switch and it fails, order kit 7001436 to remove and bypass the Interlock Switch. P/N 1011287 Rev. E 02/18...
  • Page 21 VERTICAL CONTACT TOASTER REPLACEMENT PARTS (continued) P/N 1011287 Rev. E 02/18...

  • Page 22: Notes

    VERTICAL CONTACT TOASTER NOTES P/N 1011287 Rev. E 02/18...
  • Page 23 VERTICAL CONTACT TOASTER NOTES P/N 1011287 Rev. E 02/18...

  • Page 24: Limited Warranty

    This warranty does not cover Travel Time & Mileage in excess of 2 hours (100 miles/160 km) round trip from the nearest authorized service agency. 2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
