Summary of Contents for Antunes VCT-2

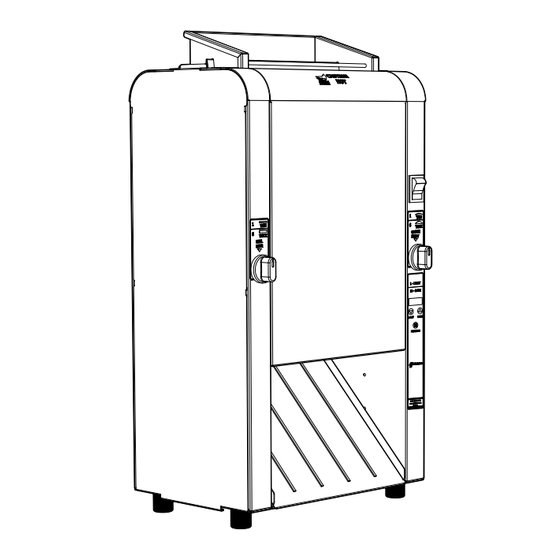

- Page 1 ® Mini Contact Toaster Model VCT-2 Owner’s Manual Manufacturing Numbers: 9210907, 9210924 , 9210955 & 9210919 Original Instructions www.antunes.com P/N 1011275 Rev. K 03/21 CAUTION: Read all instructions before using the unit.
-
Page 2: Table Of Contents
Damage from tampering with, removal of, or changing any preset control or safety device. IMPORTANT Antunes reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously pur- chased equipment. -
Page 3: Important Safety Information
Routine cleaning should be serviced by qualified personnel y If a chemical cleaner is used, only. Contact Antunes Technical done daily with soap, ammonia be sure it is safe to use on cast detergent, and water. -
Page 4: Specifications
(254 mm) 13” (330.2 mm) 25.5” (647.7 mm) Model & Plug Volts Watts Amps Hertz Mfg. No. Description 9210907 VCT-2 (Belt Wraps) 9210924 VCT-2 (Belt Wraps & 5-15P 15 Amps., 120 w/ Knobs 1800 50/60 V., Non-Locking Cover) (assembly only) -
Page 5: Installation
Wring out before use. NOTE: If any parts are missing or damaged, contact Install the Bun Feeder and Bun Antunes Customer Service Chute onto the unit (Figure 1). IMMEDIATELY at +1-877-392- Refer to the section titled Installing 7856 (toll free). -
Page 6: Installing The Release Sheet
Installing the Release Sheet The Release Sheet allows buns to pass through the toaster without sticking. The Feeder toaster should never be operated without a clean Release Sheet installed. 1/2” Fold and crease edges of the Release Release Sheet as shown in Figure 4. Sheet Fold and crease Release Sheet Fold... -
Page 7: Operating Instructions
Operating If Product is Stuck Inside 4. The unit displays the USE message when it reaches proper Toaster Instructions operating temperature (in approximately 10 minutes). If buns or a bread slice gets stuck NOTE: If the toasting quality needs inside the toaster, use the platen tool to adjustment, refer to the section dislodge it from the toaster. -
Page 8: Adjusting Toast Quality
Adjusting Toast Quality Shutting down the Toaster Errors The unit can be adjusted to provide a The toaster displays any kind of error To turn the toaster off, turn the Power lighter or more darkly toasted product. message, contact the factory immediately switch to the off position. -
Page 9: Maintenance
Maintenance Repeat Steps 1 through 6 on the inside portion of the Release Sheet. Set the clean Release Sheet aside. Daily Maintenance Cleaning the Belt Wraps WARNING Open the front and rear Conveyor The unit will remain hot while it is Covers (Figure 10) cooling down. -
Page 10: Weekly Maintenance
Weekly Maintenance NOTE: Platen cleaning tool and scrub pad are sold separately 14. Scrub each side of toasting platen The following weekly maintenance is (kit: 7001126) gently with rinsed scrub pad to recommended only when buttering buns remove Sizzle residue. Continue prior to toasting them: rinsing scrub pad and scrubbing platen gently until all residue has... -
Page 11: Monthly Cleaning
Monthly Cleaning Remove both Belt wraps if present- Use a clean, nylon brush to remove The monthly preventative maintenance lift the flap on the Belt Wrap and all debris and residue from the steps include: disconnect the Belt Wrap Hooks Conveyor Belt Chains. - Page 12 toaster under the support rods and Checking the Conveyor Belt Chains making sure the flap is pointing Tension down. Set the Bun Thickness Compression Connect the Belt Wrap hooks to the Knobs to 6 and 6 and ensure both Conveyor Belt Chain (Figure 19) Belt Wraps are removed.
-
Page 13: Quarterly Cleaning
Quarterly Cleaning NOTE: Make sure the Belt Wraps are installed under the support The Quarterly Cleaning involves cleaning rods. the interior of the unit. 11. Close the Conveyor Covers. Turn the unit off, unplug the power 12. Reinstall the Release Sheet, Bun cord and allow the unit to cool down. - Page 14 Replacing the Belt Wraps (Mfg. No. 9210907 Only) Bun Feeder The frequency of Belt Wrap replacement depends on usage and daily mainte- nance. We recommend replacing Belt Wraps Quarterly for optimal performance. NOTE: Belt Wraps should feel sticky/ tacky not slick/slippery. Chute Turn the unit off, unplug the power cord, and allow the unit to cool down.
-
Page 15: Troubleshooting
No Control Display person, or authorized service provider. Power Switch not turned on or is faulty. Turn the unit off and then on again. If the problem persists, Contact Antunes technical service, your maintenance person, or authorized service provider. Faulty Transformer Conveyor Belt/Chain has stretched. -
Page 16: Wiring Diagram
Wiring Diagram P/N 1011275 Rev. K 03/21 ®... - Page 17 Power Switch Hex Nut Hex Nut For mounting For mounting Relay Board Relay Board Terminal Terminal Block #2 Block #3 Terminal Block #1 Transformer RELAY BOARD P/N 1011275 Rev. K 03/21 ®...
-
Page 18: Replacement Parts
(See Exploded diagram) 2100230 Bumper, Recess W/Washer Note 2100348 Knob, 1/4” Shaft, Push-On Use only genuine Antunes replacement parts in this unit. 2110127 Ring, Retaining Use of parts other than those supplied by the manufacturer 2120107 Spacer, Aluminum will void the warranty. - Page 19 Rivet, Semi Tubular-3/16” 7000989 Sheet, Platen (Pk of 2) 7001168 Sheet, Platen (3 Pk - 9210919 ONLY) 7001169 Sheet, Platen (10 Pk - 9210919 ONLY) Cleaning Tool Kit VCT-2 (9210919 7001126 ONLY) 7001115 Idler Sprocket Replacement Kit 7001372 Relay Board Kit...
-
Page 20: Exploded Diagram 1
Replacement Parts Exploded Diagram 1 Cleaing Tool is NOT included. P/N 1011275 Rev. K 03/21 ®... -
Page 21: Exploded Diagram 2
Replacement Parts Exploded Diagram 2 (Included in Kit 7001115) P/N 1011275 Rev. K 03/21 ®... -
Page 22: Exploded Diagram 3
Replacement Parts Exploded Diagram 3 74 44 P/N 1011275 Rev. K 03/21 ®... -
Page 23: Exploded Diagram 4
Replacement Parts Exploded Diagram 4 P/N 1011275 Rev. K 03/21 ®... -
Page 24: Limited Warranty
Travel Time & Mileage in excess of 2 hours (100 miles/160 km) round trip from the nearest authorized service agency. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations. Changes to update equipment do not constitute a warranty charge.
