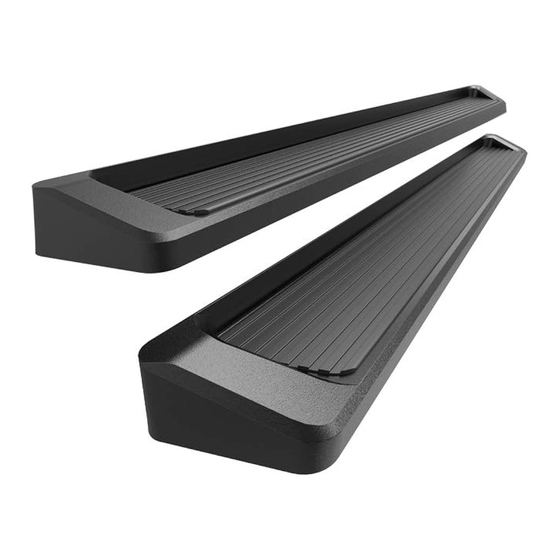

iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
iBoard
1#
2#
2#
2#
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
1
®
PART#: IB-R097/R098
Required
6-7
16-18
31-32
56-58
92-94
1#
2#
2#
2#
Rev. 20220301
√
√
X
X
X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for APS iBoard IB-R097
Summary of Contents for APS iBoard IB-R097

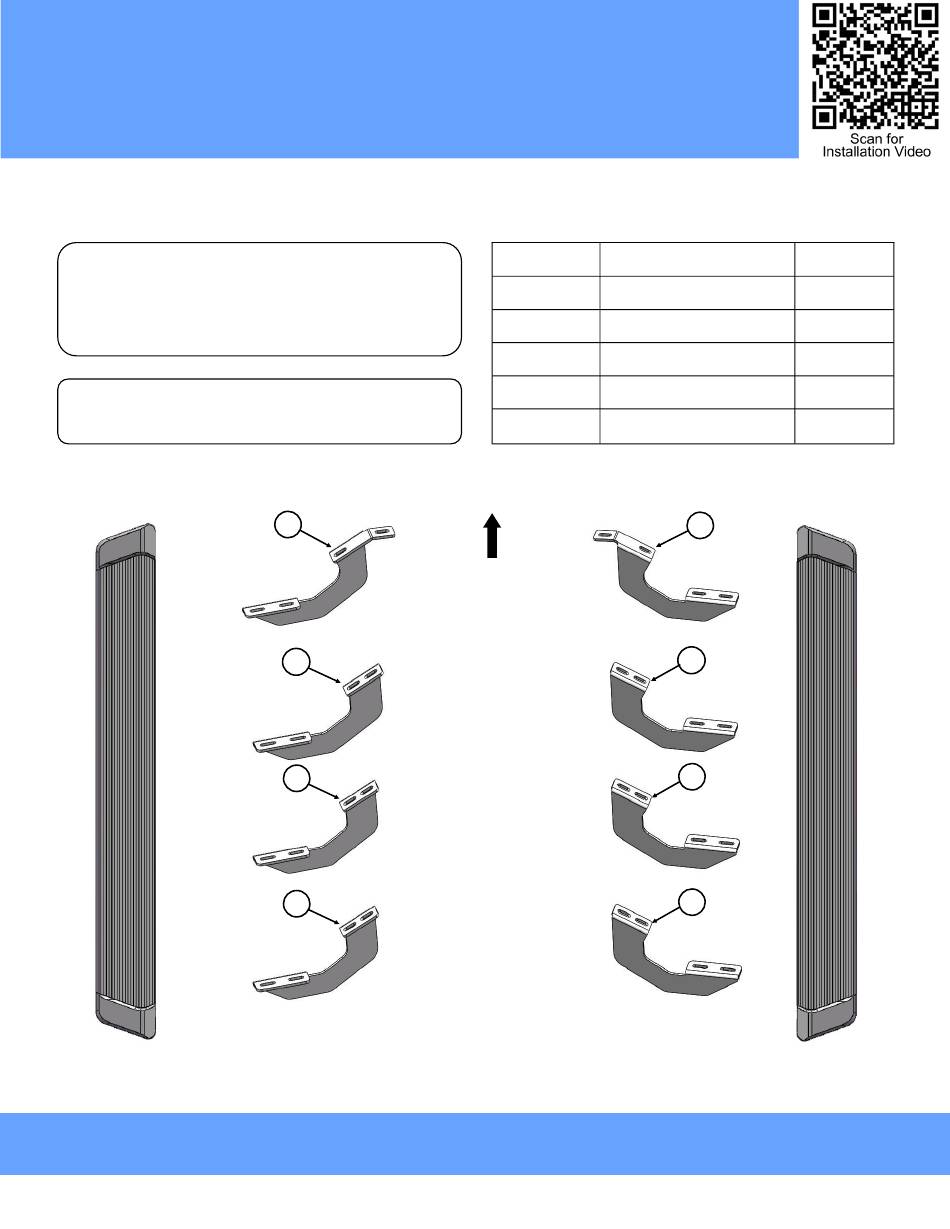

- Page 1 ® ® iBoard by APS PART#: IB-R097/R098 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
- Page 2 iBoard ® Hardware Package A (For Bracket Installation) Item Description Item Description Driver/Passenger Front Mounting Brackets M8 Flat Washers Mounting Brackets M8 Lock Washers M8Χ1.25-30mm Hex Bolts Hardware Package B (For Step Bar Installation) Item Description Item Description M6X1-20mm Square Head Bolts M6 Nylon Lock Nuts M6 Large Flat Washers Customer Support: info@iboardauto.com...
- Page 3 iBoard ® STEP 1 STEP 2 Start installation from the driver side of the vehicle. Select the Driver Front Mounting Bracket. Attach the Bracket to the vehi- Move to the driver side center, center 1 and rear mounting loca- cle using the included (2) M8x1.25-30mm Hex Bolts, (2) M8 tions.
- Page 4 iBoard ® STEP 3 STEP 4 Once all (4) mounting brackets are installed. Select a Running Board. Slip (4) M6X1-20mm Square Head Bolts into each bot- Level and adjust the Running Board and fully tighten all hard- tom channel (Fig 2). Carefully position the Running Board onto ware.
