iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*DRILLING IS REQUIRED

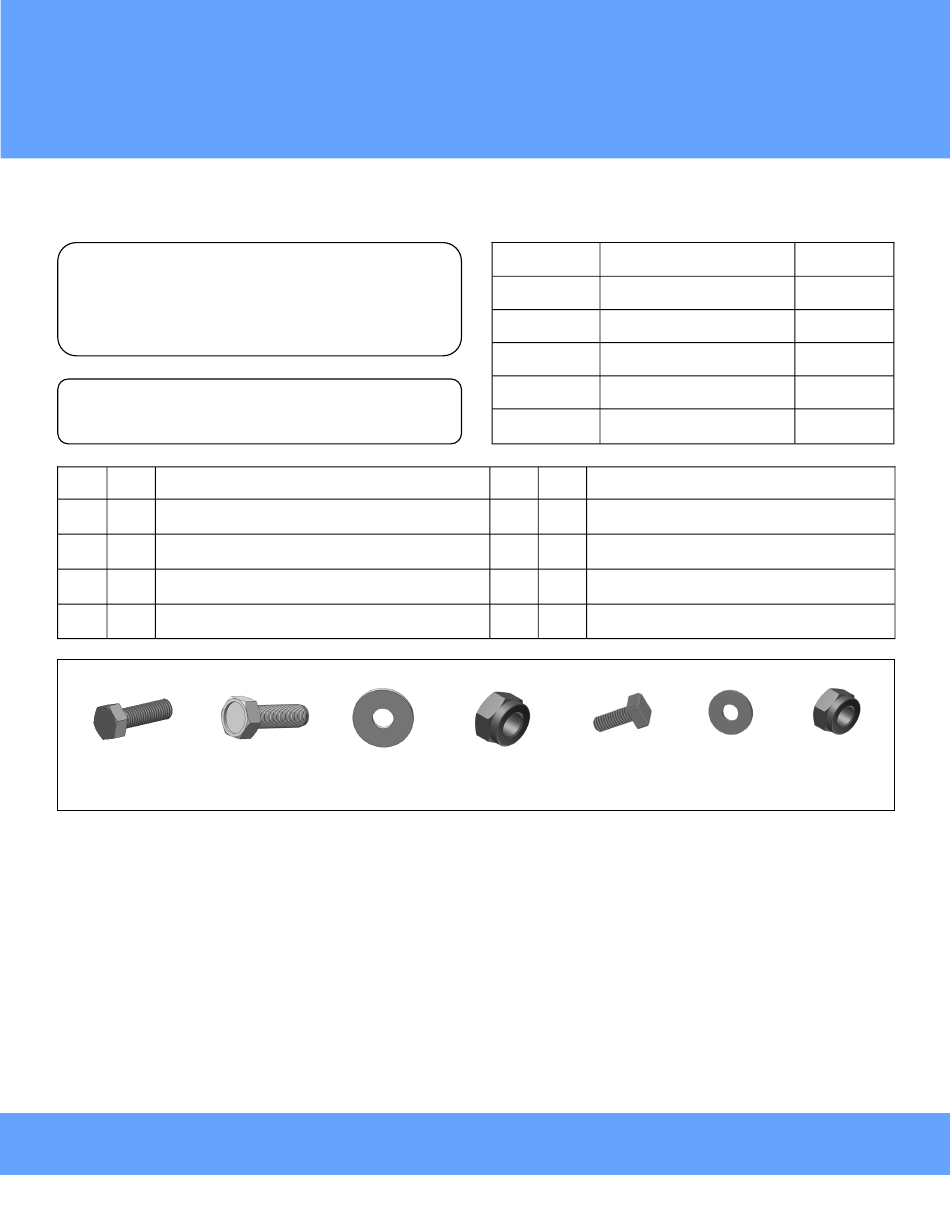

Item
QTY
1#
8

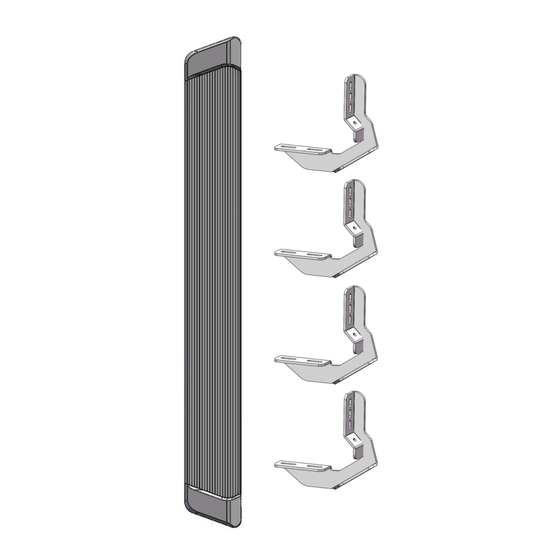

Mounting Brackets
2#
8
M8X1.25-20mm Hex Bolts
3#
24
ST6.3-25mm Hex Self Tapping Screws
4#
16
M8 Flat Washers
2 #
iBoard
Description
4 #
3 #
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
M8 Nylon Lock Nuts
5#
8
M6X1-20mm Square Head Bolts
6#
16
7#
16
M6 Large Flat Washers
8#
16
M6 Nylon Lock Nuts
6 #
5 #
1
®
PART#: IB-R004
Required
6-7
16-18
31-32
56-58
92-94
Description
7 #
Rev. 20211001
√
√
X
X
X
8 #
Advertisement
Related Manuals for APS iBoard IB-R004
Summary of Contents for APS iBoard IB-R004
- Page 1 ® iBoard ® iBoard by APS PART#: IB-R004 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
- Page 2 ® iBoard Front Driver Passenger Customer Support: info@iboardauto.com Rev. 20211001...
- Page 3 ® iBoard STEP 1 Starting on the Driver side of the vehicle. Attach (1) Mounting Bracket to the rocker panel with (3) ST6.3-25mm Hex Self Tapping per bracket (Fig 1). Don’t fully tighten at this time. Screws Note: (8) Mounting Brackets Are Universal. (3) ST6.3-25mm Hex Self Tapping Screws (Fig 2) Driver Side Pinch Weld Mounting Holes...
- Page 4 ® iBoard STEP 6 (2) M6X1-20mm Square Head Bolts (2) M6 Large Flat Washers (2) M6 Nylon Lock Nuts Repeat Steps 1-5 for the other side Running Board installation. The installation is completed . (Fig 4) Running Board Installed Onto Mounting Bracket Attention STEP 5 Do periodic inspections to the installation to make...
