READ INSTRUCTIONS CAREFULLY BEFORE
START ING INSTALLATION. REMOVE CONTENTS
FROM BOX AND VERIFY ALL PARTS ARE PRE-
SENT. ASSISTANCE IS RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED

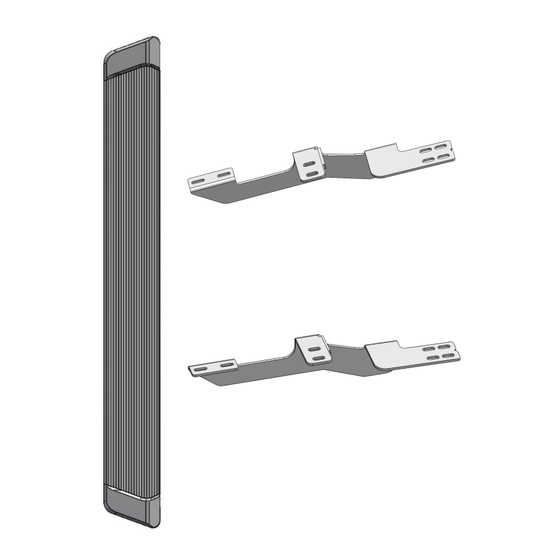

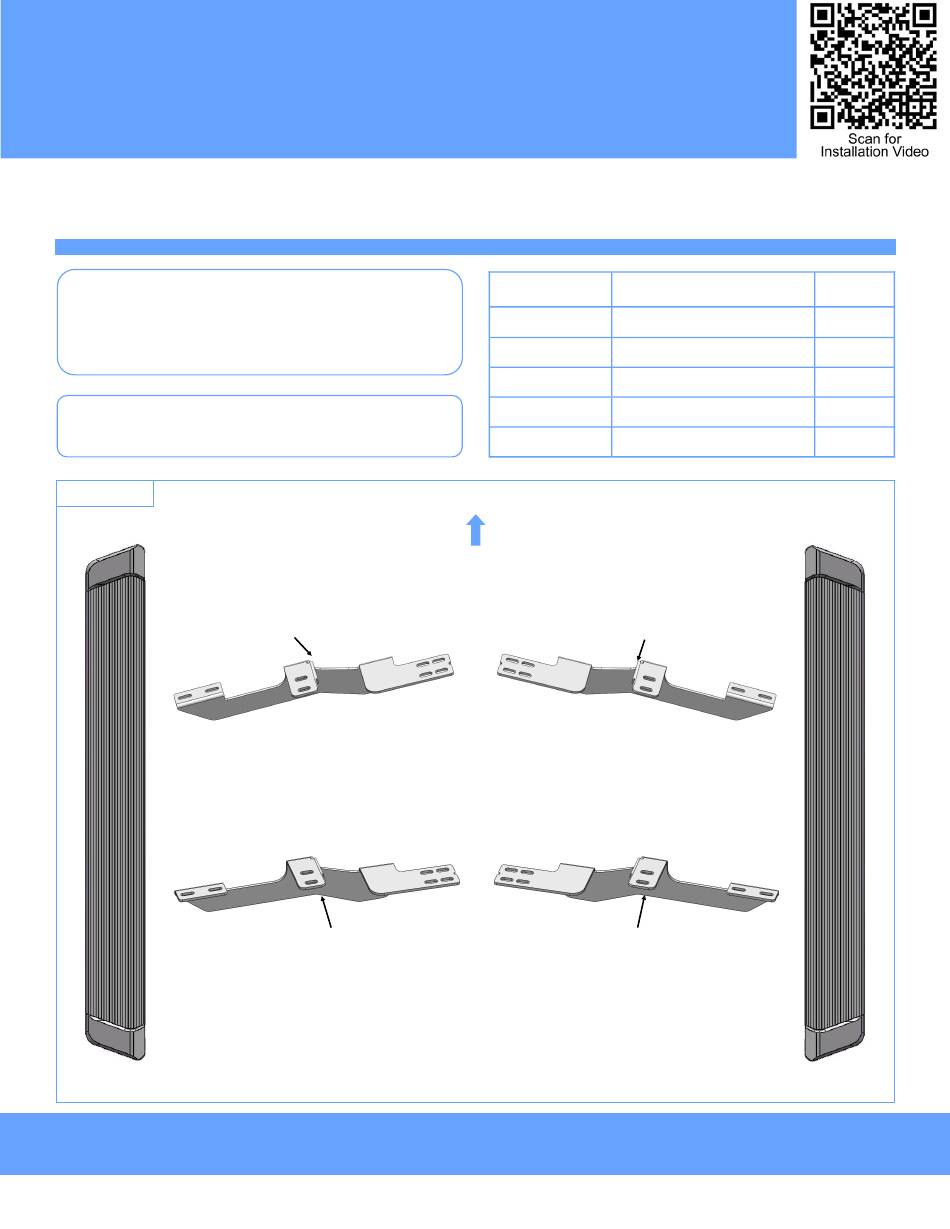

PART LIST
Driver Front Mount-
ing Bracket (DFM)
iBoard
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
Passenger Rear Mounting
Bracket (PRM)
1
®
PART#: IB-R062
6-7
16-18
31-32
56-58
92-94
Passenger Front
Mounting Bracket
(PFM)
Rev. 20220801
Required
√
√
X
X
X
Advertisement
Table of Contents
Related Manuals for APS iBoard IB-R062
Summary of Contents for APS iBoard IB-R062
- Page 1 ® ® iBoard by APS PART#: IB-R062 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS √ FROM BOX AND VERIFY ALL PARTS ARE PRE- SENT. ASSISTANCE IS RECOMMENDED. 16-18 √ 10mm 31-32...
- Page 2 iBoard ® Hardware Package A (For Bracket Installation) Item Description Item Description M8X1.25-35 Hex Bolts M8 Lock Washers M8 Flat Washers M8X1.25 Hex Nut Hardware Package B (For Step Bar Installation) Item Description Item Description M6X1-20mm Square Head Bolts M6 Nylon Lock Nuts M6 Large Flat Washers Customer Support: info@iboardauto.com Rev.
- Page 3 iBoard ® STEP 1 (6) M8x1.25-35mm Hex Bolts (6) M8 Flat Washers (6) M8 Lock Washers (6) M8 Hex Nuts Start installation from the driver side front of the vehicle. From underneath vehicle, place driver side front bracket in position as shown in (Fig 1).
- Page 4 iBoard ® STEP 5 (2) M6X1-20mm Square Head Bolts (2) M6 Large Flat Washers (2) M6 Nylon Lock Nuts Repeat Steps 1-4 for the other side Running Board installation. The installation is completed. Attention (Fig 4) Running Board Installed Onto Mounting Bracket Do periodic inspections to the installation to make sure that all hardware is secure and tight.
