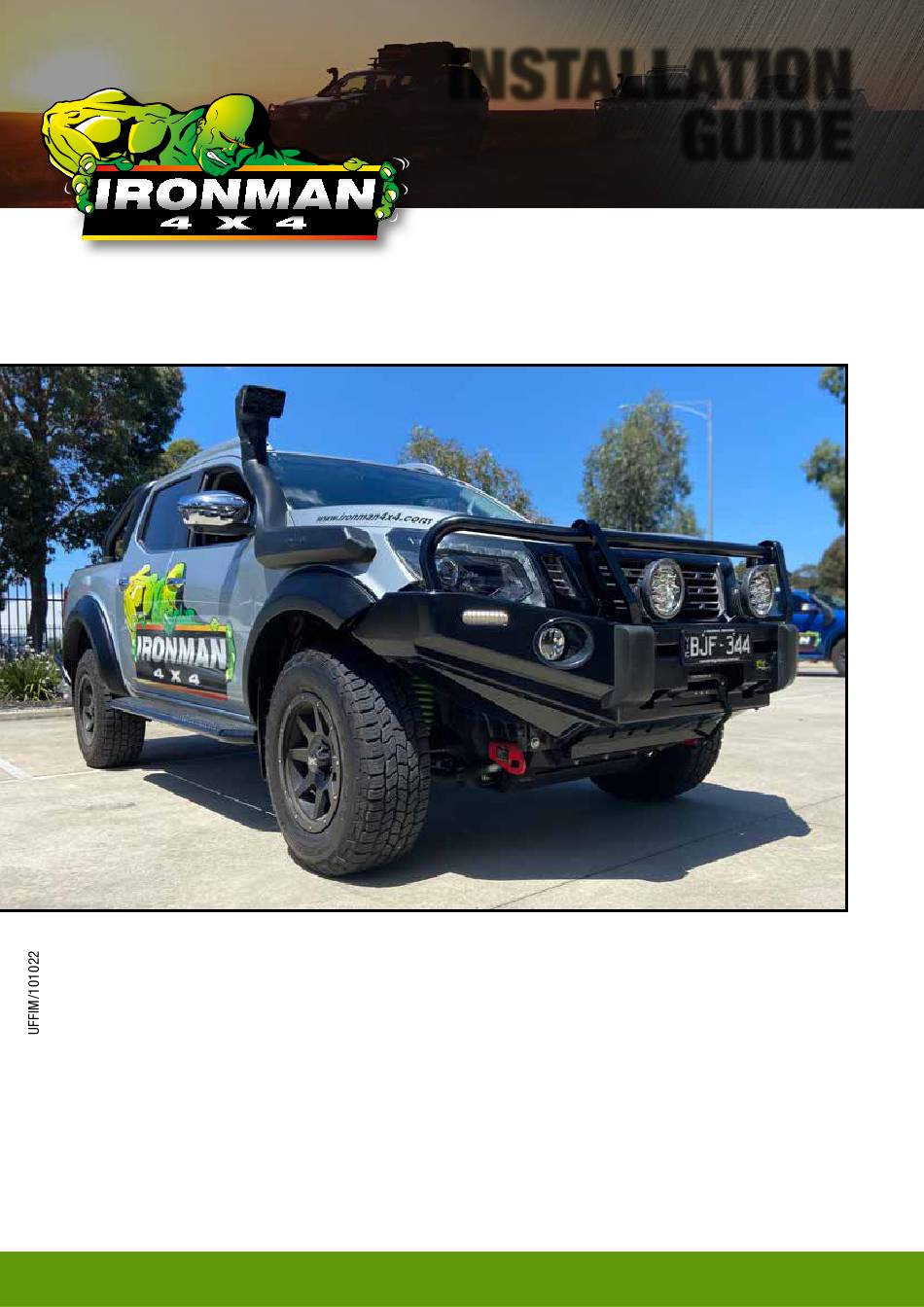

INSTALLATION
GUIDE
FENDER FLARES
Part Numbers:
IFF6054, IFF6054XLT, IFF6057, IFF6040, IFF6041, IFF6058, IFF6058, IFF6074, IFF6039I,
IFF6039, IFF6080, IFF6050, IFF6067, IFF6002, IFF6051, IFF6065, IFF6076, IFF6049,
IFF6048, IFF6082, IFF60110WT, IFF60110XL
Care and Maintenance Instructions
To maintain the finish of the product, wash regularly using a PH neutral car wash, hose off
and chamois dry. Do not use acidic or alkaline cleaners.
The flares can be maintained with a silicon spray or similar (non-acidic or alkaline based).
Installation time: 2 hours
©Copyright 2022 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ironman4x4 IFF6054
Summary of Contents for Ironman4x4 IFF6054
- Page 1 INSTALLATION GUIDE FENDER FLARES Part Numbers: IFF6054, IFF6054XLT, IFF6057, IFF6040, IFF6041, IFF6058, IFF6058, IFF6074, IFF6039I, IFF6039, IFF6080, IFF6050, IFF6067, IFF6002, IFF6051, IFF6065, IFF6076, IFF6049, IFF6048, IFF6082, IFF60110WT, IFF60110XL Care and Maintenance Instructions To maintain the finish of the product, wash regularly using a PH neutral car wash, hose off and chamois dry.
-
Page 2: Parts List
Installation Guide Parts List 1. Right Hand Front Flare 2. Left Hand Front Flare 3. Right Hand Rear Flare 4. Left Hand Rear Flare QTY-1 QTY-1 QTY-1 QTY-1 5. Right Hand Lower 6. Left Hand Lower Flare 7. Mounting Kit Flare QTY-1 QTY-1... - Page 3 Installation Guide Clean the car surface where the flare will be installed, paying close attention to cleaning the area that supports the adhesive tape adhesion. 3M adhesive tape will not adhere well to a car surface that has greasy stains or car polish. Start the installation on the front right flare by first placing the flare into the position to be installed.
- Page 4 Installation Guide Remove factory screws for both the mud flap and inner guard liner. Prepare flare by removing a small portion of 3M protective cover. Attach masking tape as a tail for easement of fitting. Anchor the flare to its original position without tighting the screw completely, so that the flare can move and adjust into its position.
- Page 5 Installation Guide Once happy with the position, tighten screws (including added drilled screws if needed). Remove the 3M adhesive tape along the flare. When the tape is completely removed, use a fabric rag, and press the area where the 3m tape is attached firmly against the car.
- Page 6 Installation Guide 11. Use a wet rag to wipe off the excess silicone. 12. Once silicone seller is applied to all 4 corners, peel off the tape. It is recommended not to wash the car or spray any silicone spray for 2 days after installation.
- Page 7 Installation Guide NOTE: The flares unfortunately won’t work with vehicles fitted with brush bars. Customers will also need to check snorkel clearance as some brands of snorkels foul on the underside of the snorkel body as they sit on the swage line where the snorkel mounts. The flares can still be fitted but need to be trimmed to suit.
