Ironman4x4 ISNORKEL023 Installation Manual

To suit toyota landcruiser 70 series 2007+ 1hz and 1vd-ftv (with or without factory snorkel fitted)

Download this manual

1HZ and 1VD-FTV (With or Without Factory Snorkel Fitted)

•

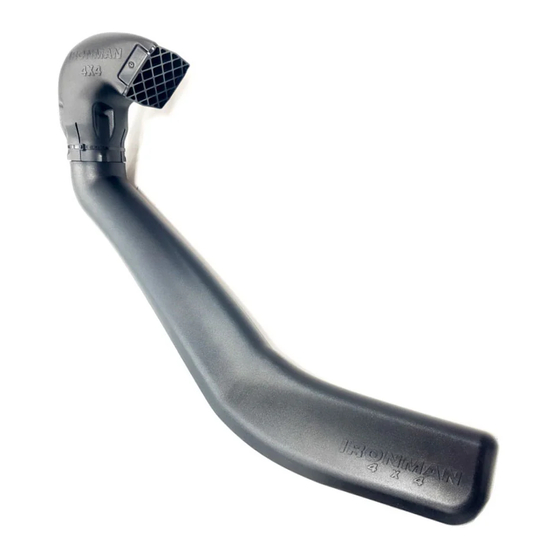

Ironman 4x4 Snorkel to suit Toyota Landcruiser 70 Series and fits to the right hand

side of the vehicle.

•

It will take about 3 hours to install.

•

Below is a list of some required tools for installing your Ironman 4x4 Snorkel:

Hole Saw (89mm)

Step Drill

Air Hacksaw

NOTE: Only use "sensor safe" sealant during installation

IMPORTANT: Snorkel installations should only be done by a qualified person

and it is the responsibility of this person to ensure correct and water tight fitment.

INSTALLATION

TO SUIT TOYOTA LANDCRUISER 70 SERIES 2007+

GUIDE

ISNORKEL023

Need help?

Do you have a question about the ISNORKEL023 and is the answer not in the manual?

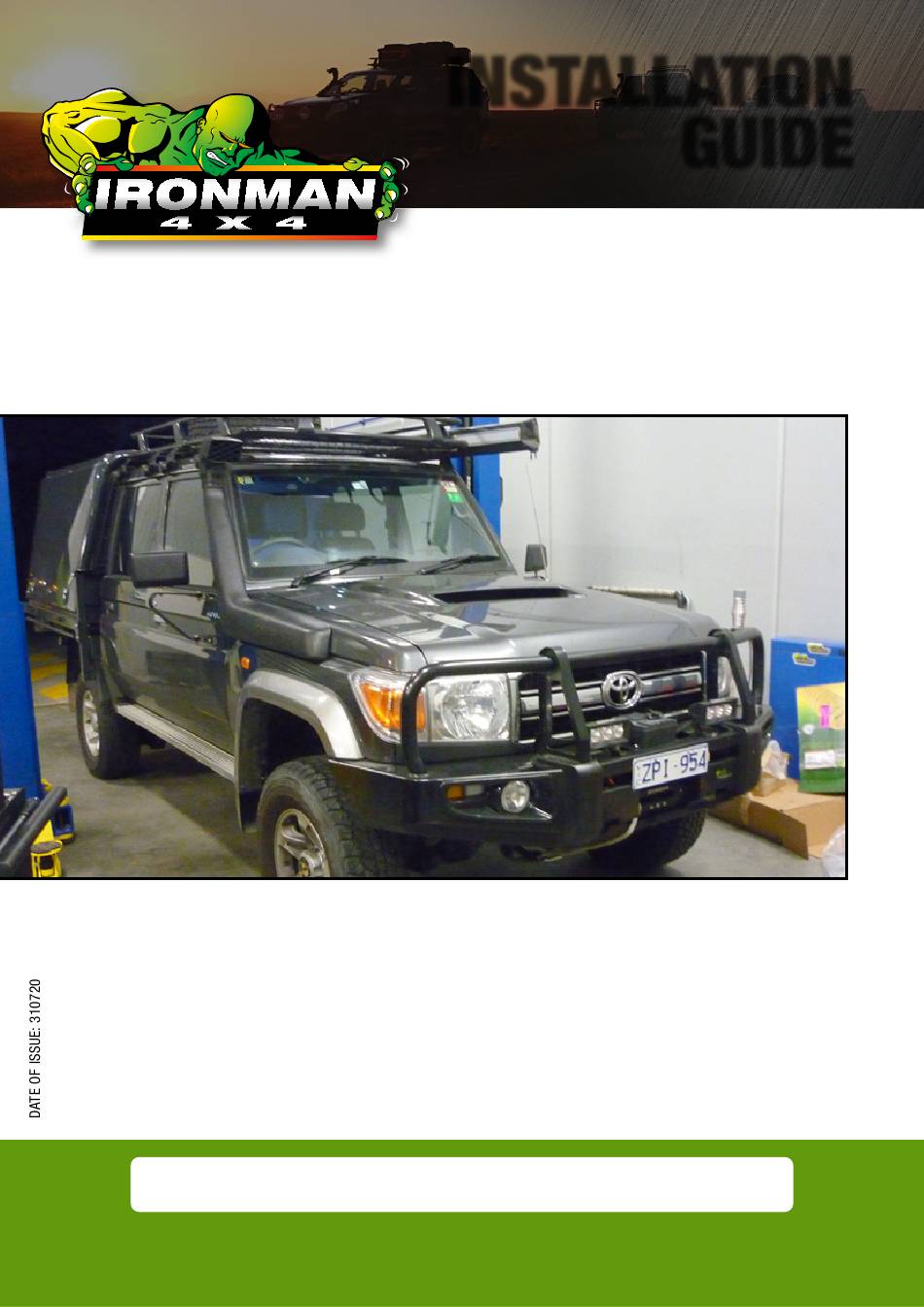

Page 1 INSTALLATION GUIDE ISNORKEL023 TO SUIT TOYOTA LANDCRUISER 70 SERIES 2007+ 1HZ and 1VD-FTV (With or Without Factory Snorkel Fitted) • Ironman 4x4 Snorkel to suit Toyota Landcruiser 70 Series and fits to the right hand side of the vehicle. •...
Page 2 Installation Guide ISNORKEL023 Before installation check snorkel application is compatible with your vehicle. Remove air box and air intake duct to air box. If applicable remove factory snorkel, Landcruiser badge and temporarily remove fuel filter and cover plate from inner guard.
Page 3 Installation Guide ISNORKEL023 Drill all mounting holes to 16mm. De-burr and rust-proof all holes (this applies to all holes drilled after this step). Apply rubber edging to large hole as shown. 10. Using thread lock, screw all mounting studs into snorkel.
Page 4 Installation Guide ISNORKEL023 12. Remove snorkel body from mudguard and drill upper mounting holes to 7.5mm. De-burr and rust proof holes. Apply silicone to holes and insert mounting plugs. 13. Attach snorkel to vehicle using M8 Nyloc nuts, body washers and self tapping screws for pillar bracket.
Page 5 Installation Guide ISNORKEL023 17. Check all connections and air box are air and water tight, seal as required. 18. Fit Ironman 4x4 Air Ram and secure with hose clamp provided. Page 5 of 5 ©Copyright 2020 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...
