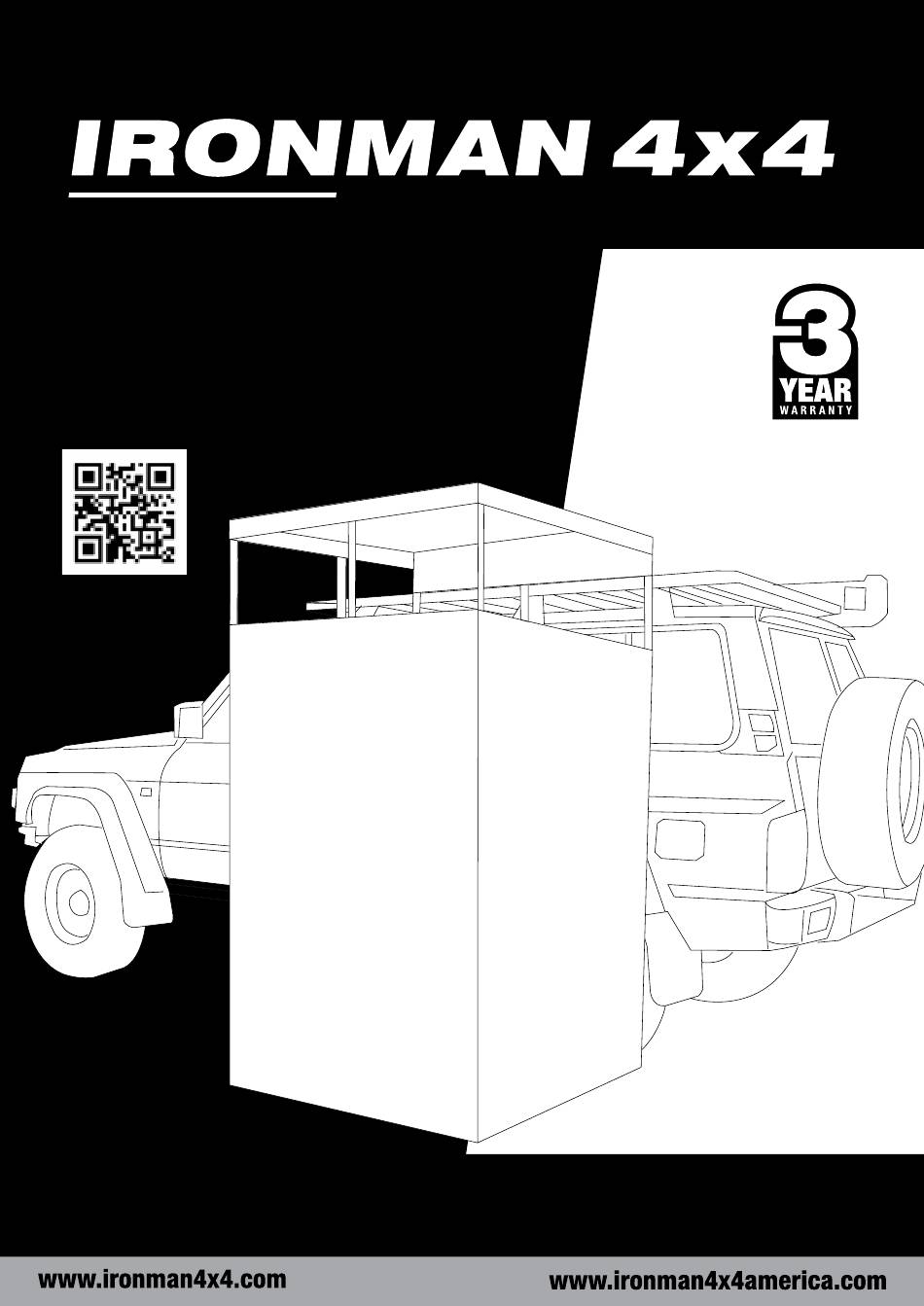

- Page 1 DELTAWING ENSUITE Deltawing Ensuite Owner’s Manual IMPORTANT: Please read all procedures and precautions before using this Ironman 4x4 Product. If you have any questions please contact our customer service department. 1 of 6...
-
Page 2: Safety Warning
Prolonged use on rough and corrugated terrain will require more regular inspections. STRUCTURAL INTEGRITY: The Deltawing Ensuite is self-supporting and designed for general camping under normal conditions. We recommend the supplied pegs are used to provide additional support when in use. -
Page 3: Cleaning And Storage
Your ensuite is designed to be mounted directly to your roof rack or aftermarket roof bars and can be set up in just a few minutes. The Deltawing Ensuite is made using the best possible materials and construction methods, providing excellent protection from the elements. - Page 4 Attach washers and loosely secure in place using Nyloc nuts. Step 4: Slide brackets along the backing plate track to the desired position and mount to the vehicle using washers and Nyloc nuts. Tighten all nuts. 4 of 6 www.ironman4x4.com...
- Page 5 DELTAWING ENSUITE Setting Up Your Ensuite Step 1: Unzip the protective cover and fold back from the ensuite. Step 2: Undo the Velcro straps, releasing the fabric and carefully allowing to roll down. Step 3: Swing the upper arm from the ensuite body to the left.
- Page 6 Step 6: Determine the height you require for privacy and lengthen or shorten the cam-lock straps to suit. Step 7: Secure the base at all four (4) corners through the loops at the base using pegs supplied. 6 of 6 www.ironman4x4.com...
- Page 7 DELTAWING ENSUITE Packing Up Your Ensuite Step 1: If time permits, allow the ensuite material to fully dry out before packing away. If this is not possible, we strongly suggest setting the ensuite up again to thoroughly dry out before any long- term storage to prevent damage to the material and mechanisms.
-
Page 8: Warranty
The warnings, cautions and instructions for use contained in this document cannot cover every possible situation, so it is understood by the operator that common sense and caution must be applied. It is your responsibility to pass these instructions on to any third party who uses this product, including second-hand sales. www.ironman4x4america.com www.ironman4x4.com...
