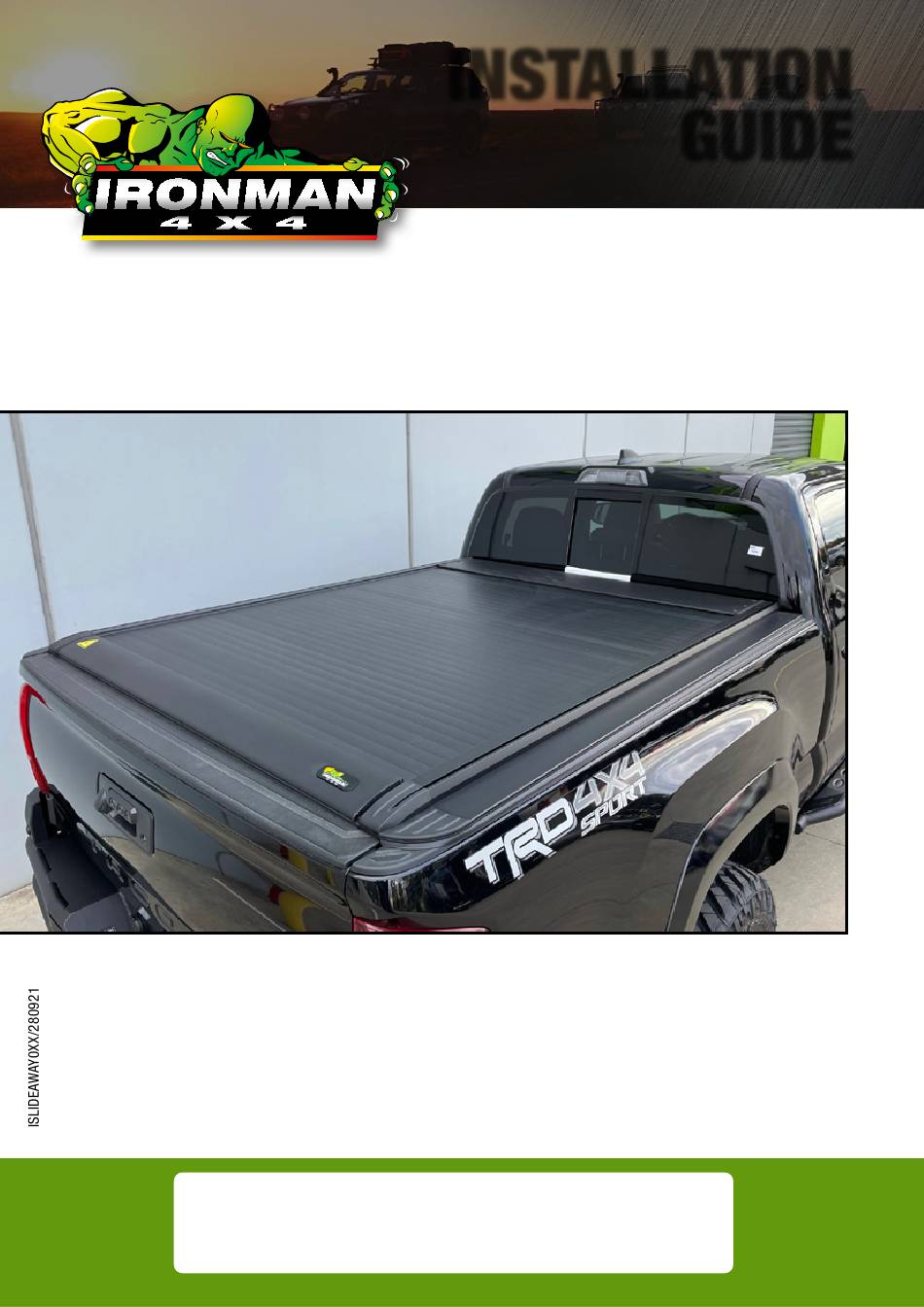

INSTALLATION
GUIDE
SLIDE-AWAY
ROLL AWAY HARD TONNEAU
NOTE: Although Ironman 4x4 take every possible
measure to prevent water and dust from entering
the cargo area, we cannot be held accountable for holes
and gaps in your factory tub
©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLIDE-AWAY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironman4x4 SLIDE-AWAY

Summary of Contents for Ironman4x4 SLIDE-AWAY

  • Page 1 INSTALLATION GUIDE SLIDE-AWAY ROLL AWAY HARD TONNEAU NOTE: Although Ironman 4x4 take every possible measure to prevent water and dust from entering the cargo area, we cannot be held accountable for holes and gaps in your factory tub ©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...

  • Page 2: Parts List

    Installation Guide SLIDE-AWAY Parts List Main Drum Assemblies Side Tracks Top Cover Positioning Bar Drain Tubes Qty: 1 Qty: 2 Qty: 1 Qty: 1 Qty: 4 Adhesive Foam Tape Bolts with Screw Washer Rubber Cover for Front Drain Tube Rubber...
  • Page 3 Installation Guide SLIDE-AWAY Before installation check the product is compatible with your vehicle make, model and year. Open the carton and unpack the contents It is recommended to lay out the contents to make it easier to find during installation...
  • Page 4 Slide-Away on the vehicle. Page 4 of 15 ©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...
  • Page 5 Installation Guide SLIDE-AWAY Install A8 rubber covers into the front of each track. NOTE: Notch in the rubber cover matches the slot in the track. Pull track forward at least two slats. Using a 5mm hex key, remove the clutch protection plate. This can be found above the label on the left hand side of the drum assembly.
  • Page 6 Installation Guide SLIDE-AWAY Attach side tracks to main drum. Align slot in bottom of side track with the locator on the end of the main drum. Start sliding track on, but do not pull all the way back. Check the end of the sliding cover.
  • Page 7 Installation Guide SLIDE-AWAY Secure side tracks to main drum. For this step, it may be best to rest the main drum with loosely attached side tracks on its end. Insert 6x fasteners - 3 per side - from pack B2.
  • Page 8 Snap in a plastic cap over the top. Before proceeding, check Step 11. Consider drilling drain holes at the front of the tub now while the Slide-Away can be easily moved. Page 8 of 15 ©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...
  • Page 9 Installation Guide SLIDE-AWAY 10. Lift drum and side track assembly onto vehicle. THIS IS A MINIMUM TWO PERSON JOB. CHECK THAT - the unit is sitting square on the vehicle’s tub. - the rubber lips on the side tracks are not caught up.
  • Page 10 Installation Guide SLIDE-AWAY 11. Attach Tub Brackets. Slide M6x25 mm T-Bolts (B8) into the underside of the side tracks. Attach the L-bracket with the long slot to the T-bolt, and loosely secure with a M6 nut using a 10mm spanner. (A11, A14, or...
  • Page 11 Installation Guide SLIDE-AWAY 12. Install Drain Tubes NOTE - Consider positioning of drain tubes in relation to items that will be loaded into the tub, so as not to create snag points. Attach using hose clamps (A10) the small drain tubes (A5) to rear of the tracks, and the large tubes to the underside of the drum.
  • Page 12 If connected, find an appropriate position in the dash (or other location INSIDE the cabin), and mount the button. Route wiring back to the Slide-Away main drum, and connect to the plug. Yellow Wiring Loom At present, the yellow wiring loom’s functions are not supported.

  • Page 13: Clutch Operation

    Installation Guide SLIDE-AWAY Clutch Operation To disengage (manual operation) 1) Undo the two screws with a 5mm hex key, and remove the plate. 2) Using a flat-bladed screwdriver, rotate the screw counterclockwise 3-4 times. The cover can now be operated by hand, and is not locked.
  • Page 14 Installation Guide SLIDE-AWAY Remote Controller Function Instructions LED Indicator Light Close Tonneau Cover Open Tonneau Cover Turn On Tub Interior Light Turn Off Tub Interior Light Buttons Name Description 1. Press the button to start closing the Tonneau Close Tonneau Cover if it is in static mode.

  • Page 15: Maintenance

    (battery model: CR2016). 6. To keep the Slide-Away in tip-top condition, we recommend washing it the same as caring for your vehicle’s finish. A lack of proper cleaning and maintenance can affect the operation of the product and reduce its life.
