3.0L Turbo Diesel Intercooled
•

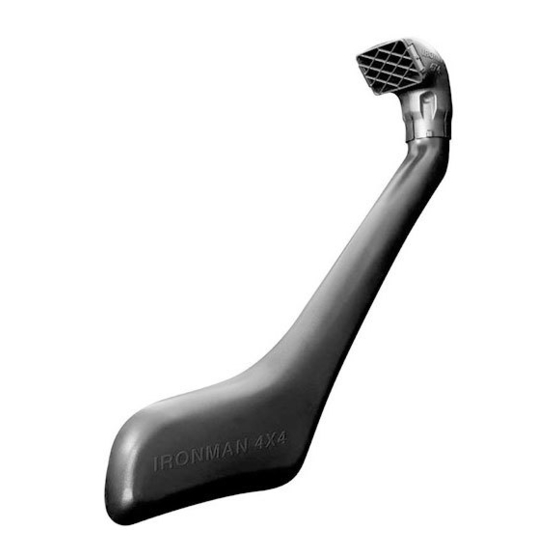

I ronman 4x4 Snorkel fits to the left hand side of the
Ford Ranger.
•
It will take about 3 hours to install.
•
B elow is a list of some required tools for installing
your Ironman 4x4 Snorkel:
-
Hole Saw (95mm)
-
Step Drill
-
Air Hacksaw
-
Pop-Rivet Gun
NOTE: Only use "sensor safe" sealant during installation
IMPORTANT: Snorkel installations should only be done by a qualified person and it is the
responsibility of this person to ensure correct fitment and to ensure the installation is water tight.
INSTALLATION
ISNORKEL021
FORD RANGER
GUIDE
Advertisement
Table of Contents
Related Manuals for Ironman4x4 ISNORKEL021
Summary of Contents for Ironman4x4 ISNORKEL021
- Page 1 INSTALLATION GUIDE ISNORKEL021 FORD RANGER 3.0L Turbo Diesel Intercooled • I ronman 4x4 Snorkel fits to the left hand side of the Ford Ranger. • It will take about 3 hours to install. • B elow is a list of some required tools for installing your Ironman 4x4 Snorkel: Hole Saw (95mm) Step Drill Air Hacksaw Pop-Rivet Gun NOTE: Only use “sensor safe” sealant during installation IMPORTANT: Snorkel installations should only be done by a qualified person and it is the...
- Page 2 Before installation check snorkel application is compatible with your vehicle. Remove left hand front mudguard liner, air cleaner assembly and Ranger badge. Apply masking tape to left hand front mudguard. Tape template to mudguard making sure it is lined up with top of mudguard (bonnet opening) and rear of mudguard (door opening).
- Page 3 De-burr and rust-proof all holes (this applies to all holes drilled after this step). Open left hand front door and carefully remove front section of door rubber and plastic trim from windscreen pillar. Using thred lock, screw all mounting studs into snorkel body and attach pillar mounting bracket loosely to snorkel using M6 Bolts provied.
- Page 4 12. Drill holes for pillar bracket to 5mm and attach pillar bracket with pop rivets provided. 13. Apply masking tape to plastic trim removed in Step 8. Hold trim in position on pillar, mark location of pillar bracket onto plastic trim and remove trim from pillar.
- Page 5 16. Refit plastic trim to pillar allowing bracket to pass through slot craeted in previous step (enlarge slot to clear bracket if required). Refit door rubber. 17. Remove intake duct from air cleaner housing. 18. Position air cleaner adaptor over air cleaner intake and drill two mounting holes to 5mm.
- Page 6 21. From under mudguard, fit rubber joiner to air cleaner adaptor and secure in place with hose clamp. 22. Attach snorkel body to mudguard using M8 Nylcok nuts and Bowdy washers, making sure snorkel outlet engages with rubber joiner and secure with hose clamp.
