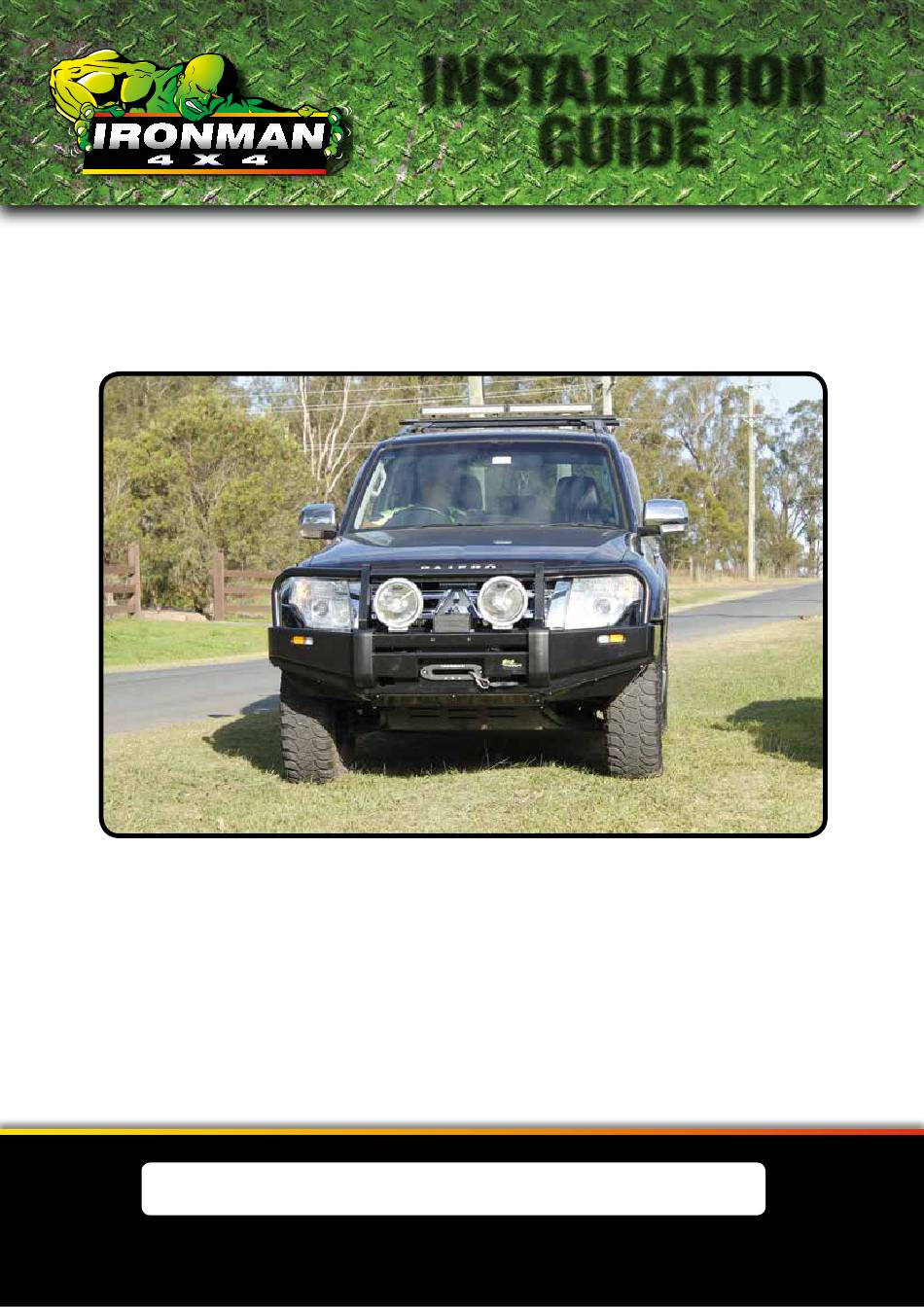

BBT045/ BBC045/ BBCD045
•

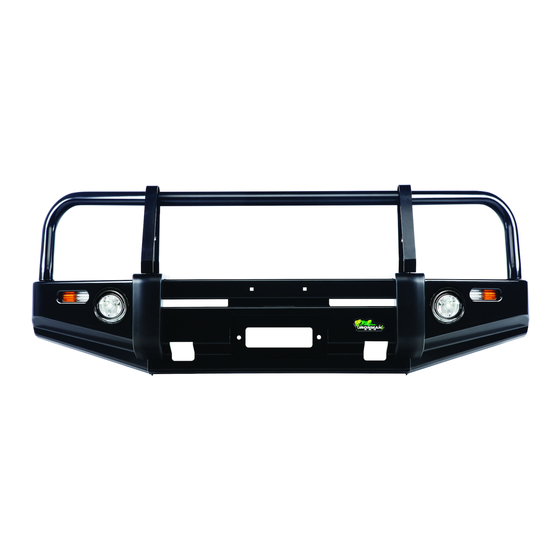

Ironman 4x4 BBT/ BBC/ BBCD045 Bull Bars
fit to a NW Pajero.
•
It will take about 3 hours to install.
NOTE: This product has been tested for air bag compatibility
and therefore the mounting system MUST NOT be modified
IMPORTANT: Bull Bar installations should only be done by a qualified
person and it is the responsibility of this person to ensure correct fitment.
INSTALLATION
GUIDE
NW PAJERO
(2011 - )
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ironman4x4 BBT045
Summary of Contents for Ironman4x4 BBT045
- Page 1 INSTALLATION GUIDE BBT045/ BBC045/ BBCD045 NW PAJERO (2011 - ) • Ironman 4x4 BBT/ BBC/ BBCD045 Bull Bars fit to a NW Pajero. • It will take about 3 hours to install. NOTE: This product has been tested for air bag compatibility...
- Page 2 Before installation check bull bar application is compatible with your vehicle. Remove number plate and grill and radiator protection plate and store in a safe place for later re-fitment. Locate and cutout cutting template at the end of this Instruction Guide. Mask outer ends of bumper bar and place cutting template in position as shown.
- Page 3 Mask a cut line across the bumper from the lines previously marked, above the foglight openings and below the original numberplate mounting. Only make cut after removing bumper bar Remove bumper bar. Cut bumper bar to remove lower section. 10. If winch is being installed, remove section of bumper bracket as marked in photo Page 3 of 11...
- Page 4 11. Place winch cradle in position on vehicle and secure in place with strengthening plates as shown (do not tighten) 12. Using strengthening brackets as a guide, drill through sub frame and secure in place using long bolts, washers and nuts provided and tighten all mounting hardware.
- Page 5 14. Unwrap bull bar. Check over riders and light assemblies are tight in bull bar before installation. 15. Fit bull bar to chassis brackets using M12 bolts, flat washers, spring washers and nuts provided. 16. Align bull bar with vehicle and tighten all bolts. 17.
- Page 6 19. Fit protection plates underneath the bull bar using M8 bolts, spring washers and flat washers provided. 20. Trim guard liners and secure to radiator support panel with bolts and washers as shown. Page 6 of 11...
-
Page 7: Winch Installation
Winch Installation Before winch can be installed a section of the bumper bar will need to be removed. To do this, place winch on mounting cradle and mark bumper bar as shown. Bolt winch to cradle with gearbox to the left hand side of vehicle and cable spooling from bottom of the cable drum using bolts and washers provided. - Page 8 Connect three colour coded cables to the corresponding poles on winch motor. Connect the thin black earth wire and negative battery cable to the earth connection on the opposite side of winch motor. Run the positive and negative battery cables into the engine bay taking care to secure cables away from any sharp or moving objects.
-
Page 9: Wiring Diagrams
Wiring Diagrams PARK LIGHT & INDICATOR Park Light Indicator White Yellow Park Light Indicator Circuit Circuit Black Black Ground Ground FOG LIGHTS Ground Lamp Fuse Connector Relay Black Blue Battery Lamp Parklight Switch SPST Ground White Ground Page 9 of 11... - Page 10 PAGE 1/2 NW PAJERO 2011 - BBT045/ BBC045/ BBCD045 BULL BAR TEMPLATE...
- Page 11 PAGE 2/2 NW PAJERO 2011 - BBT045/ BBC045/ BBCD045 BULL BAR TEMPLATE...
