BBC067 / BBCD067 / BBA067 /
BBT067-NL / BBT067-SL / BBT067-TL
•

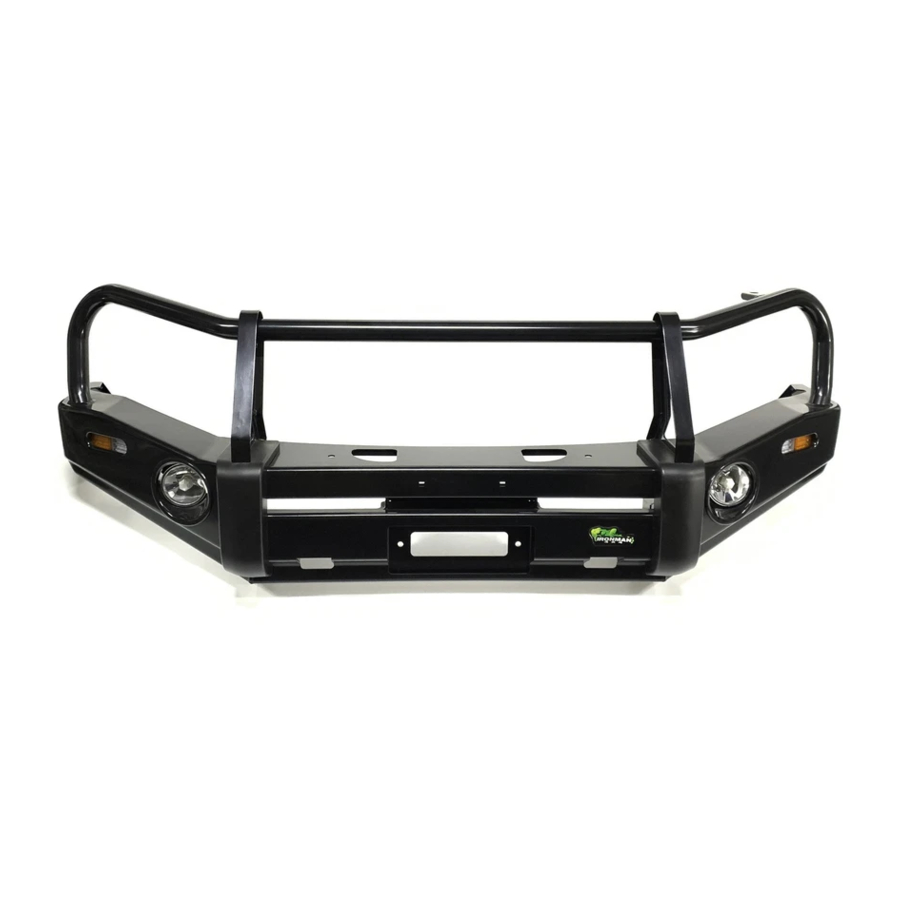

Ironman 4x4 BBC / BBCD / BBA / BBT067-NL / BBT067-SL / BBT067-TL Bull Bars fit
to a Mitsubishi MR Triton 11/2018+
•
It will take about 4 hours to install.
NOTE: This product has been tested for air bag compatibility
and therefore the mounting system MUST NOT be modified
IMPORTANT: Bull bar installations should only be done by a qualified person
©Copyright 2018 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
and it's the responsibility of this person to ensure correct fitment.
INSTALLATION
TO MITSUBISHI MR TRITON 11/2018+
GUIDE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ironman4x4 BBC067
Summary of Contents for Ironman4x4 BBC067
- Page 1 INSTALLATION GUIDE BBC067 / BBCD067 / BBA067 / BBT067-NL / BBT067-SL / BBT067-TL TO MITSUBISHI MR TRITON 11/2018+ • Ironman 4x4 BBC / BBCD / BBA / BBT067-NL / BBT067-SL / BBT067-TL Bull Bars fit to a Mitsubishi MR Triton 11/2018+ •...
- Page 2 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Before installation check bull bar application is compatible with your vehicle. Disconnect any bumper lights, sensors and cameras. Remove factory bumper bar, grill assembly and factory protection plate from under radiator.
- Page 3 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Drill holes using a 21mm hole saw, only through outer skin of chassis cross member. Drill a pilot hole using the centre drill bit of the hole saw through the inner skin as shown.
- Page 4 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Mount chassis support brackets to inner and outer faces of chassis using hardware provided. Do not tighten. Use trimmed washer for bolt on inside of tie down point. Insert crush tubes into holes previously drilled in front cross member.
- Page 5 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Reinstall mounting cradle to vehicle, centralise, insert and tighten all mounting hardware. 10. If fitting a winch, horns will need to be moved to the rear of the mounting cross member as shown.
- Page 6 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL 11. Remove grill and lights from bumper bar. Use supplied template to mark both sides of the bumper. Continue cut line straight across bumper bar as indicated. Mark triangle template over chrome sections as indicated.
- Page 7 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL 14. If applicable, fit camera to bull bar through hole located above winch fairlead, using supplied bolts and spacers. 15. Fit bull bar to mounting cradle using supplied M12 bolts, align...
- Page 8 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL 17. If applicable fit parking sensors, refer to page 10 for details. 18. TO FIT WASHER BOTTLE: Remove battery. Unclip factory wiring loom for washer pump and pull through into engine bay. Cut factory plug off the loom and crimp spade terminals supplied onto the wires.
- Page 9 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL 19. Fit supplied protection plates to bull bar. Heads of exposed bolts (as shown) may be spray painted black to conceal visibility. 20. Using wing protection plates as a guide, trim plastic guard liners and attach using cable ties.
- Page 10 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Plastic Parking Sensor Installation IMPORTANT: Parking sensors should be installed as close to the same direction as when they sit in the factory bumper. For new vehicles with parking sensors, the new bars will now come with a plastic parking sensor holder kit.
- Page 11 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Using supplied wipes, clean around the sensor hole on the INSIDE of the bar. The kit comes with double sided stickers to enable you to stick the sensor holder in place.
- Page 12 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Clean the plastic sensor holder with supplied wipes and install the double sided sticker. Remove the double sided stickers protective layer and install the sensor holder into the bar. IMPORTANT: Parking sensors...
- Page 13 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL 10. Install the backing plate to suit the sensor. 11. Ensure that the sensor is installed correctly and centred. Page 13 of 16 ©Copyright 2018 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...
-
Page 14: Winch Installation
Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Winch Installation 1. Bolt winch to cradle. Bolt fairlead to recess in front of bull bar using bolts, washers and nuts provided. Fit bull bar to vehicle referring to steps of bull bar fitting instructions. - Page 15 Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL 5. Connect the thin black earth wire and negative battery cable to the earth connection on the opposite side of winch motor. Run the positive and negative battery cables into the engine bay taking care to secure cables away from any sharp or moving objects.
-
Page 16: Wiring Diagrams
Installation Guide BBC067 / BBCD067 / BBA067 / BBT067-NL Wiring Diagrams PARK LIGHT & INDICATOR Park Light Indicator White Yellow Park Light Indicator Circuit Circuit Black Black Ground Ground FOG LIGHTS Ground Lamp Fuse Connector Relay Black Blue Battery Lamp...
