Ironman4x4 ISNORKEL041 Installation Manual

To suit isuzu d-max 6/2012 to 7/2019 and isuzu mu-x 2014+ 4jj1 3.0l turbo diesel
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
•

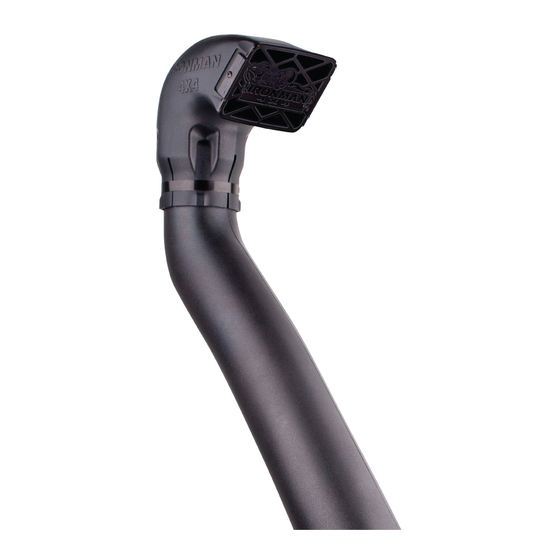

Ironman 4x4 Snorkel to suit Isuzu D-Max and MU-X and fits to the right hand side of
the vehicle.
•
It will take about 3 hours to install.
•
Below is a list of some required tools for installing your Ironman 4x4 Snorkel:
-
Hole Saw (105mm)
-
Spanner (13mm)
NOTE: Only use "sensor safe" sealant during installation
IMPORTANT: Snorkel installations should only be done by a qualified person
and it is the responsibility of this person to ensure correct and water tight fitment.
©Copyright 2023 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
INSTALLATION
TO SUIT ISUZU D-MAX 6/2012 TO 7/2019
-
Step Drill
GUIDE
ISNORKEL041
AND ISUZU MU-X 2014+
4JJ1 3.0L Turbo Diesel

Advertisement

loading
Need help?

Need help?

Do you have a question about the ISNORKEL041 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironman4x4 ISNORKEL041

Summary of Contents for Ironman4x4 ISNORKEL041

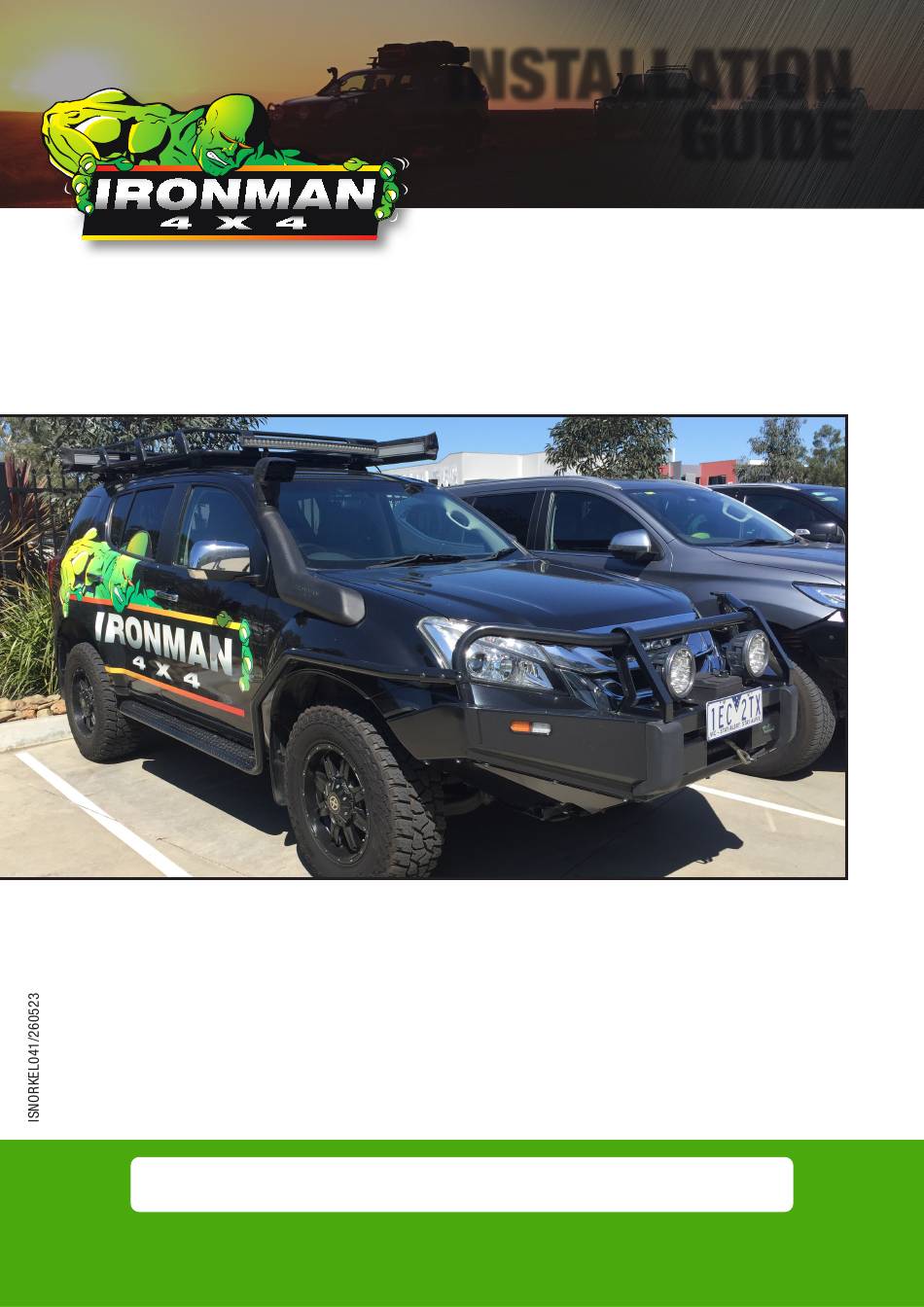

  • Page 1 INSTALLATION GUIDE ISNORKEL041 TO SUIT ISUZU D-MAX 6/2012 TO 7/2019 AND ISUZU MU-X 2014+ 4JJ1 3.0L Turbo Diesel • Ironman 4x4 Snorkel to suit Isuzu D-Max and MU-X and fits to the right hand side of the vehicle. • It will take about 3 hours to install.
  • Page 2 Installation Guide ISNORKEL041 Before installation check snorkel application is compatible with your vehicle. Remove right hand front muguard liner, air box and air entry duct to air box. Apply masking tape to right hand front mudguard and right hand windscreen pillar.
  • Page 3 Installation Guide ISNORKEL041 Using thread-lock screw 5 x studs into snorkel body. Attach pillar mounting bracket loosely to snorkel using M6 bolts provided. Hold snorkel body in position on mudguard and mark position of pillar bracket on pillar. Remove snorkel.
  • Page 4 Installation Guide ISNORKEL041 12. Remove air box intake duct. 13. Install new air duct from inside air box using sensor safe sealant and supplied screw to secure into location. Put screw in here 14. Re-fit air box and conncet to rubber duct. Secure with hose clamp provided.
