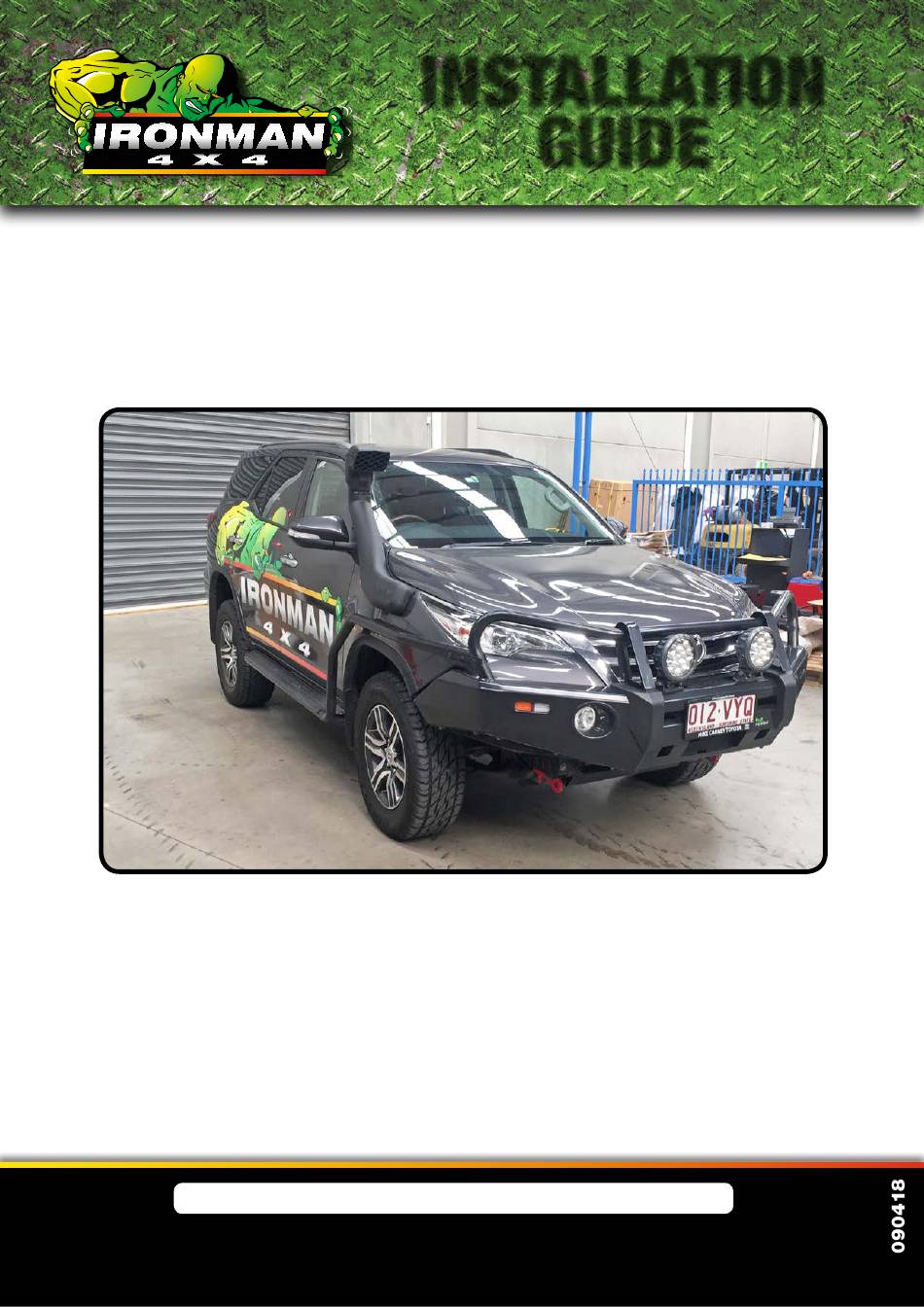

TOYOTA FORTUNER 2015+
1GD-FTV 2.8L Diesel Engine
•
Ironman 4x4 Snorkel fits to the right hand side of the
Toyota Fortuner.
•
It will take about 3 hours to install.
•
Below is a list of some required tools for installing
your Ironman 4x4 Snorkel:
-
Hole Saw (105mm)
-
Step Drill
-
Air Hacksaw
-
Spanner (13mm)
NOTE: Only use "sensor safe" sealant during installation
IMPORTANT: Snorkel installations should only be done by a qualified person and it is the
responsibility of this person to ensure correct fitment and to ensure the installation is water tight.
INSTALLATION
ISNORKEL053
GUIDE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ironman4x4 ISNORKEL053
Summary of Contents for Ironman4x4 ISNORKEL053
- Page 1 INSTALLATION GUIDE ISNORKEL053 TOYOTA FORTUNER 2015+ 1GD-FTV 2.8L Diesel Engine • Ironman 4x4 Snorkel fits to the right hand side of the Toyota Fortuner. • It will take about 3 hours to install. • Below is a list of some required tools for installing...
- Page 2 Before installation check snorkel application is compatible with your vehicle. Remove right hand front muguard liner, air box air entry duct to air box, and headlight. Apply masking tape to right hand front mudguard and right hand windscreen pillar. Tape template to mudguard making sure it is lined up with top of mudguard (bonnet opening) and rear of mudguard (door opening).
- Page 3 De-burr and rust-proof all holes (this applies to all holes drilled after this step). Place rubber duct under mudguard through to engine bay. Lubrication will assist in getting the rubber hose through inner guard hose. Using thread-lock screw 4 studs into the rear of snorkel body in position shown.
- Page 4 11. Hold bracket in position previously marked on pillar and mark mounting holes. Drill mounting holes in pillar to 7.5mm. Apply silicone sealant. Insert mounting plugs and attach mounting bracket using three self tapping screws provided (When drilling mounting holes, only drill through outer skin and no further.) 12.
- Page 5 14. Cut outer flange off air box intake. As shown. 15. Refit air box to vehicle, attach to rubber joiner and secure with hose clamp provided. 16. Check all hose connections and air box for potential leaks and seal as required. 17.
