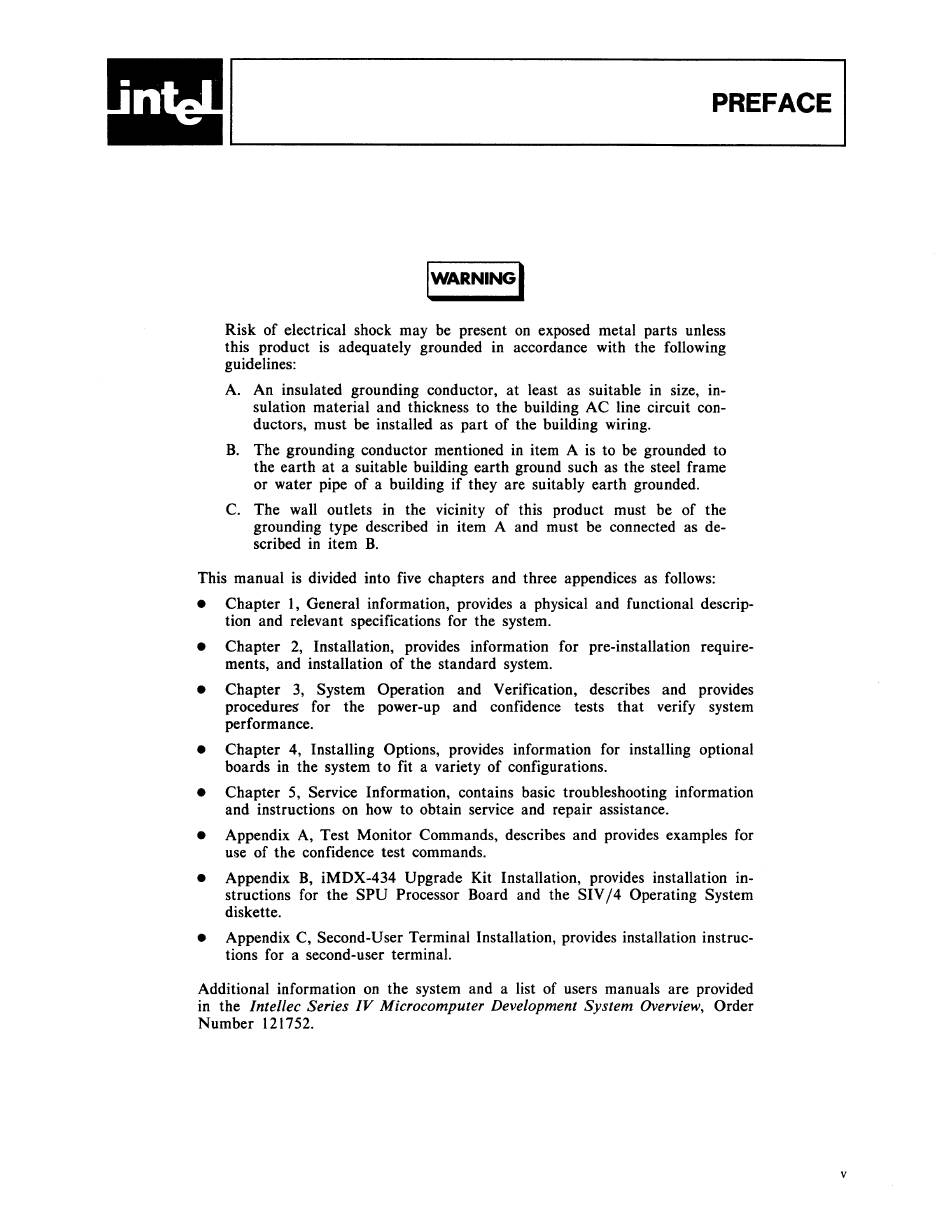

PREFACE
Risk of electrical shock may be present on exposed metal parts unless
this product is adequately grounded in accordance with the following
guidelines:
A. An insulated grounding conductor, at least as suitable in size, in-
sulation material and thickness to the building AC line circuit con-
ductors, must be installed as part of the building wiring.
B. The grounding conductor mentioned in item A is to be grounded to
the earth at a suitable building earth ground such as the steel frame
or water pipe of a building if they are suitably earth grounded.
C. The wall outlets in the vicinity of this product must be of the
grounding type described in item A and must be connected as de-
scribed in item B.
This manual is divided into five chapters and three appendices as follows:
•
Chapter 1, General information, provides a physical and functional descrip-
tion and relevant specifications for the system.
•
Chapter 2, Installation, provides information for pre-installation require-
ments, and installation of the standard system.
•
Chapter 3, System Operation and Verification, describes and provides
procedures for the power-up and confidence tests that verify system
performance.
•
Chapter 4, Installing Options, provides information for installing optional
boards in the system to fit a variety of configurations.
•
Chapter 5, Service Information, contains basic troubleshooting information
and instructions on how to obtain service and repair assistance.
•
Appendix A, Test Monitor Commands, describes and provides examples for
use of the confidence test commands.
•
Appendix B, iMDX-434 Upgrade Kit Installation, provides installation in-
structions for the SPU Processor Board and the SIV / 4 Operating System
diskette.
•
Appendix C, Second-User Terminal Installation, provides installation instruc-
tions for a second-user terminal.
Additional information on the system and a list of users manuals are provided
in the Intellec Series IV Microcomputer Development System Overview, Order
Number 121752.
