- Page 1 ETAS ES582.2 CAN FD Bus Interface USB Module User Guide...
- Page 2 Copyright The data in this document may not be altered or amended without special notification from ETAS GmbH. ETAS GmbH undertakes no further obligation in relation to this document. The software described in it can only be used if the customer is in possession of a general license agreement or single license.
-
Page 3: Table Of Contents
General Data ............... 25 ETAS ES582.2 | User Guide... - Page 4 Index ................40 ETAS ES582.2 | User Guide...
-
Page 5: Safety Notices
Program codes or program control sequences that are created or changed via ETAS products, as well as all types of data obtained through the use of ETAS prod- ucts, must be checked for their reliability and suitability prior to use or distribution. -
Page 6: Intended Use
The product is designed in accordance with state-of-the-art technology. Only operate the product and its accessories if they are in perfect working order. Shut down a damaged product immediately. Do not open or alter the product. Only ETAS may make changes to the product. -
Page 7: Assembly
Install the product on a smooth, level and firm surface. WARNING The following product is a Class A piece of equipment: ES582.2 This piece of equipment may cause radio interference in living areas. In this case, the user may be required to take appropriate measures. -
Page 8: Operation
If the firmware update is not completed successfully, try it again. If a new firmware update is not possible and the product is not functional, send the product to ETAS. WARNING Risk due to undefined vehicle behavior during an ECU reset If you operate the product in combination with ETKs, the ECU must not be reset in an uncontrolled manner. -
Page 9: Cables And Accessories

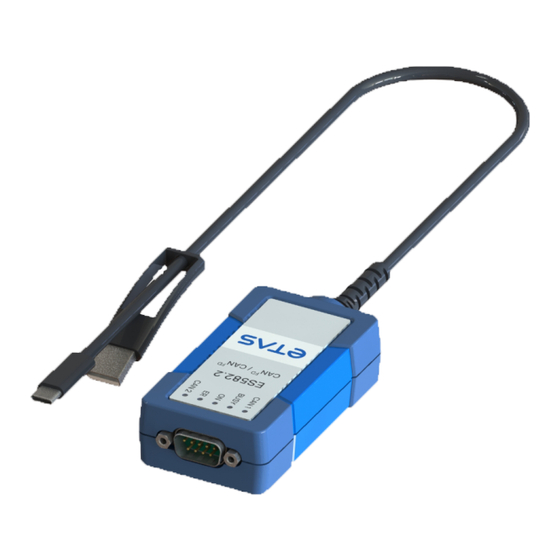

- Make sure that no moisture enters the product. Repairs If repairs are required, send the product to ETAS. 1.10 Shipment and Packaging You can find the return form and information about this process on the ETAS web- site: www.etas.com/en/support/hw_return_form.php. ETAS ES582.2 | User Guide... - Page 10 • Update of the Firmware ..........15 Overview The ES582.2 CAN FD Bus Interface USB Module is part of the family of compact ETAS bus interface modules. It is equipped with two CAN/CAN FD interfaces for connection to the CAN bus of a vehicle or an ECU as well as with a USB port for the connection with a PC or a drive recorder.
-
Page 11: Hardware Description
- Integration of the module in the BUSMASTER open source software or via EBI-IP in application software from third-party manufacturers Properties The most important properties of the ES582.2 CAN FD Bus Interface USB Module at a glance: - 2 independent CAN/CAN FD interfaces: •... -
Page 12: Interfaces
Operating modes Each CAN interface can optionally be operated in the CAN high-speed operating mode or in the CAN FD (CAN Flexible Data Rate) operating mode. The ES582.2 module supports ISO-compliant CAN FD as well as non-ISO-compliant CAN FD. The interfaces CAN1 and CAN2 can be configured independently of each other in... -
Page 13: Usb Port
According to the CAN specification, one bus terminating resistor each of 120 ohm is required at the two open ends of the bus. It must be connected to the cable or the plug. ETAS offers cables and terminating resistors of 120 ohm to set up CAN networks. -
Page 14: Power Supply
14 | Hardware Description Power Supply The power supply of the ES582.2 module is connected via the USB port of a PC or a drive recorder. An external power supply is not required for the module. Notes about the requirements for the USB port of the PC are located in chapter 5.9.1 on page 29. -
Page 15: Update Of The Firmware
15 | Hardware Description Update of the Firmware The firmware of the ES582.2 can be updated by the user so that future versions of the module can also be used. The update of the firmware is done with the help of the ETAS service software "Hardware Service Pack"... -
Page 16: Commissioning
Preparing to Install NOTE The latest USB driver must be installed on the PC in order to operate the ES582.2 module. The ES582.2 can be installed under plug & play-compatible operating systems (min. Windows 10). After installing the drivers, the ES582.2 module can be inserted/removed at any time. -
Page 17: Installation Procedure
- ETAS Safety Advice ES52x_ES59x The application for installing the USB drivers is located on the DVD as the execut- able file autostart.exe. As an alternative, you can install the driver for the ETAS service software "Hard- ware Service Pack" (HSP). 3.2.3 Installation Procedure Commissioning the ES582.2 must be done in the following order:... -
Page 18: Verifying The Installation Of The Usb Driver
For compatibility reasons, the ES582.2 is displayed in the device manager as "ES582.1". Verifying the installation of the USB driver: 1. Connect the ES582.2 module with the USB port of the PC or the drive recorder. 2. Select Start Control Panel ... -
Page 19: Establishing The Usb Connection
19 | Commissioning Establishing the USB Connection After successful driver installation, the ES582.2 module can be connected to the PC. Windows should recognize the device and install the corresponding driver. Windows displays an information note in the start bar. Fig. 3-2 on page 19 shows a representation of the information notes that are displayed. -
Page 20: Troubleshooting Problems
23 | Troubleshooting Problems Troubleshooting Problems This chapter gives some information of what you can do when problems arise with the ES582.2 and when general problems arise that are not specific to a certain software or hardware product. Displays of the LEDs For assessing the operating states and for removing errors of the ES582.2,... - Page 21 PC is cor- rect and intact. Check whether the LED "ER" flashes: The baud rate may not be supported by the mod- ule. Information about the supported baud rates is located in chapter 5.9.2 on page 31. ETAS ES582.2 | User Guide...
-
Page 22: Technical Data
350 mA Current consumption, max. ES582.2 Product designation Manufacturer's address Marking for China RoHS, see also on page 27 Marking for RoHS, see chapter on page 27 Marking for CE conformity (Chapter 5.3 on page 27) ETAS ES582.2 | User Guide... -
Page 23: Standards
-40 °C to +85 °C (without packaging) -40 °F to +185 °F Max. relative humidity (non-condensing) Max. altitude 5000 m / 16400 ft Degree of contamination (IEC 60664-1, IEC 61010-1) Protection rating IP52 (when closed) ETAS ES582.2 | User Guide... -
Page 24: Rohs Conformity
Methods for Controlling Pollution Caused by Electronic Information Products Reg- ulation) applicable in the People's Republic of China. CE Conformity With the CE mark attached to the product or its packaging, ETAS confirms that the product corresponds to the product-specific, applicable directives of the Euro- pean Union. -
Page 25: Mechanical Data
WEEE return system for recycling. The WEEE Directive applies to all ETAS devices, but not to external cables or bat- teries. Additional information about the recycling program of ETAS GmbH is available from the ETAS sales and service locations (see chapter “Contact Information”... -
Page 26: System Requirements
Prerequisite for the successful initialization of the module NOTE A specific USB driver must be installed on the PC for operating the ES582.2 mod- ule (see chapter 3.3 on page 18). Windows user rights Ensure that you have the required Windowsuser rights for the installation of the USB driver (administrator rights). -
Page 27: Software
14.1.0 from 2.0.0 Supported software interfaces For the integration of the ES582.2 module and the J2534 interface in application software from third-party manufacturers, ETAS provides the software develop- ment kit "ECU and Bus Interfaces - Integration Package" (EBI-IP). The software development kit can be downloaded free of charge on the ETAS web- site. -
Page 28: Electrical Data
1 Mbaud at 20 m bus length CAN FD SIC (data): max. 5 Mbit/s (operat- ing temperature range) CAN FD SIC (data): max. 8 Mbit/s (room temperature) Controller ARM Cortex MCU Transceiver (physical layer) TJA1462BT ETAS ES582.2 | User Guide... -
Page 29: Terminal Assignment
NOTE All connections are represented with view onto the interfaces of the module. The connection of the CAN bus to the ES582.2 CAN FD Bus Interface USB Module is carried out via the 9-pin DSUB connector (see Fig. 5-3). Fig. 5-3 ES582.2 DSUB Connector... -
Page 30: Cables And Accessories
CAN 1, high CAN 2, high Not connected Not connected Not Used Not Used Order designation Short name Order number CAN and FlexRay Interface Y-Cable, DSUB – CBCF100.1-0m3 F 00K 107 939 2 x DSUB (9fc-9mc+9mc), 0m3 ETAS ES582.2 | User Guide... -
Page 31: Cable Cbac180
35 | Cables and Accessories Cable CBAC180 Fig. 6-3 Cable CBAC180-2 OBDII (J1962) adapter cable for the CAN Interfaces of ES582.2 DSUB connec- OBD2 connec- Signal Note tion tion CAN1 High CAN1 High and CAN1 Low in a shielded twisted pair... -
Page 32: Cable Cbh500
9mc), 2 m Adapter CBCX131.1-0 120 Ohm Fig. 6-6 Terminating Resistor CBCX131.1-0 CAN 120 ohm terminating resistor, 2xDSUB (9fc+9mc) Order designation Short name Order number CAN 120 ohm terminating resistor, 2xDSUB CBCX131-0 F 00K 103 786 (9fc+9mc) ETAS ES582.2 | User Guide... -
Page 33: Ordering Information
Short name Order number ES582.2 CAN FD Bus Interface USB Module ES582.2 F 00K 115 625 Scope of supplies - ES582.2 CAN FD Bus Interface USB Mod- ule, - Cable CBCF100.1, - ES582.2_DVD, - List "Content of this Package", - ES58x_ETAS_Safety_Advice... -
Page 34: Contact Information
38 | Contact Information Contact Information Technical Support For details of your local sales office as well as your local technical support team and product hotlines, take a look at the ETAS website: www.etas.com/en/hotlines.php ETAS Headquarters ETAS GmbH Borsigstraße 24... -
Page 35: Figures
Terminating Resistor CBCX131.1-0 ..........36 ETAS ES582.2 | User Guide... -
Page 36: Index
Operating state, display ....14 Overview ......10 ETAS ES582.2 | User Guide...
