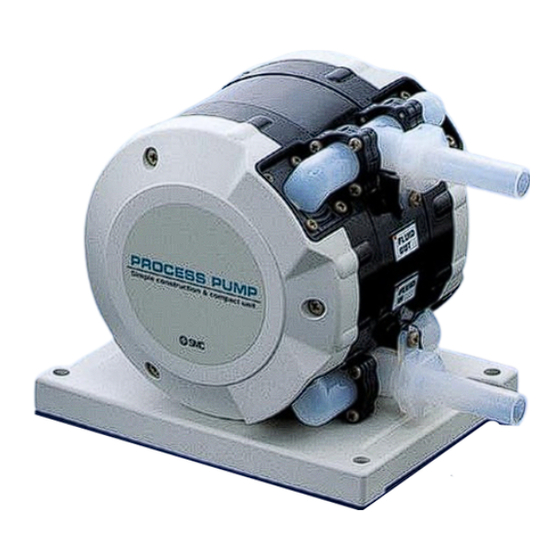

SMC Networks Clean Wet PAF3000 Series Instruction Manual

Process pump
Hide thumbs

Advertisement

Quick Links

Download this manual
Body material
P F A
PFA
New
Ne w
Diaphragm/
Seal material
P TF E
PTFE
One pump is compatible with various fluids.
Light weight
and Compact
Weight:
(Air operated, without foot bracket)
Non-Metallic Exterior
(No external metal parts are used.)
1.3
kg
Clean Wet Series
Clean Wet Series
Process Pump
Series
Series
140
mm
CAT.EUS100-59
A
-UK
PAF3000
PAF3000
116
mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the Clean Wet PAF3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks Clean Wet PAF3000 Series

Summary of Contents for SMC Networks Clean Wet PAF3000 Series

  • Page 1 CAT.EUS100-59 Clean Wet Series Clean Wet Series Process Pump PAF3000 PAF3000 Series Series Body material P F A Ne w Diaphragm/ Seal material P TF E PTFE One pump is compatible with various fluids. Light weight  and Compact Weight: ...
  • Page 2 Dual PPS/PFA construction Dual PPS/PFA construction Withstand pressure and heat cycle performance have been increased. Diaphragm holding bolt Check ball New PFA PTFE Diaphragm Denatured PTFE Side cover Valve seat Port New PFA New PFA Side cover New PFA Large flow rate Large flow rate The flow rate has been increased by even though it is almost the same size as the PA3 series.
  • Page 3 Process Pump: Automatically Operated Type (Internal Switching Type) Air Operated Type (External Switching Type) PAF3000 Series How to Order PAF341 Female thread Option Actuation Note 1) Applicable actuation Symbol Option Automatically operated Air operated Symbol Actuation   None Automatically operated ...
  • Page 4 Series How to Order Fittings for Products with Nut (PAF341S Series) Fittings compatible for the process pump with nut / PAF341S. For the case when using the process pump with nut, use the fittings which have one nut (including the insert bushing) removed.

  • Page 5: Specifications

    Process Pump Series Automatically Operated Type Specifications PAF3410 PAF3413 Model Automatically operated Air operated Operation method Main fluid: Suction/Discharge port Rc, G, NPT 3/8" female thread, 1/2" tube extension Port size Rc, G, NPT 1/4" Rc, G, NPT 1/8" Pilot air: Supply/Exhaust port Discharge flow rate 1 to 20 l/min Note)
  • Page 6 Series Performance Curve: Automatically Operated Type PAF3410 PAF3410 Flow Characteristics Air Consumption Discharge rate (l/min) Discharge rate (l/min) Selection from Flow Characteristic Graph (PAF3410) Required specifications example: Find the pilot air pressure and the pilot air consumption for a discharge rate of 6 l/min and a discharge pressure of 0.25 MPa. <The transfer fluid is fresh water (viscosity 1 mPa·s, specific gravity 1.0).>...
  • Page 7 Process Pump Series Air Operated Type Performance Curve: Air Operated Type PAF3413 Flow Characteristics Selection from Flow Characteristic Graph (PAF3413) Required specification example: Find the pilot air pressure and the pi- Cycle 4 Hz SUP = 0.5 MPa lot air consumption for a discharge rate of 4 l/min and a discharge Cycle 3 Hz pressure of 0.15 MPa.
  • Page 8 Series Working Principle: Automatically Operated Type (PAF3410) Air exhaust port (AIR EXH) Switching valve Air supply port (AIR SUP) Pilot valve A Pilot valve B Discharge port (FLUID OUT) Pump chamber A Pump chamber B Check valve Shaft Suction port (FLUID IN) Drive chamber B Drive chamber A...
  • Page 9 Process Pump Series Automatically Operated Type Piping and Operation: Automatically Operated Type (PAF3410) Piping diagram Discharge port Pilot air supply port FLUID OUT AIR SUP Silencer Option Suction port FLUID IN Pilot air exhaust port AIR EXH Caution Mounting orientation of the pump is set with the mounting bracket facing downward. Air to be supplied to the air supply port <AIR SUP> should be clean and filtered through a filter, or a mist separator etc.
  • Page 10 Series Piping and Operation: Air Operated Type (PAF3413) Piping diagram Discharge port Pilot air supply port: P1 FLUID OUT AIR SUP Suction port FLUID IN Pilot air supply port: P2 AIR SUP Recommended Valve Solenoid valve PAF3413 VQZ140 (Exhaust centre) Refer to page 13 for further details.
  • Page 11 Process Pump Series Automatically Operated Type Dimensions: Automatically Operated Type PAF3410- Female thread: Air operated reset port FLUID OUT Rc 1/8 AIR SUP Rc, NPT, G 3/8 Rc, NPT, G 1/4 FLUID IN AIR EXH Rc, NPT, G 3/8 Silencer: AN200-02 Rc, NPT, G 1/4 (Option) Foot...
  • Page 12 Series Dimensions: Automatically Operated Type 1S13 PAF3410S- With nut (with LQ1 Fitting): 1S19 Air operated reset port FLUID OUT Rc 1/8 AIR SUP With nut Rc, NPT, G 1/4 AIR EXH FLUID IN Rc, NPT, G 1/4 With nut Silencer: AN200-02 Foot (Option) (Option)
  • Page 13 Process Pump Series Air Operated Type Dimensions: Air Operated Type PAF3413- Female thread: AIR SUP (P1) FLUID OUT Rc, NPT, G 1/8 Rc, NPT, G 3/8 AIR SUP (P2) FLUID IN Rc, NPT, G 3/8 Rc, NPT, G 1/8 Foot 2-M5 (Option) Thread depth 9...
  • Page 14 Series Dimensions: Air Operated Type 1S13 PAF3413S- With nut (with LQ1 Fitting): 1S19 2-M5 Thread depth 9 4-ø7 FLUID OUT AIR SUP (P1) With nut Rc, NPT, G 1/8 FLUID IN AIR SUP (P2) Foot With nut Rc, NPT, G 1/8 (Option) Model PAF3413S-1S13...

  • Page 15: Related Products

    Related Products Related Products <For driving the PAF3413 series> Specifications 5 port solenoid valve VQZ1420 VQZ2420 VQZ1450 VQZ2450 Model VQZ14  0/24  0 Piping Body ported Base mounted Valve construction Metal seal (Exhaust centre) Type of actuation 3 position exhaust centre Max.
  • Page 16 Related Products Related Products <When it is desired to remove Model Specifications water droplets from the system.> Model AMG150 AMG250 Fluid Compressed air Note) Max. operating pressure 1.0 MPa Water separator Rated flow /min (ANR)) Note) Min. operating pressure 0.05 MPa Series Proof pressure 1.5 MPa...
  • Page 17 Applicable Fluids Material and Fluid Compatibility Check List for Process Pumps Chemical Compatibility Acetone Note 1, 2)  Ammonium hydroxide Note 2)  Isobutyl alcohol Note 1, 2)  Isopropyl alcohol Note 1, 2)  Hydrochloric acid  Ozone  Hydrogen peroxide Concentration 5% or less 50°C or less ...
  • Page 18 Process Pump Safety Instructions These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate the level of potential hazard by labels of "Caution", "Warning" or "Danger". To ensure safety, be sure to Note 1) Note 2) Note 3) Note 4)
  • Page 19 Process Pump Precautions 1 Be sure to read this before handling. Refer to the main catalogue sections for detailed precautions on each series. Caution on Design Warning Warning 1. Check the specifications. 12. Condensation and freezing of the pilot port Give careful consideration to operating conditions such as For the automatically operated type, the location around the the application, fluid and environment, and use within the...
  • Page 20 Process Pump Precautions 2 Be sure to read this before handling. Refer to the main catalogue sections for detailed precautions on each series. Air Supply Caution on Design Warning Warning 1. Use clean air. 2. Only undertake maintenance once the system has been confirmed as safe.
  • Page 24 EUROPEAN SUBSIDIARIES: Spain Austria France Netherlands SMC España, S.A. SMC Pneumatik GmbH (Austria). SMC Pneumatique, S.A. SMC Pneumatics BV Zuazobidea 14, 01015 Vitoria 1, Boulevard de Strasbourg, Parc Gustave Eiffel De Ruyterkade 120, NL-1011 AB Amsterdam Girakstrasse 8, A-2100 Korneuburg Phone: +34 945-184 100, Fax: +34 945-184 124 Bussy Saint Georges F-77607 Marne La Vallee Cedex 3 Phone: +31 (0)20-5318888, Fax: +31 (0)20-5318880...

This manual is also suitable for:

Clean wet paf3410Clean wet paf3413
