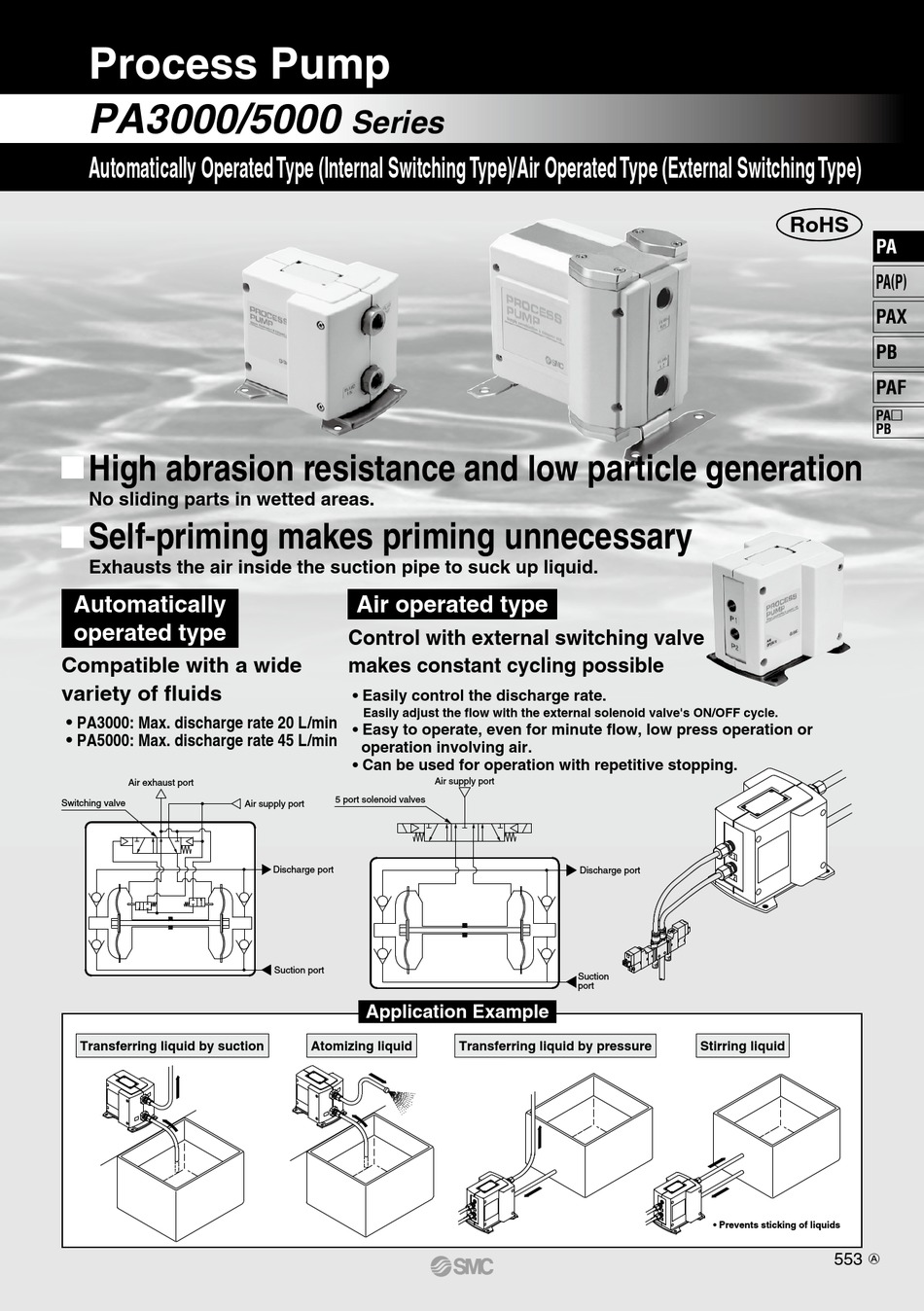

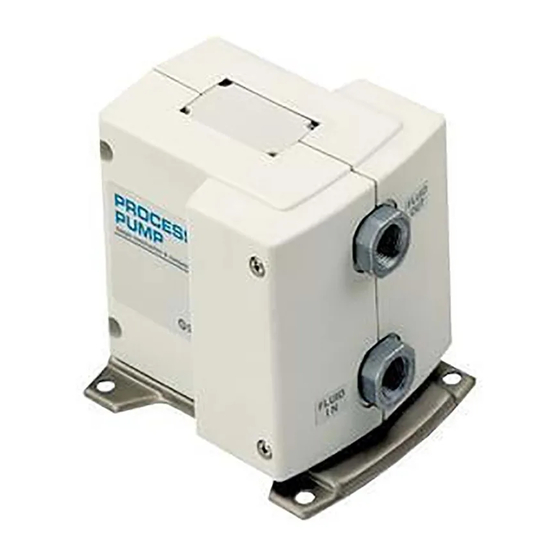

Process Pump
PA3000/5000
Automatically Operated Type (Internal Switching Type)/Air Operated Type (External Switching Type)
High abrasion resistance and low particle generation
No sliding parts in wetted areas.
Self-priming makes priming unnecessary
Exhausts the air inside the suction pipe to suck up liquid.
Automatically
operated type
Compatible with a wide
variety of fluids
• PA3000: Max. discharge rate 20 L/min
• PA5000: Max. discharge rate 45 L/min
Air exhaust port
Switching valve
Transferring liquid by suction
Series
Air operated type
Control with external switching valve
makes constant cycling possible
• Easily control the discharge rate.
Easily adjust the flow with the external solenoid valve's ON/OFF cycle.
• Easy to operate, even for minute flow, low press operation or
operation involving air.
• Can be used for operation with repetitive stopping.
5 port solenoid valves
Air supply port
Discharge port
Suction port
Application Example
Atomizing liquid
Air supply port
Discharge port
Suction
port
Transferring liquid by pressure
RoHS
Stirring liquid
• Prevents sticking of liquids
553
A
PA
PA
PA
(
P
)
PAX
PB
PAF
PA
PB

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks PA3000 Series

Summary of Contents for SMC Networks PA3000 Series

  • Page 1 Process Pump PA3000/5000 Series Automatically Operated Type (Internal Switching Type)/Air Operated Type (External Switching Type) RoHS PA High abrasion resistance and low particle generation No sliding parts in wetted areas. Self-priming makes priming unnecessary Exhausts the air inside the suction pipe to suck up liquid. Automatically Air operated type operated type...
  • Page 2 Process Pump Automatically Operated Type (Internal Switching Type) Air Operated Type (External Switching Type) PA3000 Series RoHS How to Order PA3000 Option Material of body wetted areas Applicable actuation Symbol Material of body wetted areas Symbol Option Automatically ADC12 (Aluminum) operated operated SCS14 (Stainless steel)
  • Page 3 Process Pump Automatically Operated Type (Internal Switching Type) Air Operated Type (External Switching Type) PA5000 Series RoHS How to Order PA5000 PA 5 Option Material of body wetted areas Applicable actuation Symbol Material of body wetted areas Symbol Option Automatically ADC12 (Aluminum) operated operated...
  • Page 4 Series Performance Curve: Automatically Operated Type PA30 PA50 Flow Rate Characteristics Flow Rate Characteristics Air consumption 100 L/min (ANR) Air consumption Air consumption 50 L/min (ANR) 150 L/min (ANR) Air consumption Air consumption 100 L/min (ANR) 200 L/min (ANR) Air consumption 250 L/min (ANR) Air consumption 150 L/min (ANR)
  • Page 5 Series Process Pump Performance Curve: Air Operated Type PA513 PA313 Flow Rate Characteristics Flow Rate Characteristics Cycle 5 Hz Cycle 7 Hz Cycle 5 Hz SUP = 0.5 MPa Cycle 3 Hz SUP = 0.5 MPa Cycle 1 Hz Cycle 3 Hz SUP = 0.4 MPa SUP = 0.4 MPa SUP = 0.3 MPa...

  • Page 6: Working Principle

    Basically, it is not recommended to disassemble the process pump. However, if this is necessary, be sure to follow the instructions in the maintenance procedure. When carrying out this work, wear appropriate protective equipment. PA3000/5000 Series PA3000 series PA5000 series Description PA310...
  • Page 7 Series Process Pump Piping and Operation: Automatically Operated Type Piping diagram Reset button Pilot air supply port AIR SUP Discharge port FLUID OUT PA Silencer Option Suction port FLUID IN Pilot air exhaust port AIR EXH Caution Mounting posture of the pump is set with the mounting bracket facing downward. Air to be supplied to the air supply port <AIR SUP> should be cleaned and filtered through AF filter, etc.

  • Page 8: Operation

    Series Piping and Operation: Air Operated Type Piping diagram Pilot air supply port: P1 Discharge AIR SUP port FLUID OUT Suction port Pilot air supply port: P2 FLUID IN AIR SUP Recommended Valve Solenoid valve PA313 VQZ140 (Exhaust center) PA513 VQZ240 (Exhaust center) Caution Maintain the proper tightening torque for fittings and mounting bolts, etc.
  • Page 9 Series Process Pump Dimensions PA30/Automatically Operated Type Silencer: AN200-02 (Option) ø4.5 4 x ø7 12.5 (167) FLUID OUT Rc, NPT, G, NPTF 3/8" Reset button AIR SUP PA (Pilot air supply port) Rc, NPT, G, NPTF 1/4" AIR EXH (Pilot air exhaust port) Rc, NPT, G, NPTF 1/4"...
  • Page 10 Series Dimensions PA50/Automatically Operated Type 11.5 Silencer: AN200-02 4 x ø9 (Option) FLUID OUT 17.5 Rc, NPT, G, NPTF 1/2", 3/4" AIR SUP (221) (Pilot air supply port) Rc, NPT, G, NPTF 1/4" Reset button FLUID IN AIR EXH Rc, NPT, G, NPTF 1/2", 3/4" (Pilot air exhaust port) Rc, NPT, G, NPTF 1/4"...
  • Page 11 PA3000/5000 Series Made to Order Specifications Please contact SMC for detailed dimensions, specifications and lead times.  PA3000/5000 Series 1. Products Complying with ATEX 55 PA 3 1 1 0 Products complying with the ATEX Directive Body size Option Products complying with the ATEX Directive, Category 2 Symbol Body size Operating method...
  • Page 12 PA3000/5000 Series 2. With Air Operated Reset Port 3 1 1 0 Made to order specifications Body size Wetted body material With air operated reset port Option Symbol Body size Symbol Body material ∗ For AIR EXH: AN20-02 Symbol Option ADC12 (Aluminum) Thread type (: Either Nil or N is entered as a thread...
  • Page 13 Process Pump PA(P)3000 Series Fluororesin Type RoHS P F A P F A N e w N e w e f r o t a n c m a d r e s i s PA r i a l s i o n m a t e o r r o...

  • Page 14: Diaphragm Material

    With the use of New With the use of New for body material, for body material, Diaphragm Diaphragm material material Body material Body material PTFE PTFE Center plate Diaphragms PTFE Side bodies New PFA Through bolts Resin covers Ports New PFA Foot Variations Discharge rate...
  • Page 15 high corrosion resistance is achieved! high corrosion resistance is achieved! Clean You can order your process pump assembled in a Clean room environment and double-packaged (Order number PAP331). Side bodies and ports are molded to achieve a PA great reduction in dust generation. Air pilot actuation reset is Compact &...

  • Page 16: How To Order

    Process Pump Clean Room Automatically Operated Type (Internal Switching Type) Air Operated Type (External Switching Type) PA(P)3000 Series RoHS How to Order Female thread Option Actuation Note 1) Applicable actuation Symbol Option Symbol Actuation Automatically operated Air operated Automatically operated None ...
  • Page 17 Process Pump Clean Room PA(P)3000 Series Automatically Operated Type/Air Operated Type PAP331 S 13 With nut Assembly environment Option Symbol Assembly environment Applicable actuation Clean room Symbol Option Automatically Air operated operated None   Actuation Note 1) With foot ...

  • Page 18: Specifications

    PA(P)3000 Series Specifications PA3310 PAP3310 PA3313 PAP3313 Model Actuation Automatically operated Air operated Rc, NPT, G, NPTF 3/8" Female thread Rc, NPT, G, NPTF 3/8" Female thread Main fluid suction Rc, NPT, G, NPTF 3/8" Rc, NPT, G, NPTF 3/8" 3/8", 1/2"...
  • Page 19 Process Pump Clean Room PA(P)3000 Series Automatically Operated Type/Air Operated Type Performance Curve: Automatically Operated Type PAP3310 Air Consumption PAP3310 Flow Rate Characteristics SUP for models other SUP for models other than those below than those below PAP3310-P11 PAP3310-P11 PAP3310S-S11 PAP3310S-S11 PAP3310S-S1113 PAP3310S-S1113...
  • Page 20 PA(P)3000 Series Performance Curve: Air Operated Type PAP3313 Flow Rate Characteristics Selection from Flow Rate Characteristic Graph (PAP3313) Required specification example: Find the pilot air pressure for a Cycle 4 Hz discharge rate of 6 L/min, a discharge pressure of 0.25 MPa, and a Cycle 3 Hz cycle of 4 Hz.
  • Page 21 Process Pump Clean Room PA(P)3000 Series Automatically Operated Type/Air Operated Type Dimensions PAP3310/Automatically Operated Type 2 x M5 Depth 8 Main body base diagram AIR SUP Reset button FLUID OUT Rc, NPT, G, NPTF 1/4" Air operated reset port Rc, NPT, G, NPTF 3/8" Rc, NPT, G, NPTF 1/8"...
  • Page 22 Process Pump PAX1000 Series Automatically Operated Type, Built-in Pulsation Attenuator (Internal Switching Type) RoHS Prevents spraying of discharge and foaming in tank Space-saving design eliminates separate piping with built-in pulsation attenuator Air exhaust port Air supply port Switching valve Pulsation attenuator Suction port air chamber Discharge port...
  • Page 23 Process Pump Automatically Operated Type, Built-in Pulsation Attenuator (Internal Switching Type) PAX1000 Series RoHS How to Order PAX1 Option Body material Symbol Option Symbol Body material Body only PA With silencer ∗ ADC12 (Aluminum) SCS14 (Stainless steel) ∗ For AIR EXH: AN20-02 (: Either Nil or N is entered as a thread symbol.) Actuation...
  • Page 24 PAX1000 Series Performance Curve: Automatically Operated Type, Built-in Pulsation Attenuator PAX1000 Flow Rate Characteristics Selection from Flow Rate Characteristic Graph Required specification example: Find the pilot air pressure and pilot air consumption for a discharge rate of 6 L/min and a discharge pressure of 0.25 MPa. <The transfer fluid is fresh water (viscosity 1 mPa·s, specific gravity 1.0).>...
  • Page 25 PAX1000 Process Pump Series Automatically Operated Type, Built-in Pulsation Attenuator Working Principle: Automatically Operated Type, Built-in Pulsation Attenuator Air exhaust port Air supply port (AIR EXH) (AIR SUP) Change lever Pulsation attenuator Pulsation attenuator intake valve exhaust valve Switching valve Pilot valve A Pilot valve B PA...
  • Page 26 PAX1000 Series Piping: Automatically Operated Type, Built-in Pulsation Attenuator Piping diagram Reset button Reset button Pilot air supply port AIR SUP Discharge port FLUID OUT Suction port Silencer FLUID IN (Optional) Pilot air exhaust port AIR EXH Caution Mounting posture of the pump is set with the bottom surface at the bottom. Air to be supplied to the AIR SUP port should be cleaned and filtered through AF filter, etc.
  • Page 27 PAX1000 Process Pump Series Automatically Operated Type, Built-in Pulsation Attenuator Dimensions Reset button Silencer: AN20-02 (Option) PA (157) FLUID OUT Rc, NPT, G, NPTF 1/4", 3/8" FLUID IN AIR SUP Rc, NPT, G, NPTF 1/4", 3/8" (Pilot air supply port) Rc, NPT, G, NPTF 1/4"...
