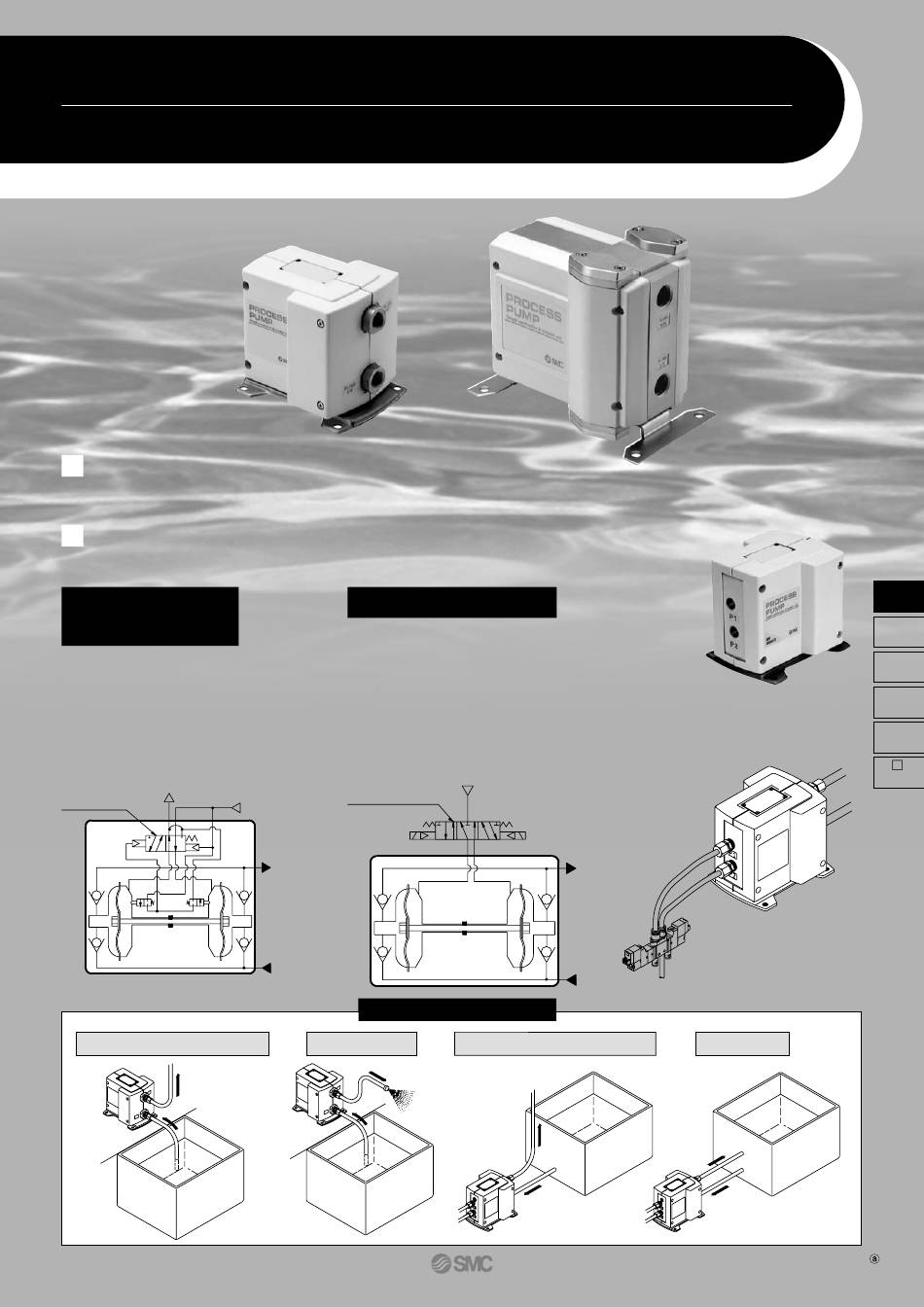

Series
Automatically Operated Type (Internal Switching Type)/Air Operated Type (External Switching Type)
High abrasion resistance and low particle generation
No sliding parts in wetted areas.
Self-priming makes priming unnecessary
Exhausts the air inside the suction pipe to suck up liquid.
Automatically
operated type
Compatible with a wide
variety of fluids
• PA3000: Max. discharge rate 20 l/min
• PA5000: Max. discharge rate 45 l/min
Air exhaust port
Switching valve
Transferring liquid by suction

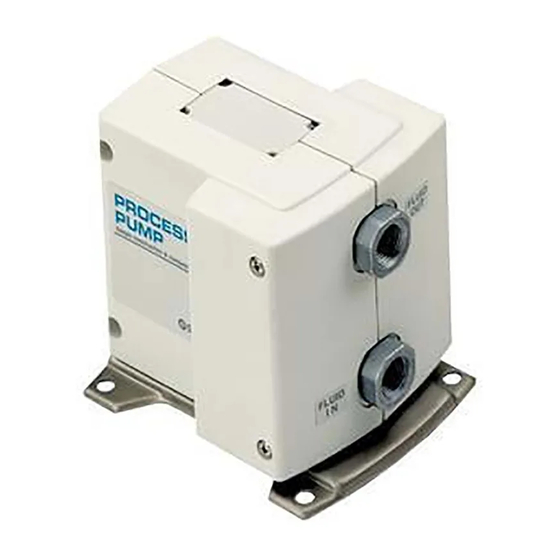

Process Pump
PA3000/5000
Air operated type
Control with external switching valve
makes constant cycling possible
• Easily control the discharge rate.
Easily adjust the flow with the external solenoid valve's ON/OFF cycle.
• Easy to operate, even for minute flow, low press operation or
operation involving air.
• Can be used for operation with repetitive stopping.
5 port solenoid valves
Air supply port
Discharge port
Suction port
Application Example
Atomizing liquid
Air supply port
Discharge port
Suction
port
Transferring liquid by pressure
Stirring liquid
• Prevents sticking of liquids
669
PA
PAP
PAX
PB
PAF
PA
PB
