Summary of Contents for SMC Networks PA5010

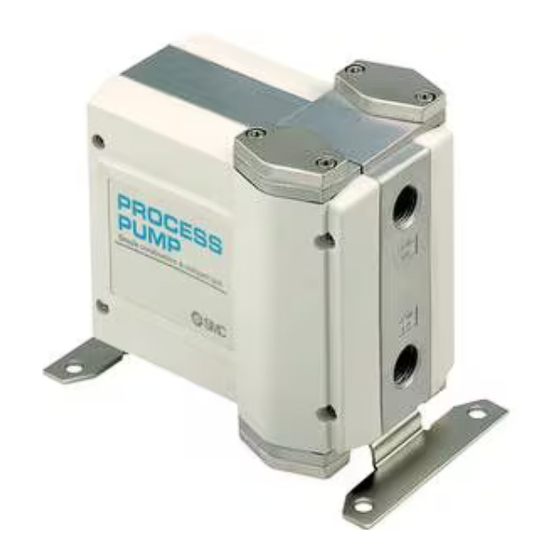

- Page 1 Doc. no. PAB****-OMY0018 PRODUCT NAME Process Pump MODEL / Series / Product Number PA5010...
-
Page 2: Table Of Contents
Contents Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -P.2 to 3 Names and functions of parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P.4 Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P.5 to 9 Applicable Fluids - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P.10... -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International ... - Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
-
Page 5: Names And Functions Of Parts
Names and functions of parts Reset button Discharge port < FLUID OUT > Pilot air supply port < AIR SUP > Suction port Pilot air exhaust port <FLUID IN > < AIR EXH > Foot Description Functions Suction port Sucks the fluid to be transferred. Connect suction piping. (FLUID IN) Discharge port Discharges the fluid taken in the pump. -
Page 6: Precautions
Precautions 1. Caution on design Warning 1. Confirm the specifications. - Give careful consideration to operating conditions such as the application, fluid and environment, and use the product within the operating ranges specified in this catalog. - The product is provided for physical, chemical and industrial equipment. 2. - Page 7 11. Condensation and freezing of the pilot port The location around the switching valve and the air exhaust port can cool down quickly due to expansion of the supply air, and this may cause condensation on the piping and the condensation may freeze during operation in winter.
- Page 8 4. Air Supply Warning 1. Use clean air. Do not use compressed air that includes chemicals, synthetic oils containing organic solvents, salinities or corrosive gases, etc., as it can cause damage or malfunction. 2. Pay attention to avoid freezing when operating the product in low temperatures. The equipment operates while expanding the compressed air.
- Page 9 Material Method per cycle A in service life B (wetted part) Automatically PA5010 PTFE Approx. 0.10L 50 million cycles Approx. 505 mL operated type 3. Please understand the following concerning the inability to repair the product. To enable the process pump to be used with various fluids, please note that from the aspects of...
- Page 10 7. Lubrication Caution 1. The pump can be used without lubrication. 2. If lubricating the pump, continue lubrication. If lubricating a pump, use turbine oil Class 1 (with no additives) ISO VG32, and be sure to continue lubricating the pump. 8.
-
Page 11: Applicable Fluids
7. These may be penetrated by fluids, and the penetrating fluids may affect parts of other materials. Table symbols ○: Can be used. ×: Cannot be used. －: Can be used under certain conditions. Please consult us. Model PA5010 Body material Diaphragm material PTFE ○... -
Page 12: Specifications
Specifications Model PA5010-□04 PA5010-□06 Actuation Automatically operated Main fluid Rc, NPT, G, Female thread suction 1/2” 3/4" discharge port Port size Pilot air supply/exhaust Rc, NPT, G 1/4" Female thread port Body wetted areas Diaphragm PTFE Material Check valve PTFE, PP, PFA... -
Page 13: Performance Curve
Performance Curve Flow Rate Characteristics PA5010-□04 PA5010-□06 Selection from Flow Rate Characteristic Graph Required specifications example: Find the pilot air pressure and air consumption of pilot air for a discharge rate of 27 L/min and a discharge pressure of 0.25 MPa. <The transfer fluid is fresh water (viscosity 1 mPa•s, specific gravity 1.0). - Page 14 Viscosity Characteristics Selection from Viscosity Characteristic Graph Required specifications example: Find the pilot air pressure and pilot air consumption for a discharge rate of 12 L/min, and a viscosity of 100 mPa·s. Selection procedures: 1. First find the ratio of the discharge rate for fresh water when viscosity is 100 mPa·s from the graph above.
-
Page 15: Working Principle
- I t is not recommended to disassemble the process pump. However, if this is necessary, be sure to follow the instructions in the maintenance procedure. - When carrying out this work, wear appropriate protective equipment. Description PA5010 Diaphragm kit KT-PA5-831 Check valve kit... -
Page 16: Piping And Operation
Piping and Operation Caution Mounting posture of the pump is set with the mounting foot facing downward. Air to be supplied to the air supply port <AIR SUP> should be cleaned and filtered through AF filter, etc. Air with foreign matter or drainage etc. -
Page 17: Dimensions
Dimensions... - Page 18 Revision 19-Feb-2021 Initial release 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com NOTE: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
