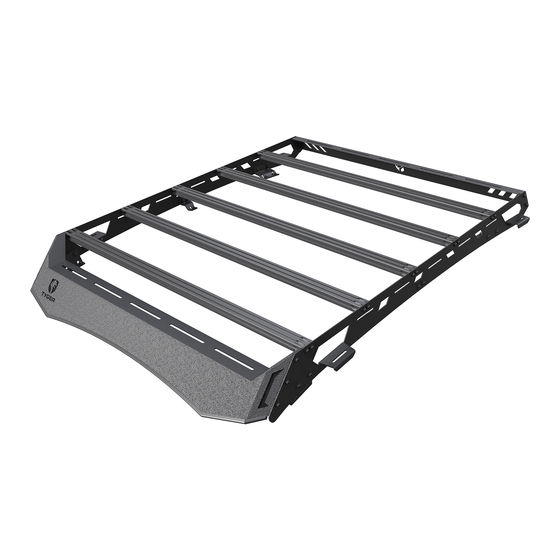

TYGER ROOF RACK
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT

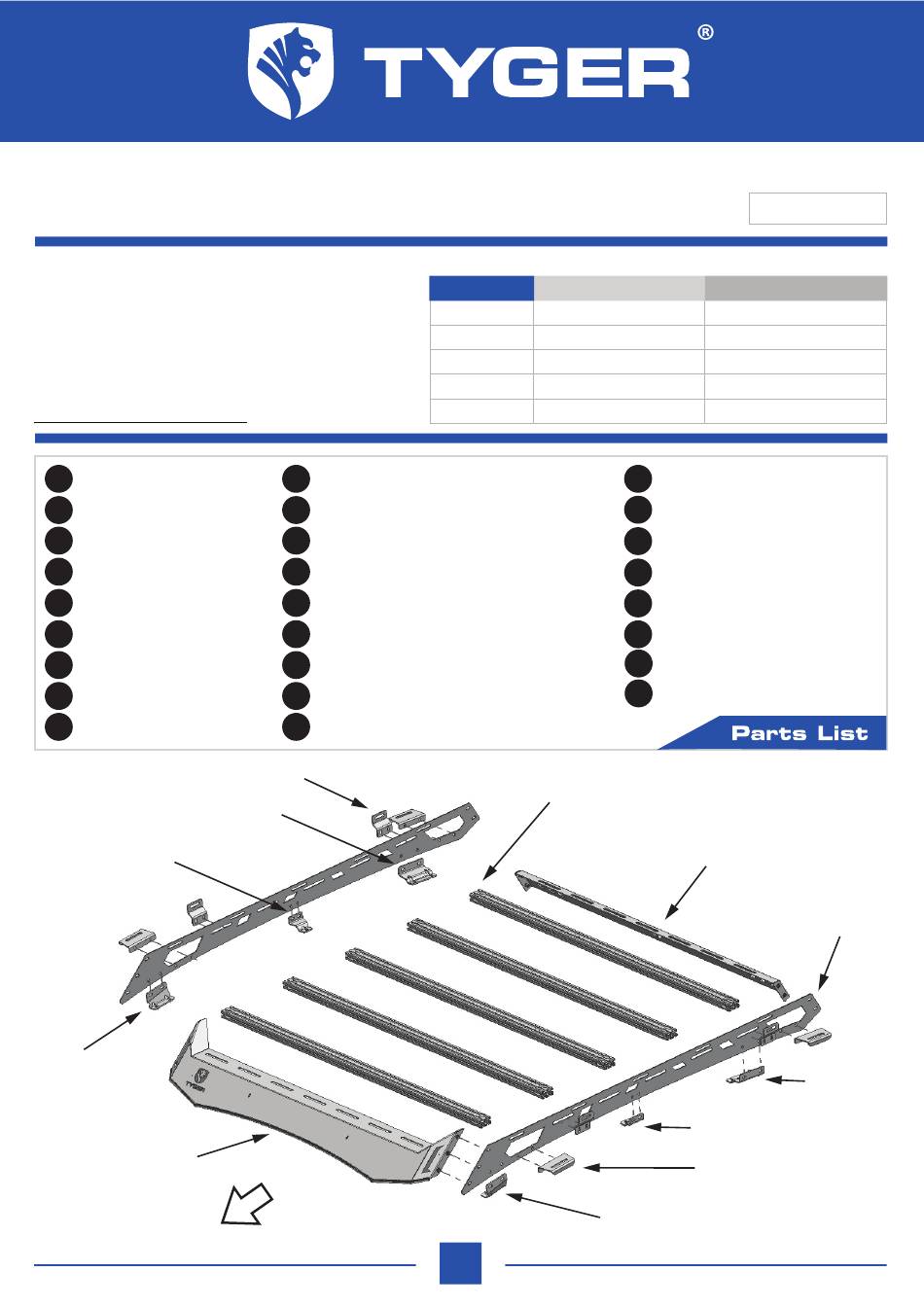

x2
Side Plates
x5
Aluminum Crossbars
x1
Front Cross Plate
x1
Rear Cross Plate
x1
Driver/Left Front Bracket
x1
Passenger/Right Front Bracket
x1
Driver/Left Center Bracket
x1
Passenger/Right Center Bracket
x1
Driver/Left Rear Bracket
(4) Accessory Brackets
Passenger/Right Rear Bracket
Passenger/Right
Center Bracket
Passenger/Right
Front Bracket
Front Cross Plate
TORQUE VALUES
Fastener Size
x1
Passenger/Right Rear Bracket
x4
Handle Brackets
x4
Accessory Brackets
x1
Rubber Seal
x1
Weather Proofing Stickers (10 pieces)
x4
100mm x 18mm x 15mm Front/Rear Spacers
x2
38mm x 18mm x 15mm Center Spacers
x4
Front/Rear 100mm x 18mm Self Adhesive Foam Strips
x2
Center 38mm x 18mm Self Adhesive Foam Strips
Front
Class 8.8 Torque (ft-lbs)
6mm
6-7
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
(5) Aluminum Crossbars
Driver/Left Front Bracket
1/6
TG-RR1T33028
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
x10
6mm x 40mm Button Head Bolts
x28
6mm x 20mm Button Head Bolts
x30
6mm x 20mm Button Head Combo Bolts
x10
6mm Lock Washers
x66
6mm x 18mm OD x 1.6mm Flat Washers
x28
6mm Nylon Lock Nuts
x4
M6 Eyelet Bolts
x1
4mm Hex Wrench
Rear Cross Plate
(2) Side Plates
Driver/Left
Center Bracket
(4) Handle Brackets
Driver/Left
Rear Bracket
V220803
