STEP BARS
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLAESE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
Passenger/right Sidebar, NOTE: Rear step pad is closer to end of sidebar
®
TG-SS2C35068
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
(8) Mounting
Customer Support: www.TygerAuto.com/Contact

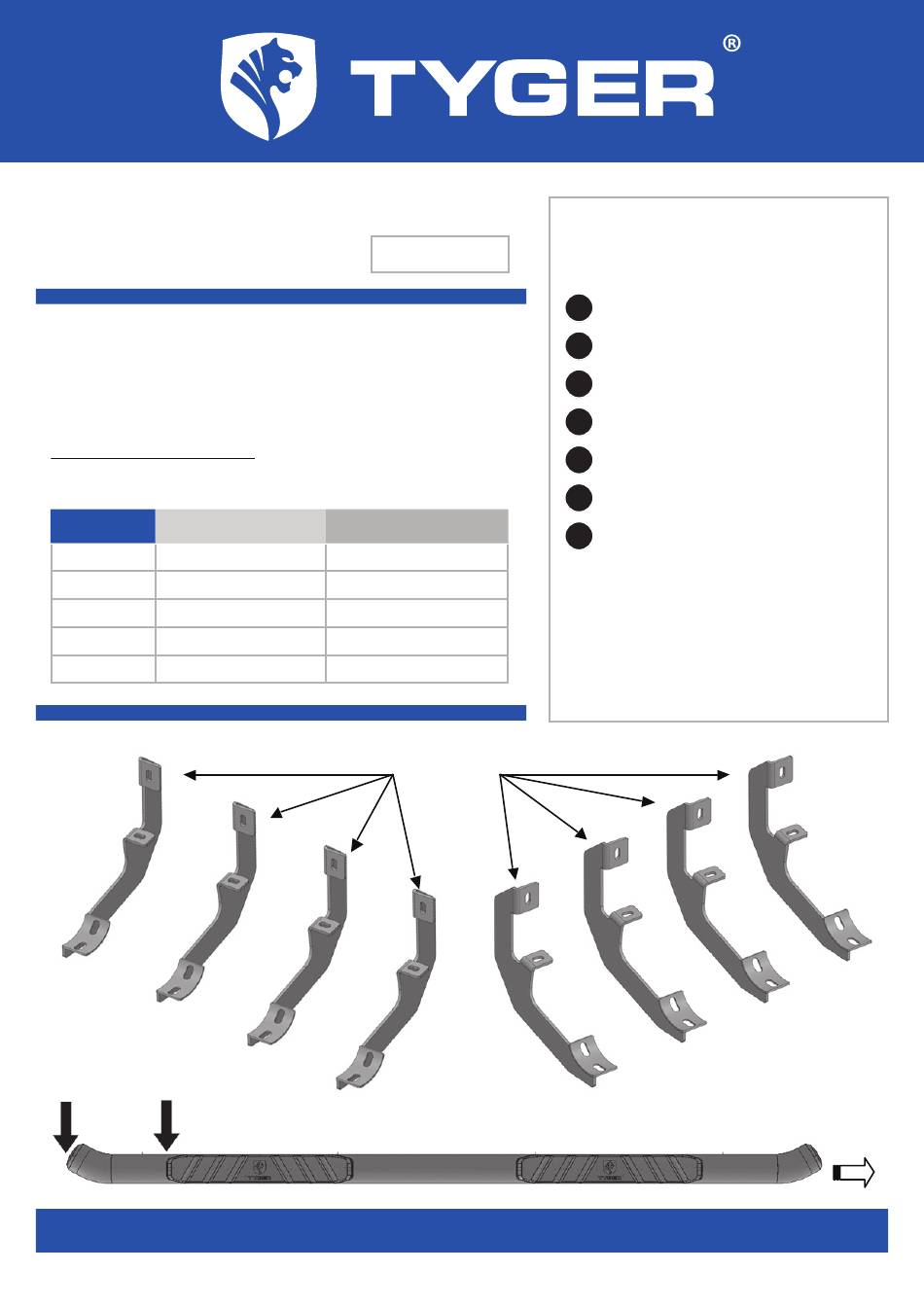

Parts List
x1
x1
x8
x16
x16
x16
x16
6-7
Brackets
1/4

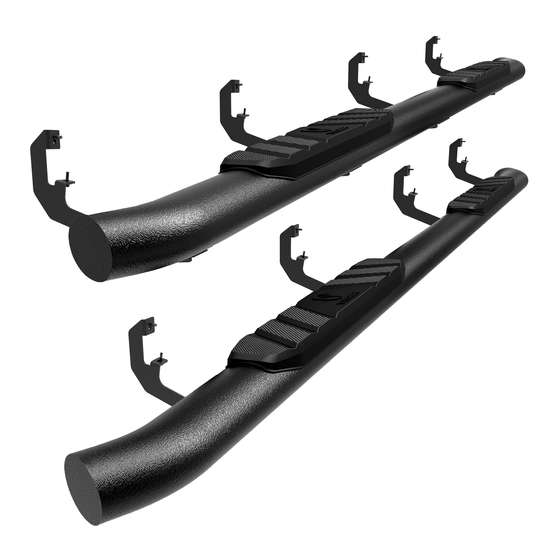

Driver/left Sidebar
Passenger/right Sidebar
Mounting Brackets
8-1.25mm x 30mm Hex Bolts
8-1.25mm x 25mm Combo Bolts
8mm Lock Washers
8mm x 24mm x 2mm Flat Washers
Front
V200914
Advertisement
Related Manuals for Tyger TG-SS2C35068
Summary of Contents for Tyger TG-SS2C35068
- Page 1 STEP BARS ® Parts List TG-SS2C35068 Driver/left Sidebar BEFORE INSTALLATION Passenger/right Sidebar READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO Mounting Brackets IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 NOTE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. Remove plugs STEP 1 Start the installation under the passenger/right side of the vehicle. Locate the 6 plugs along the bottom edge of the body. Mounting Brackets will attach to the 1st, 3rd, 4th and 6th thread- Front ed mounting holes, (Fig 1).
- Page 3 STEP 4 Select the passenger/right Sidebar. Use the illustration above to help determine the correct Sidebar. NOTE: The rear step pad is closer to the end of the Sidebar. Place the Sidebar on top of the Brackets. IMPORTANT: Do not slide, (front to back or rotate), the Sidebar on the Brackets or damage to the finish may result.
- Page 4 STEP 8 Do periodic inspections to the installation to make sure that all (2) 8mm hardware is secure and tight. Combo Bolts (Fig 9) Attach Sidebar to Brackets-passenger/right 2nd, 3rd and rear Brackets pictured STEP 6 Complete Installation Level and adjust the Sidebar and fully tighten all hardware. STEP 7 Repeat Steps 1-6 to install the driver/left Sidebar.
