Main Window
Indicators
The Main Window displays the block
number, Standby or Operating mode,
operating frequency, audio level, bat-
tery status and programmable switch
function. When the frequency step

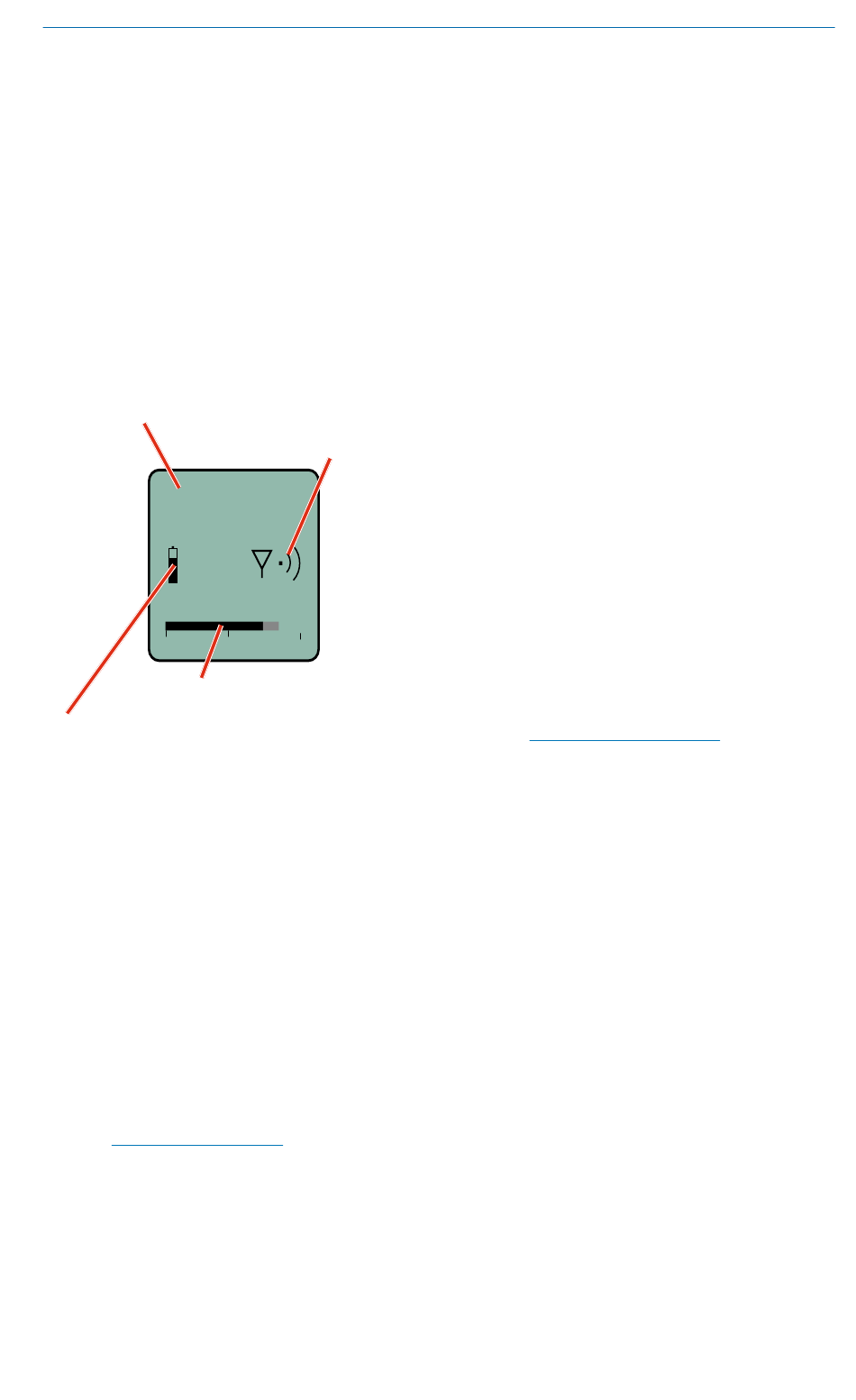

size is set at 100 kHz, the LCD will
look like the following:
Frequency

474.500
-40
Audio Level
Battery Status
Battery Status LED Indicator
• Green: Batteries are accept-
able and unit is functioning
properly
• Flashing Red: Batteries have
drained and remaining time is
limited
• Red: Batteries are drained
and should be replaced im-
mediately.
NOTE: The battery
timer feature in many
Lectrosonics receivers is
very helpful in measuring
battery runtime. Refer to
the receiver instructions
for details on using the
timer.
Rio Rancho, NM
Digital Hybrid Wireless Belt-Pack Transmitters
Operating Mode
-20
0
Encryption Status LED
Indicator Modes (Blue)
• StandBy: Light is OFF and
Operating Mode Indicator
icon has a line through it
• Missing/Wrong Key: Light is
FLASHING
• Transmitting: Light is steadily
ON
IR (infrared) Sync
The IR port is for quick setup using a
receiver with this function available.
IR Sync will transfer the settings for
frequency, step size and compat-
ibility mode from the receiver to the
transmitter. This process is initiated
by the receiver. When the sync func-
tion is chosen on the receiver, hold
the IR port of the transmitter near
the IR port of the receiver. (There is
no menu item available on the trans-
mitter to initiate the sync.)
NOTE: If a mismatch
exists between the
receiver and transmitter,
an error message will
appear on the transmitter
LCD stating what the
problem is.
