Selecting The Compatibility Mode - Lectrosonics DBSM Quick Start Manual

DBSM-A1B1, DBSM/E01-A1B1, DBSMD-A1B1, DBSMD/E01-A1B1

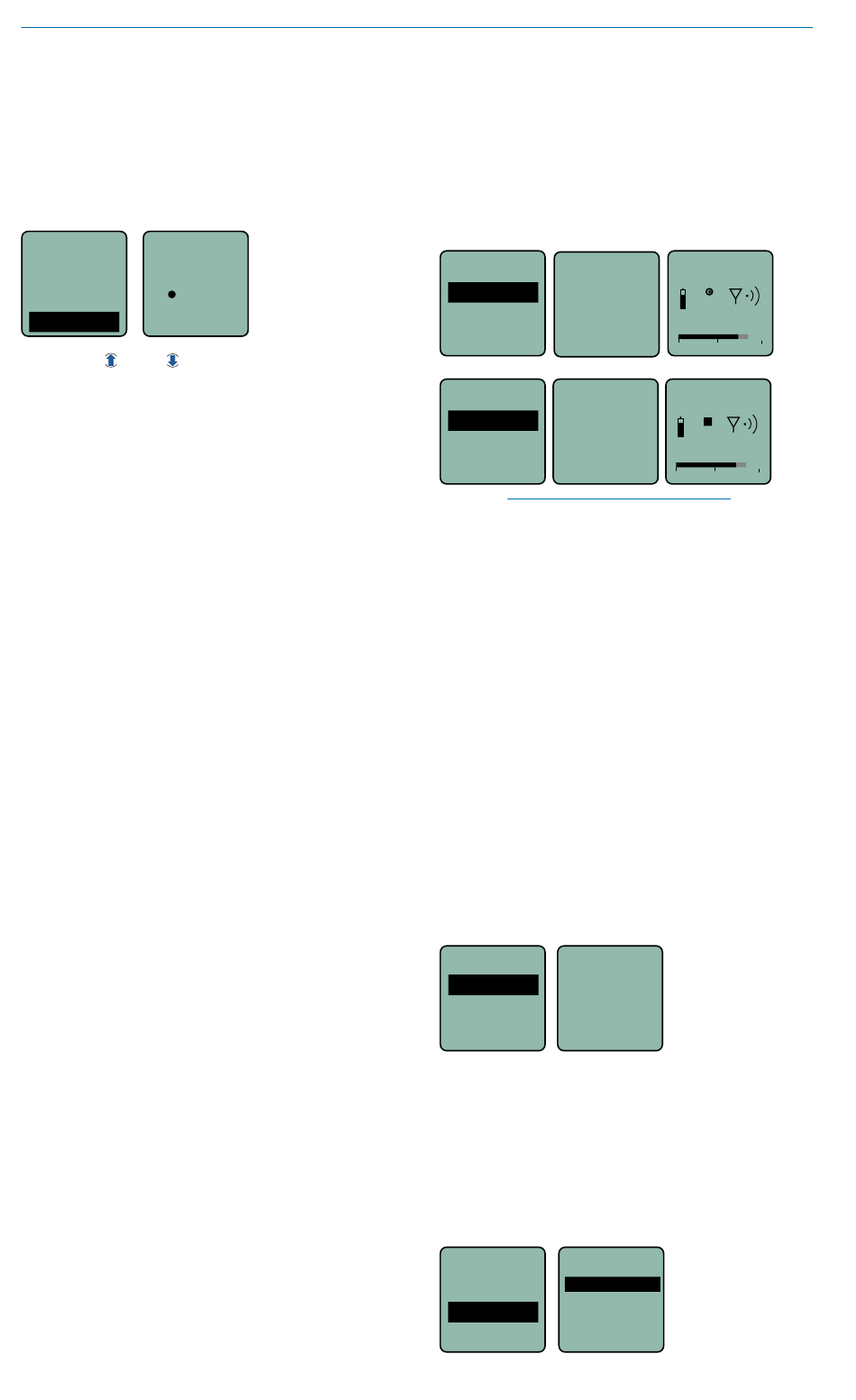

Compat Menu
Selecting the Compatibility
Mode
Compat
TopMenu
Input
o D2
Xmit
o HDM
Compat
Use the and arrow buttons to
select the desired mode, then press
the BACK button twice to return to
the Main Window.
Compatibility modes are as follows:
DBSM/DBSMD:
• Standard Mono Digital
(D2)
• High Density Mode
(HDM)
HDM Mode (High Density
Transmission)
This special transmitting mode and
associated low RF power of 2mW
allows the user to "stack" many
units into a very small area of the
spectrum. Standard, ETSI-compliant
RF carriers take up about 200 kHz
of occupied bandwidth, while HDM
takes up about half of that, or 100
kHz, and allows for much tighter
channel spacing.
SD Card Menu
The SD Card Menu can be accessed
from the TopMenu. It contains the
various recording functions, file
management and naming.
10
Record
Selecting this will start the unit
recording. To stop recording, press
MENU/SEL, choose SDCard and
Stop; the word SAVED appears on
the screen.
SDCard...
Record
RECORD-
Files
Takes
SDCard...
Stop SAVED
Files
Takes
NOTE: Record and Stop
Recording may also be
achieved by shortcut
keys from the main/home
screen:
• Simultaneous press of
BACK button + UP arrow
button: Begin record
• Simultaneous press of
BACK button + DOWN
arrow button: Stop
record
Files
This screen shows the existing files
on the SD card. Selecting a file will
display details about the file.
SDCard...
Files
0007A000
Files
0006A000
0005A000
Takes
0004A000
0003A000
Sc&Take
0002A000
Takes - Choosing Takes for
Replay
Use UP and DOWN arrows to toggle
and MENU/SEL to play back.
Takes
TxPower
S01
Sc&Take
S01
Takes
S02
S03
Naming
LECTROSONICS, INC.
542.000
REC
ING
-40 -20 +0
542.000
-40 -20 +0
T001
T002
T001
T001
