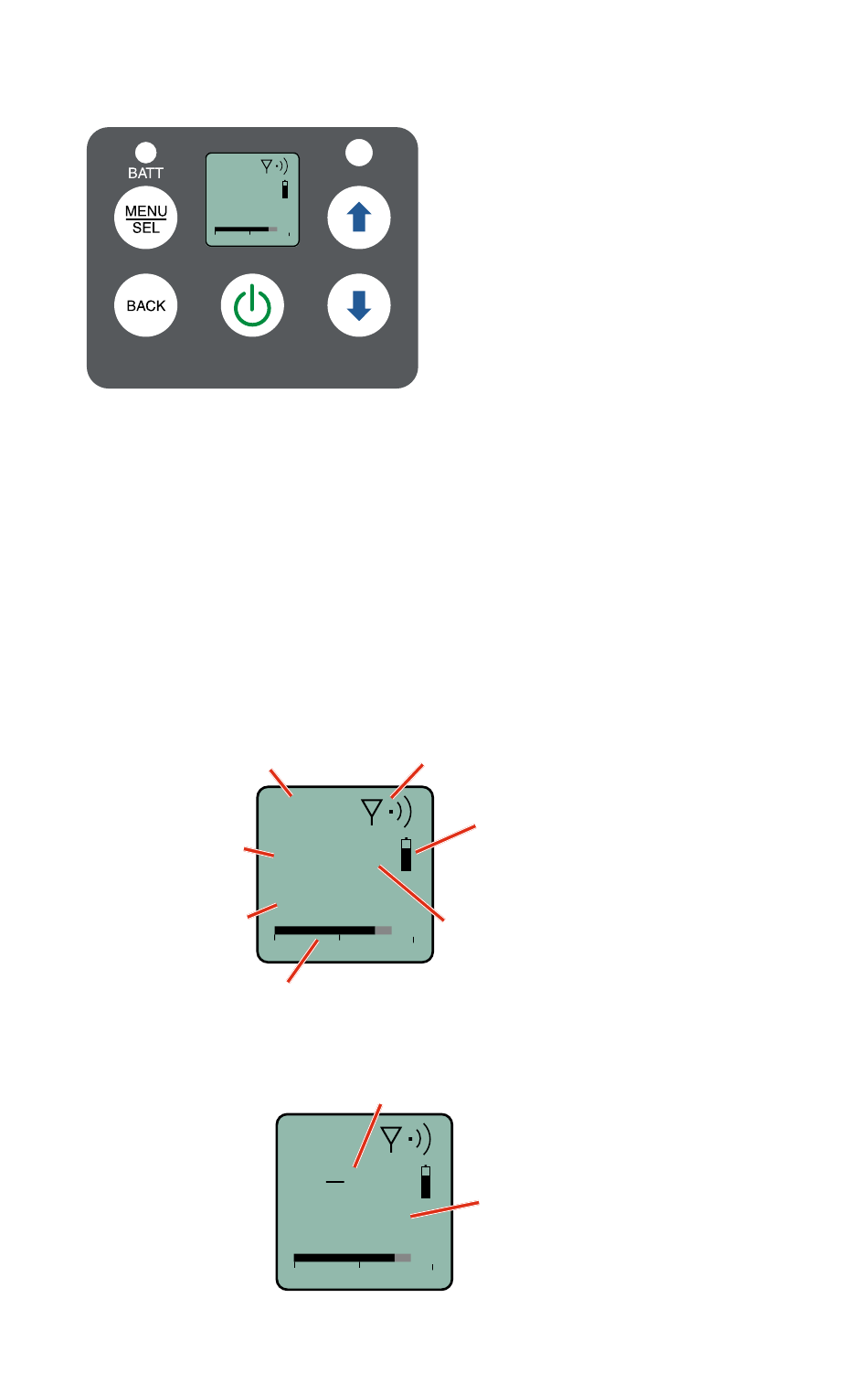

Keypad and LCD Interface

5
623.400
494.500
-40
BACK Button
Pressing this button returns to the previous menu or screen.
Power Button
Turns the unit off and on and enters the power menu.
Arrow Buttons
Used to navigate the menus.

Main Window Indicators

The Main Window displays the block number, Standby or Operating mode,
operating frequency, audio level, battery status and programmable switch
function. When the frequency step size is set at 100 kHz, the LCD will look
like the following.
Block number
Frequency
(hex setting)
Frequency (MHz)
When the frequency step size is set to 25 kHz, the hex number is smaller and
may include a fraction.
1/4 = .025 MHz
1/2 = .050 MHz
3/4 = .075 MHz
