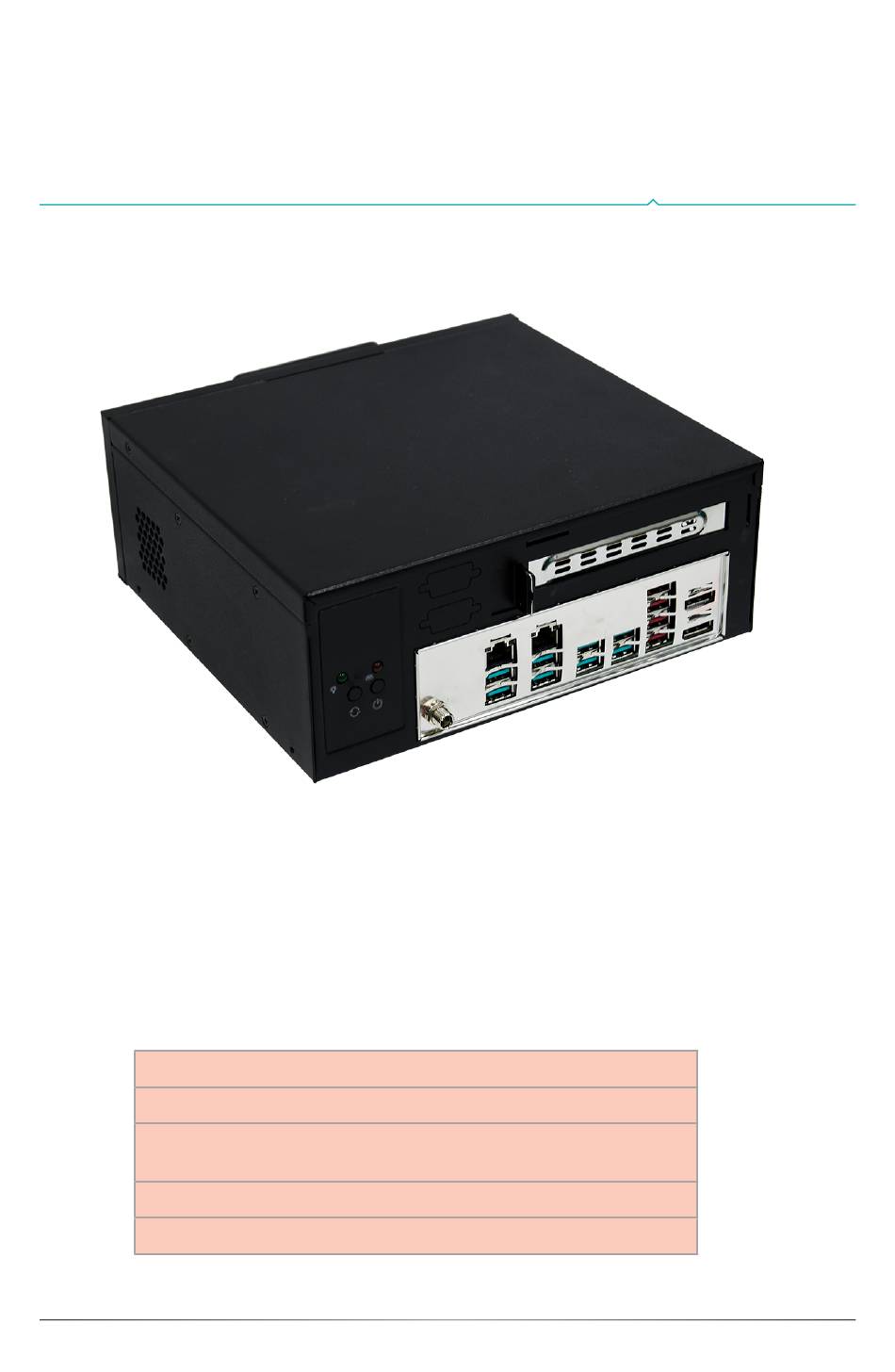

The 2 screws on left / right side of the system are used to secure the cover to the chassis. Remove the screws and put them in a safe place for later use. Left View Quick Installation Guide | WM120-CMS...
Right View Step 2: Lift the cover to open the system. The board can be easily accessed after the chassis cover is removed. Quick Installation Guide | WM120-CMS...
Installing an M.2 Card 9 10 M.2 E Key M.2 B Key M.2 E-Key M.2 M-Key M.2 B-Key Quick Installation Guide | WM120-CMS...
Page 6
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. Quick Installation Guide | WM120-CMS...
Installing the DIMM Module 9 10 M.2 E Key M.2 B Key SO-DIMM1 SO-DIMM2 Quick Installation Guide | WM120-CMS...
Page 8
DIMMs. Not all slots need to be populated. Dual Channel (DC) Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. Quick Installation Guide | WM120-CMS...
Page 9
Press the card down firmly with fingers while applying and maintaining even pressure on both ends. Step 3: The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 2 Step 3 Quick Installation Guide | WM120-CMS...
Step 1 Step 2 Step 3 DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/...
