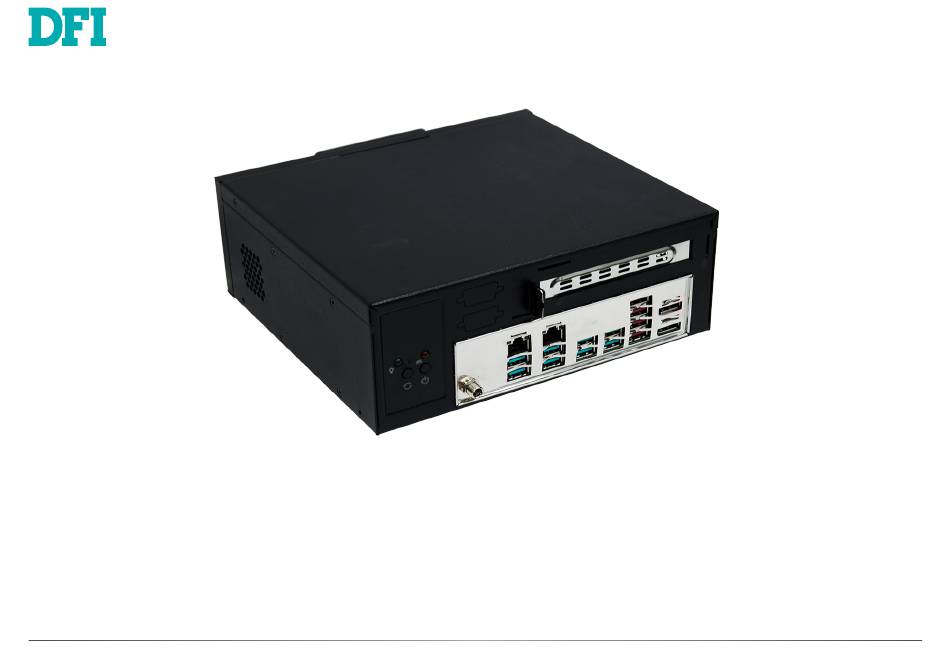

- Page 1 WM120-CMS Wallmount Desktop Box IPC User’s Manual © December 12, 2023 DFI Inc.
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | WM120-CMS...
-
Page 3: Table Of Contents
NCT5525D Super IO Configuration ► Serial Port 1 Configuration ...... 29 NCT6126D HW Monitor ....................29 NCT6126D HW Monitor ► Smart FAN Function ..........30 Serial Port Console Redirection ...................30 Serial Port Console Redirection ► Console Redirection Settings ......31 User's Manual | WM120-CMS... - Page 4 The manual is subject to change and update without notice, and may be based on editions that do not resemble your actual products. Please visit our website or contact our sales representa- • 1 WM120-CMS System Unit tives for the latest editions. •...
- Page 5 Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | WM120-CMS...
-
Page 6: Chapter 1 - Introduction
Chapter 1 INTRODUCTION Chapter 1 - Introduction X Overview Rear View Front View Power Button Power LED HDD LED DC-in LAN1 USB3.2 Gen2 USB3.2 LAN2 Reset Button DP++ User's Manual | WM120-CMS... -
Page 7: Dimensions
2 Intel GbE, 8 USB 3.2 Gen2, 4 USB 3.2, 2 DP++ Multiple Expansions: 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key WiFi 6 Communication: Support WiFi 6 module Support 5G Communication: Support 5G-NR module User's Manual | WM120-CMS... -
Page 8: Specifications
Audio Codec Realtek ALC888 ETHERNET Controller 1 x Intel I219LM PHY with iAMT12 and vPro (10/100/1000Mbps) (Core i7/i5 supports iAMT) ® 1 x Intel I211AT PCIe (10/100/1000Mbps) ® Indicators 1 x Power LED 1 x HDD LED User's Manual | WM120-CMS... - Page 9 224 x 88 x 206mm Weight 2.47kg Color Black STANDARDS AND CERTIFI- Shock Operating: 3G Non-operating: 5G CATIONS Vibration Operating: 1G Non-operating: 3G Package Drop ISTA Project 1A Certification CE, FCC Class A, UL, RoHS (To be applied), UKCA User's Manual | WM120-CMS...
-
Page 10: Chapter 2 - Hardware Installations
The 2 screws on left / right side of the system are used to secure the cover to the chassis. Remove the screws and put them in a safe place for later use. Left View Right View User's Manual | WM120-CMS... -
Page 11: System Memory
DIMMs. Not all slots need to be populated. Dual Channel (DC) Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate. User's Manual | WM120-CMS... -
Page 12: Removing The Dimm Module
Hold the card by its edges and remove it from the slot. The tabs snap automatically to the edges of the card and lock the card in place. Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 User's Manual | WM120-CMS... -
Page 13: Expansion Slots
4. Make sure the notch on card is aligned to the key on the socket. 5. Make sure the standoff screw is removed from the standoff. M.2 B Key M.2 Module M.2 Socket Stand-off Notch M.2 E-Key M.2 M-Key M.2 B-Key User's Manual | WM120-CMS... - Page 14 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | WM120-CMS...
-
Page 15: Chapter 3 - System Settings
Chapter 3 SYSTEM SETTINGS Chapter 3 - System Settings X System Layout Top View 9 10 M.2 E Key M.2 B Key User's Manual | WM120-CMS... -
Page 16: Jumper Settings
9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key „ 1-3 /2-4 On: „ 3-5 /4-6 On: „ 2-3 Off: Clear „ 1-2 On: Default RS232 Standard (Default) RS232 with Power User's Manual | WM120-CMS... -
Page 17: Pin Assignment
Chapter 3 SYSTEM SETTINGS X Pin Assignment System Fan SATA Power 9 10 9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key Assignment Assignment +12V DC TACH +5V DC User's Manual | WM120-CMS... -
Page 18: Cpu Fan (J10)
Chapter 3 SYSTEM SETTINGS CPU Fan DIO Power 9 10 9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key Assignment Assignment 5VDU CTRL User's Manual | WM120-CMS... -
Page 19: Sata0 (J1)
Chapter 3 SYSTEM SETTINGS SATA1 SATA0 9 10 9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key Assignment Assignment User's Manual | WM120-CMS... -
Page 20: Com1 (J17)
9 10 9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key Assignment Assignment Assignment Assignment MDCD- MSIN- MIC2_L MSO- MDTR- MIC2_R -ACZ_DET MDSR- LINE2_R FSENSE1 MRTS- MCTS- FAUDIO_JD MRI- ---- LINE2_L FSENSE2 User's Manual | WM120-CMS... -
Page 21: Com1 (J17)
9 10 9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key Assignment Assignment Assignment Assignment MDCD- MSIN- MIC2_L MSO- MDTR- MIC2_R -ACZ_DET MDSR- LINE2_R FSENSE1 MRTS- MCTS- FAUDIO_JD MRI- ---- LINE2_L FSENSE2 User's Manual | WM120-CMS... -
Page 22: Front Panel (J11)
SYSTEM SETTINGS Front Panel 9 10 9 10 M.2 E Key M.2 E Key M.2 B Key M.2 B Key Assignment Assignment Assignment DIO0 V_SUS_LED DIO1 V_SUS_LED DIO2 HDD_LED SUS_LED DIO3 DIO4 SYS_RST- PWR_BTN- DIO5 DIO6 DIO7 User's Manual | WM120-CMS... -
Page 23: Lpc (J14)
Chapter 3 SYSTEM SETTINGS 9 10 M.2 E Key M.2 B Key Assignment Assignment LAD1 RST# LAD0 FRAME# VCC3 LAD3 GND1 LAD2 SERIRQ GND2 5VSB User's Manual | WM120-CMS... -
Page 24: Chapter 4 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | WM120-CMS... -
Page 25: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | WM120-CMS... -
Page 26: Rc Acpi Settings
The system automatically powers on after power failure. • S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. • Last State The system returns to the last state right before power failure. User's Manual | WM120-CMS... -
Page 27: Power & Performance
Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and Configure Intel(R) Active Management Technology Parameters. nothing is executing. ME Unconfig on RTC Clear When disabled, ME will not be unconfigured on RTC Clear. Firmware Update Configuration Configure Management Engine Technology Parameters. User's Manual | WM120-CMS... -
Page 28: Trusted Computing
WatchDog Timer Unit not available when "Security Device Support" is disabled. Select WatchDog Timer Unit — Second or Minute. SuperIO WatchDog Timer Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. User's Manual | WM120-CMS... -
Page 29: Nct5525D Super Io Configuration ► Serial Port 1 Configuration
NCT5525D Super IO Configuration ► Serial Port 1 Configuration NCT6126D HW Monitor This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Serial Port Enable or disable serial port. User's Manual | WM120-CMS... -
Page 30: Nct6126D Hw Monitor ► Smart Fan Function
Fan Speed Count 1 field. Fan Speed Count 1 to Fan Speed Count 4 Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will op- erate according to the specified boundary temperatures above-mentioned. User's Manual | WM120-CMS... -
Page 31: Usb Configuration
Enable or disable USB Mass Storage Driver Support. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or Hardware RTS/CTS. Flow Control is for RS485 mode and is only supported by Serial Port 1 (COM1). User's Manual | WM120-CMS... -
Page 32: Network Stack Configuration
Other PCI devices Set the number of times the presence of media will be checked. Use either +/- or numeric Determines OpROM execution policy for devices otherthan Network, Storage, or Video. keys to set the value. User's Manual | WM120-CMS... -
Page 33: Usb Power Control
Chapter 4 BIOS SETTINGS Advanced USB Power Control Server CA Configuration 5_Dual: Support system wake up from S3/S4 by USB KB&MS 5V: No support system wake up from S3/54 by USB KB&MS User's Manual | WM120-CMS... -
Page 34: Chipset
Please select a submenu and press Enter. The submenus are detailed in the following pages. Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | WM120-CMS... -
Page 35: Peg Port Configuration
PEG Port Configuration PEG Port Configuration ► PEG Port Feature Configuration Detect Non-Compliance Device Enable Root Port Detect Non-Compliance PCI Express Device in PEG Enable/Disable the Root Port Max Link Speed Configure PEG 0:1:0 Max Speed User's Manual | WM120-CMS... -
Page 36: Peg Port Configuration Pch-Io Configuration
DXE and If VTD_INFO_PPI is installed in PEI. ) TBT tree won't be included in the exception list. DMA Control Guarantee Enable/Disable DMA_CONTROL_GUARANTEE bit. Hybrid Storage Mode Select Hybrid Storage detection and configuration Mode. User's Manual | WM120-CMS... -
Page 37: Security
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | WM120-CMS... -
Page 38: Boot
Refer to the Advanced > CSM Configuration submenu for more information. • Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set-ting from the USB flash device. User's Manual | WM120-CMS... -
Page 39: Updating The Bios
MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | WM120-CMS...
