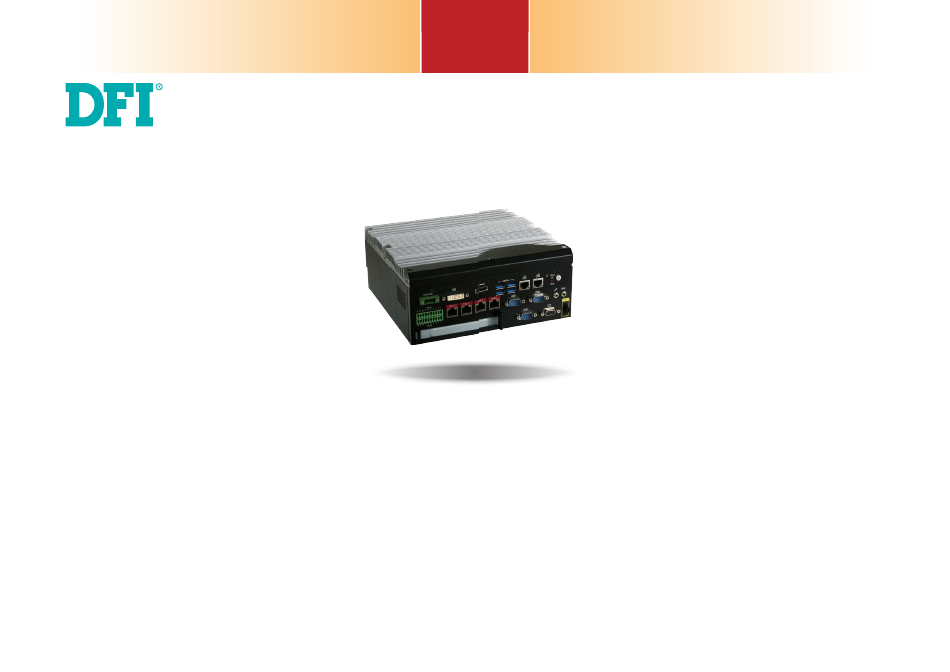

- Page 1 EC510/511-SD User’s Manual A47410911 Chapter 1 Introduction www.dfi.com...
-
Page 2: Copyright
Product names or trademarks appearing in this manual are for identification purpose only and ance could void the user’s authority to operate the equipment. are the properties of the respective owners. Shielded interface cables must be used in order to comply with the emission limits. Chapter 1 Introduction www.dfi.com... -
Page 3: Table Of Contents
Key Features ................6 Audio Connector ..................27 Front Panel Connector ................27 Specifications ................7 S/PDIF Connector ..................28 Getting to Know the EC510/EC511-SD ........8 LPC Connector .................... 28 Expansion Slots ..................29 Mechanical Dimensions ............9 12V DC-out ....................30 Digital I/O Connector (daughter board) ............31 Chapter 2 - Getting Started ........ -
Page 4: About This Manual
After installation or servicing, cover the system chassis before plugging the power cord. Battery: • Danger of explosion if battery incorrectly replaced. • Replace only with the same or equivalent type recommend by the manufacturer. • Dispose of used batteries according to local ordinance. Chapter 1 Introduction www.dfi.com... -
Page 5: Safety Precautions
• Unplug the power cord before removing the system chassis cover for installation or servic- ing. After installation or servicing, cover the system chassis before plugging the power cord. • 1 EC510/EC511-SD system unit • 1 CD disk includes: Drivers/Manual •... -
Page 6: Chapter 1 - Introduction
Chapter 1 Chapter 1 - Introduction Key Features Overview Model Name EC510/EC511-SD Processor ® 6th Generation Intel Core processors Chipset Intel Q170 Chipset ® 6 LAN ports (or 4 PoE + 2 LAN ports) 3 COM ports Display DVI (DVI-D signal) or HDMI by request... -
Page 7: Specifications
• Shock: Expansion One full-size Mini PCIe (PCIe/USB) Certifications Half sine wave 3G, 11ms, 3 shock per axis One half-size Mini PCIe (USB/mSATA) 1 x PCI slot (EC510-SD) • Vibration: IEC68-2-64 1 x PCIe x16 slot (EC511-SD) Chapter 1 Introduction www.dfi.com... -

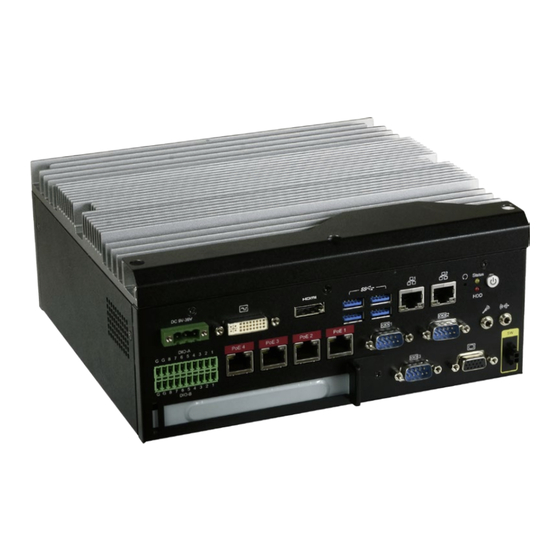

Page 8: Getting To Know The Ec510/Ec511-Sd
Chapter 1 Getting to Know the EC510/EC511-SD Front I/O Ports Power Button with LED (Green) Front View Press to power on or power off the system. DVI-I HDMI Reset Button (DVI-D signal) Status LED (Orange) USB 3.0 Press to reset the system. -
Page 9: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Chassis Dimensions Motherboard Dimensions 209.55 Rear View Gold finger PCIE X4 Gold finger PCIE X16 mini PCIe Left View Right View Front View Chapter 1 Introduction www.dfi.com... -
Page 10: Chapter 2 - Getting Started
Installing the Drivers The system package includes a CD disk. The CD includes drivers that must be installed to pro- vide the best system performance. Refer to the Supported Software chapter for instructions on installing the drivers. Chapter 2 Getting Started www.dfi.com... -
Page 11: Chapter 3 - Installing The Devices
The 6 mounting screws on the left and right sides and bottom of the system are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use. Chassis screw Chassis screw Chassis screw Chapter 3 Installing the Devices www.dfi.com... -
Page 12: Installing A Sodimm
If you plan to install only one SODIMM, install it in the DIMM1 socket (lower one and farther from the center of the mainboard). The SODIMM sockets can only accept DDR4 memory modules. Please do not install other types of memory modules. Chapter 3 Installing the Devices www.dfi.com... -
Page 13: Installing A 2.5" Sata Drive
SATA cables SATA data connector Note: SATA power connector Connect SATA cables before affixing the SATA drive on the HDD bracket as the HDD bracket would prevent access to the SATA connectors of the drive. Chapter 3 Installing the Devices www.dfi.com... -
Page 14: Installing A Mini Pcie Or Msata Card
0.82 mm and will sit flush against the connected half-size Mini PCIe on the daughter board module if such a component is used and the half-size slot is connected with a module. 0.82mm Chapter 3 Installing the Devices www.dfi.com... -
Page 15: Installing A Pci Or Pcie Expansion Card
To install an expansion card you need to first remove the slot plate and bracket by uninstalling the screw on the front chassis. Slot plate Note: Mounting screw and bracket The EC511-SD has one PCIe x16 slot with the H120-1E riser card, whereas the EC510- SD has one PCI slot with the H320-1P riser card. -
Page 16: Installing A Cpu
LGA 1151 socket comes with the protective cap. 5. Unlock the socket by pushing the load lever down, move it sideways until it is released from the retention tab, and then lift the load lever up. Alignment key Gold triangular mark Chapter 3 Installing the Devices www.dfi.com... - Page 17 10. Close the load plate and push the load lever down to lock it under the retention tab. While closing the load plate, slide the front edge of the load plate under the retention tab. Retention knob Chapter 3 Installing the Devices www.dfi.com...
-
Page 18: Chapter 4 - Jumper Settings
2. Set the jumper pins 2 and 3 to On. Wait for a few seconds and set the jumper back to its default setting: 1-2 On. 3. Now plug the power cord and power on the system. Chapter 4 Jumper Settings www.dfi.com... -
Page 19: Com1/Com2 Rs232 Power Select (Maindboard)
JP3 (for COM1) and JP2 (for COM2) are used to configure serial COM ports to normal RS232 or RS232 with power. The pin assignments (Pin 1: optional 12V and Pin 9: optional 5V) of COM1 and COM2 will vary according to JP3’s and JP2’s setting respectively. Chapter 4 Jumper Settings www.dfi.com... -
Page 20: Com1 /Com2 /Com3 Rs232/422/485 Select (Mainboard)
1. When COM1 RS232/422/485 is selected, JP5 and JP12 must be set in accordance to JP6. 2. When COM2 RS232/422/485 is selected, JP7 and JP14 must be set in accordance to JP13. 3. When COM3 RS232/422/485 is selected, JP8 and JP15 must be set in accordance to JP9. Chapter 4 Jumper Settings www.dfi.com... -
Page 21: Chapter 5 - Ports And Connectors
• PCIe expansion: PCIe or PCI slot The front panel I/O consists of the following ports from the daughter board: • Network: four RJ45 LAN ports (or PoE ports) • Digital input/output: one 16-bit DIO connector Chapter 5 Ports and Connectors www.dfi.com... -
Page 22: Com (Serial) Ports (Mainboard)
Configure the serial ports with more advanced options such as the RS485 auto flow mecha- nism in the Advanced menu (“Super IO Configuration” submenu) of the BIOS. Refer to Chapter 7 for more information. Chapter 5 Ports and Connectors www.dfi.com... -
Page 23: Rj45 Lan Ports
Configure the display devices in the Advanced menu (“Video Configuration” submenu) of the BIOS. Refer to Chapter 7 for more information. Driver Installation Install the graphics driver. Refer to Chapter 8 for more information. Chapter 5 Ports and Connectors www.dfi.com... -
Page 24: I/O Connectors
BIOS Setting Allows bidirectional parallel port operation at Configure the Serial ATA drives in the Advanced menu (“SATA Configuration” submenu) of the maximum speed. (Enhanced Parallel Port) BIOS. Refer to Chapter 7 for more information. Chapter 5 Ports and Connectors www.dfi.com... -
Page 25: Sata (Serial Ata) Power Connectors
SATA power connector and the other end to your storage device. one to act as a master by initiating data transfer. Chapter 5 Ports and Connectors www.dfi.com... -
Page 26: Cooling Fan Connectors
The Super IO menu (“PC Health Status” submenu) of the BIOS will display the current speed Pins of the cooling fans. Refer to Chapter 7 for more information. DIO7 DIO6 DIO5 DIO4 DIO3 DIO2 DIO1 DIO0 Chapter 5 Ports and Connectors www.dfi.com... -
Page 27: Audio Connector
Pin Pin Assignment Driver Installation HDD Power LED Power Install the audio driver. Refer to Chapter 8 for more information. HDD-LED Signal PWR-LED LED Power Ground Signal RST Signal Ground RESET SW ATX-SW N.C. Signal Chapter 5 Ports and Connectors www.dfi.com... -
Page 28: S/Pdif Connector
24MHz LPC bus clock. For more information about LPC bus, please refer to the Intel Low Pin Count Interface Specification Revision 1.1’. The table below indicates the pin ® functions of the LPC connector. Pin Assignment Pin Assignment L_CLK L_AD1 L_RST# L_AD0 L_FRAME# L_AD3 L_AD2 INT_SERIRQ 5VSB Chapter 5 Ports and Connectors www.dfi.com... -
Page 29: Expansion Slots
The system offers two types of riser cards. The EC510-SD is pre-installed with a riser card that DPB_LAN3_p LPC_AD0 provides one PCI slot on the front panel. Whereas the EC511-SD is pre-installed with another DPB_CTRL_CLK LPC_AD1 riser card that provides one PCIe x16 slot on the front panel. -
Page 30: 12V Dc-Out
SATA_TXp 4-pin power GND1 PCIE_ECX_TX3p Reserved GND2 DC-in PCIe x16 (PCIE1) PCIe x4 (PCIE2) SMB_CLK_RESUME DFI Board ID_0 SMB_DATA_RESUME DFI Board ID_1 INT_GPIO# DFI Board ID_2 PCIe_Wake# SATA_RXn INT_SERIRQ SATA_RXp The 4-pin vertical type connector (optional) provides low power output. -
Page 31: Digital I/O Connector (Daughter Board)
Digital I/O Connector Pins DIO-A DIO-B PoE LED Speed LED LED Behavior Description LED Behavior Description DIO1 DIO1 The system is not 10Mbps connection DFI INC. powered on. MODEL: XCT3-4LPSEGD REV: SILK_TOP DIO2 DIO2 DATE: 08/22/2017 DFI INC. Green Supplying power over... -
Page 32: Chapter 6 - Mounting Options
The following illustration shows the location and dimension of the holes for mounting the device 1. The wall mounting holes are located on the bottom of the system unit. onto a wall or rack . Mounting hole Ø8.50 Ø3.60 251.80 262.80 Mounting hole Chapter 6 Mounting Options www.dfi.com... -
Page 33: Chapter 7 - Bios Setup
“Reset” button. You may also additional options are available for that field. To display the submenu, move the highlight to restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously. that field and press <Enter>. Chapter 4 BIOS Setup www.dfi.com... -
Page 34: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59. Chapter 4 BIOS Setup www.dfi.com... - Page 35 The system appears to be off when power is re-applied after AC power loss. Wake on RTC Automatically power the system on at a particular time every day from the Real-time clock battery. Specify the wake up time of the day below: <hour> (00~23), <minute> (00~59), <second> (00~59). Chapter 4 BIOS Setup www.dfi.com...
- Page 36 Set the display device combination during system booting. Note that this option only appears when the boot type selected is dual or legacy boot type. Internal Graphics Enable, disable or to automatically detect internal graphics. Always Enabled PEG Enable or disable the PCIe graphics function. Chapter 4 BIOS Setup www.dfi.com...
- Page 37 The high-definition audio will be enabled if present and disabled otherwise. Serial ATA Port 0, 1 and 2 Enable or disable each serial ATA port: SATA Port 0 controls SATA3_0 SATA Port 1 controls SATA3_1 SATA Port 2 controls the half-size Mini PCIe slot Chapter 4 BIOS Setup www.dfi.com...
- Page 38 PCIe Root Port 6 controls LAN 2 PCIe Root Port 7 controls the full-size Mini PCIe slot PCIe Root Port 8 controls PCIE2 (x4) connector PCIe Speed Select the speed of the PCI Express Root Port: Auto, Gen1, Gen2 or Gen3. Chapter 4 BIOS Setup www.dfi.com...
- Page 39 Enable or disable flashing of the Intel ME region. ® Enable or disable Intel Active Management Technology BIOS extension. ® Un-Configure ME Clears all ME related configurations without requiring a password on the next boot. Chapter 4 BIOS Setup www.dfi.com...
- Page 40 The range of the temperature is from 0 to 127 Fan Speed Count 1 to Fan Speed Count 4 Set the fan speed. The range is from 0 (fan stop)-100% (full speed). Chapter 4 BIOS Setup www.dfi.com...
- Page 41 Set the AC power loss to Always off or Always on. When it is set to Always off, the system’s status will be power-off after an AC power loss event. When it is set to Al- ways on, the system’s status will be power-on after an AC power loss event. Chapter 4 BIOS Setup www.dfi.com...
-
Page 42: Security
Set the administrative password. The length of the password must be greater than one character and less than or equal to 10 characters. Depending on the state of power-on password selected, the supervisor password may be required during POST or when entering the BIOS setup utility. Chapter 4 BIOS Setup www.dfi.com... -
Page 43: Boot
Enable or disable boot to USB boot devices. Note: If the boot type is set to UEFI, the method for RAID volume creation will be different. Please refer to Chapter 9 ̵ - RAID for more information. Chapter 4 BIOS Setup www.dfi.com... - Page 44 For the advanced menu type: Use + and - keys to arrange the priority of the detected boot devices. For normal menu type: Select the "Boot Type Order", "Hard Disk Drive" or USB cat- egory to view and arrange the order of the listed devices. Chapter 4 BIOS Setup www.dfi.com...
-
Page 45: Exit
Select this field and then press <Enter> to exit the BIOS setup and save your changes. Load Optimal Defaults Select this field and then press <Enter> to load optimal defaults. Discard Changes Select this field and then press <Enter> to exit the BIOS setup without saving your changes. Chapter 4 BIOS Setup www.dfi.com... - Page 46 Copyright(c) 2012 - 2016, Insyde Software Corp. All Rights Reserved. Initializing Current BIOS Model name: SD263 New BIOS Model name: SD263 Current BIOS version: 65.05A New BIOS version: 65.05A Updating Block at FFFFF000h 100% 100% C:\SD263>_ Chapter 4 BIOS Setup www.dfi.com...
-
Page 47: Chapter 8 - Supported Software
Insert the DVD into a DVD-ROM drive. The auto-run screen will appear. If the “Autorun” does not automatically start, please go directly to the root directory of the DVD and double-click “Setup”. For Windows 10 Chapter 8 Supported Software www.dfi.com... - Page 48 To install the utility, click “Intel Chipset Software Installation Utility” on the main menu. 1. Setup is ready to install the utility. Click “Next” to continue. 2. Read the license agreement and then click “Yes”. Chapter 8 Supported Software www.dfi.com...
- Page 49 1 to 2 minutes (while WinSAT is running) before the Windows 7/Windows 8.1/Windows 10 desktop appears. The “blank screen” period is the time Windows is testing the graphics performance. 2. Read the license agreement and then click “Yes”. Chapter 8 Supported Software www.dfi.com...
- Page 50 Restarting the system will allow the new software installation to take effect. 5. Click “Yes, I want to restart this computer now” and then click “Finish”. Restarting the system will allow the new software installation to take effect. Chapter 8 Supported Software www.dfi.com...
- Page 51 “I accept the terms in the license agreement” if you agree the terms in the agree- ment, and then click “Next”. 3. Select the program features you want to install and then click “Next”. Chapter 8 Supported Software www.dfi.com...
- Page 52 To install the driver, click “Kernel Mode Driver Framework” on the main menu. 1. Click “Yes“ to install the update. 2. The update is being in- stalled now. Chapter 8 Supported Software www.dfi.com...
- Page 53 “I accept the terms in the license agreement” if you agree with the terms in the agreement, and then click “Next”. 5. After the installation is complete, click “Finish” to exit setup. Chapter 8 Supported Software www.dfi.com...
- Page 54 1. Setup is ready to install the driver. 4. The wizard is ready to start the installation. Click “Install”. 2. Click “Next” to continue. 5. Please wait while the program features are being installed. Chapter 8 Supported Software www.dfi.com...
- Page 55 The screenshot displayed above is for illustrative purpose only, and may not resemble the actual screen. The EC510/511-SD Utility features the following tabs: Information, HW Health, HW Healthset, Watchdog, and DIO. Click on the tabs to access each function. Chapter 8 Supported Software www.dfi.com...
- Page 56 4. Setup is currently installing the driver. After the installation is complete, click “Next”. 2. Read the license agreement and then click “Yes” if you agree with the terms in the agreement. 5. After the installation is complete, click “Finish”. Chapter 8 Supported Software www.dfi.com...
- Page 57 Click “Next” to begin the installa- tion. 2. Read the license agreement care- fully. Click “I accept the terms in the License Agreement” if you agree with the terms in the agreement and then click “Next”. Chapter 8 Supported Software www.dfi.com...
- Page 58 6. Click “Finish” to exit setup. 2. Read the license agreement care- fully. Click “I have read and accept the terms of the License Agree ment” if you agree with the terms in the agreement and then click “Next”. Chapter 8 Supported Software www.dfi.com...
- Page 59 Please exit all programs before continuing with the installation. 4. Click “Finish” to exit setup. 2. Read the license agreement carefully, accept the terms of the License Agreement, then click “Next” to continue. Chapter 8 Supported Software www.dfi.com...
- Page 60 3. Click “I accept the terms in the click “Finish.” license agreement” if agree with Restarting the system wil the terms in the agreement and allow the new software then click “Next”. installation to take effect. Chapter 8 Supported Software www.dfi.com...
- Page 61 Click “Install”. 5. Select the setup type and then 8. The setup program is currently click “Next”. installing the Microsoft Visual C++ package. 9. Click “Finish” to exit setup. 6. Click “Install” to start the installation. Chapter 8 Supported Software www.dfi.com...
- Page 62 To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu. 1. Click Next to install or click Change Destination Folder to select another folder. 2. Click “Install” to begin instal- lation. 3. Click “Finish” to exit setup. Chapter 8 Supported Software www.dfi.com...
-
Page 63: Chapter 9 - Raid
3. Change the “SATA Mode Selection” to “RAID” mode. 4. Save the changes in the “Save & Exit” menu. RAID 1 Single Drive Failure Disk mirroring 5. Reboot the system. Block-level data striping with Chapter 5 RAID RAID 5 Single Drive Failure distributed parity Chapter 9 RAID www.dfi.com... - Page 64 6. Press <Enter>. 7. Use the up or down arrow keys to select the strip size and press <Enter>. 8. Enter the volume size and press <Enter>. 9. At the prompt, press <Y> to confirm volume creation. Chapter 9 RAID www.dfi.com...
- Page 65 4. Read the license agree- ment and click “I accept the terms in the License Agreement.“ Then, click Next. Chapter 5 RAID 7. Confirm the installation and click Next. Chapter 9 RAID www.dfi.com...
- Page 66 Chapter 9 Chapter 5 8. Click “Yes, I want to restart this computer now” to complete the installation and then click Finish. Chapter 5 RAID Chapter 9 RAID www.dfi.com...
-
Page 67: Chapter 10 - Intel Amt Settings
It protects the network from threats at the source by proactively blocking incoming threats, reactively containing infected clients before they impact the network, and proactively alerting when critical software agents are removed. 3. In the “Active Management Technology Support” menu, select “Enabled” for “Intel AMT Support”. Chapter 10 Intel AMT Settings www.dfi.com... - Page 68 Copyright(C) 2003-15 Intel Corporation. All Rights Reserved. MAIN MENU MEBx Login > Intel (R) ME General Settings > Intel (R) AMT Configuration MEBx Exit Intel(R) ME Password [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit Chapter 10 Intel AMT Settings www.dfi.com...
- Page 69 Intel(R) Management Engine BIOS Extension v11.0.0.0005/Intel(R) ME v11.0.0.1205 Copyright(C) 2003-15 Intel Corporation. All Rights Reserved. MAIN MENU > Intel (R) ME General Settings > Intel (R) AMT Configuration MEBx Exit [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit Chapter 10 Intel AMT Settings www.dfi.com...
- Page 70 > User Consent Password Policy <Anytime> > Network Setup Activate Network Access Unconfigure Network Access <Full Unprovision> > Remote Setup And Configuration > Power Control [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit Chapter 10 Intel AMT Settings www.dfi.com...
- Page 71 <Full Unprovi- Disabled sion> Enabled > Remote Setup And Configuration > Power Control [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes Chapter 10 Intel AMT Settings www.dfi.com...
- Page 72 < Enabled> Storage Redirection <Enabled> KVM Feature Selection <Enabled> NONE Disabled Enabled [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes Chapter 10 Intel AMT Settings www.dfi.com...
- Page 73 > Remote Setup And Configuration > Power Control Default Password Only During Stepup And Configuration Anytime [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes Chapter 10 Intel AMT Settings www.dfi.com...
- Page 74 Shared/ Dedicated FQDN <Shared> Dynamic DNS Update <Disabled> Dynamic DNS Update <Disabled> Computer Domain Name Disabled Enabled [Enter] = Complete Entry [Esc]= Discard Changes [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes Chapter 10 Intel AMT Settings www.dfi.com...
- Page 75 Unconfigure Network Access > Remote Setup And Configuration Full Unprovision > Power Control [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes [↑↓] = Move Highlight [Enter] = Complete Entry [Esc]= Discard Changes Chapter 10 Intel AMT Settings www.dfi.com...
- Page 76 > RCFG > TLS PKI > TLS PKI Provisioning Mode: PKI Provisioning server address [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit Chapter 10 Intel AMT Settings www.dfi.com...
- Page 77 PKI DNS Suffix > Manage Hashes This will activate Remote Condigura- tion. Continue: (Y/N) Disabled Enabled [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit Chapter 10 Intel AMT Settings www.dfi.com...
- Page 78 Activate Network Access Unconfigure Network Access <Full Unprovision> > Remote Setup And Configuration > Power Control [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit [↑↓] = Move Highlight [Enter] = Select Entry [Esc]= Exit Chapter 10 Intel AMT Settings www.dfi.com...
- Page 79 This configurations are effective only after AMT provisioning has started Intel (R) ME ON in Host Sleep States <Mobile: ON in S0, ME Wake in S3, S4-5 (AC only)> Idle Timeout 65535 Timeout Value (1-65535) 65535 <ENTER> = Complete Entry [ESC]= Discard Changes Chapter 10 Intel AMT Settings www.dfi.com...
