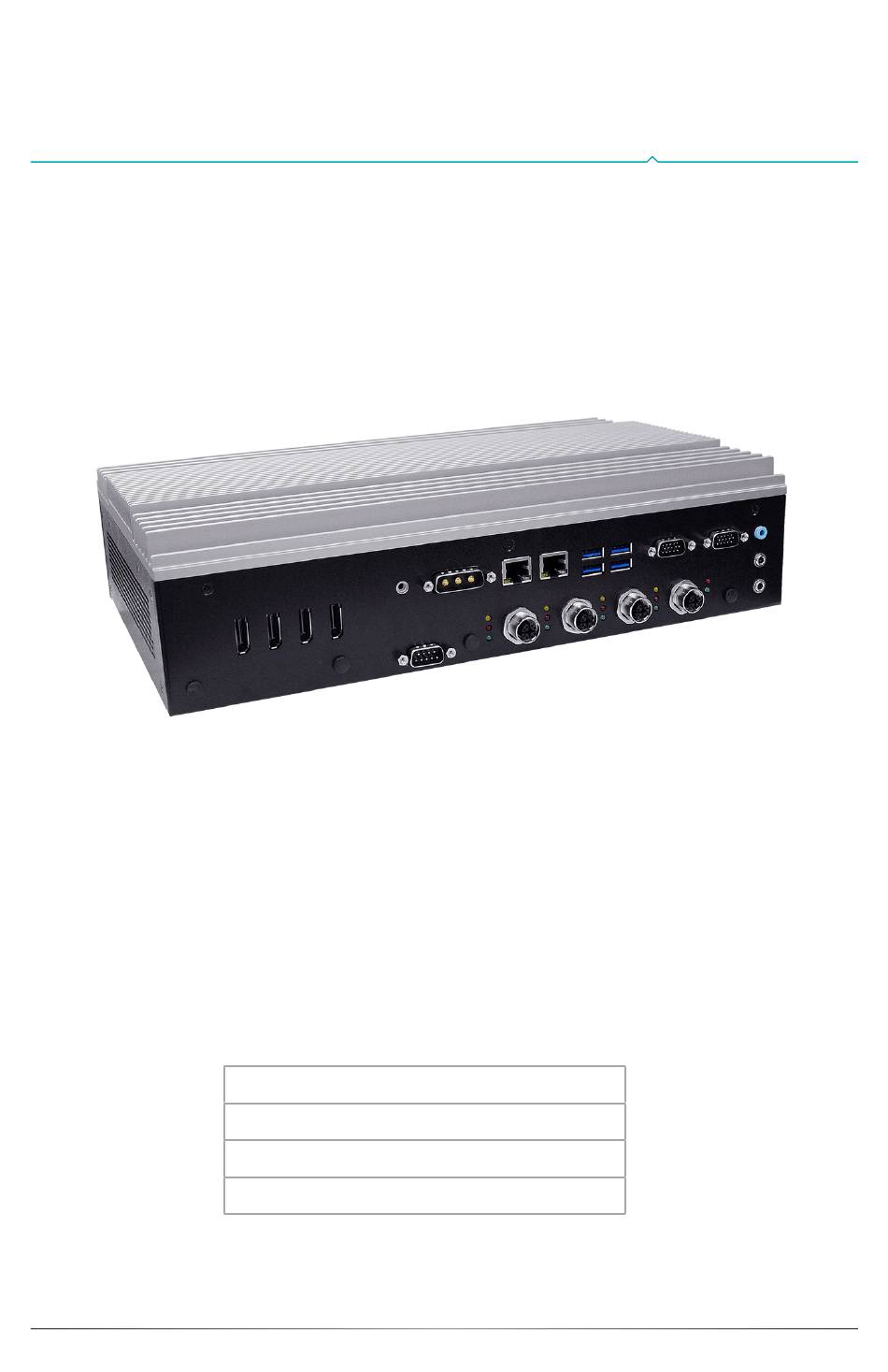

Quick Installation Guide
VC500-CMS-MXM
In-Vehicle Edge AI System
© May 28, 2024 DFI Inc.
Package Contents
• 1 VC500-CMS-MXM System Unit
• 1 3W3 Adaptor Cable
• 1 Mounting Bracket
• 1 Power Connector
www.dfi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VC500-CMS-MXM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DFI VC500-CMS-MXM

  • Page 1 Quick Installation Guide VC500-CMS-MXM In-Vehicle Edge AI System www.dfi.com Package Contents • 1 VC500-CMS-MXM System Unit • 1 3W3 Adaptor Cable • 1 Mounting Bracket • 1 Power Connector © May 28, 2024 DFI Inc.
  • Page 2: Product Overview

    Product Overview Front View - 4PoE Line-In Display Ports 3W3 Connector Mic-In Antenna Hole LAN 1/2 USB 3.1 Gen 2 COM5 Line-Out LED Indicators Quick Installation Guide | VC500-CMS-MXM...
  • Page 3 Front View - 4 PoEM12 Line-In Display Ports Mic-In 3W3 Connector Antenna Hole LAN 1/2 USB 3.1 Gen 2 COM5 Line-Out LED Indicators Quick Installation Guide | VC500-CMS-MXM...
  • Page 4 Front View - 10G Line-In Display Ports Mic-In 3W3 Connector LAN 1/2 Antenna Hole COM5 USB 3.1 Gen 2 Line-Out Quick Installation Guide | VC500-CMS-MXM...
  • Page 5 Rear View SIM Slots Power Button Remote Switch Reset Button Power Status LED (Yellow) Antenna Hole Storage Activity LED (Red) COM 1/2/3/4 USB 3.1 Gen 2 DP++/ HDMI 2.5" SATA Drive Bays DP++ Quick Installation Guide | VC500-CMS-MXM...
  • Page 6: Removing The Chassis Cover

    The 12 screws on both left and right sides of the system are used to secure the cover to the chassis. Remove the screws and put them in a safe place for later use. Bottom View Left View Right View Quick Installation Guide | VC500-CMS-MXM...
  • Page 7 Step 2: Lift the cover to open the system. Step 3: The board can be easily accessed after the chassis cover is removed. Quick Installation Guide | VC500-CMS-MXM...
  • Page 8: Installing An Antenna

    Connect the internal cable to the board's antenna connector, screw the antenna connector through the antenna hole with washers and nuts, and screw on the antenna as illustrated below. Antenna Chassis Wall Module Connector Cable Antenna Connector Washer Quick Installation Guide | VC500-CMS-MXM...
  • Page 9 The 2.5" HDD/SDD slots on the frong side of the system. Find the keyslot. Insert the key included inside the package to unlock it. Lock: Unlock: Step 2: Once unlocked, press in gently the eject button until the tray is released. Quick Installation Guide | VC500-CMS-MXM...
  • Page 10 Push the tray back in and close the drive latch to lock the drive in place. Important: Excessive force may damage its mechanical parts. If the HDD/SSD is inserted backward into the slot, forcing the device may damage the slot. Quick Installation Guide | VC500-CMS-MXM...
  • Page 11 3. Locate the M.2 socket on the system board 4. Make sure the notch on card is aligned to the key on the socket. 5. Make sure the standoff screw is removed from the standoff. Quick Installation Guide | VC500-CMS-MXM...
  • Page 12 Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. Quick Installation Guide | VC500-CMS-MXM...
  • Page 13 1. Make sure the PC and all other peripheral devices connected to it has been powered down. 2. Disconnect all power cords and cables. 3. Locate the SO-DIMM socket on the system board 4. Make sure the notch on memory card is aligned to the key on the socket. Quick Installation Guide | VC500-CMS-MXM...
  • Page 14 Inspect that the clip sits in the notch. If not, please pull the clips outward, release and remove the card, and mount it again. Quick Installation Guide | VC500-CMS-MXM...
  • Page 15: Mounting Options

    Locate the mounting holes on the bottom of the system as shown in the photo. Screw on the two brackets onto the system with six screws as illustrated below. Wall Mount Bracket Wall Mount Bracket Quick Installation Guide | VC500-CMS-MXM...
  • Page 16 DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the download page at www.dfi.com/ downloadcenter, or via the QR codes to the right.
