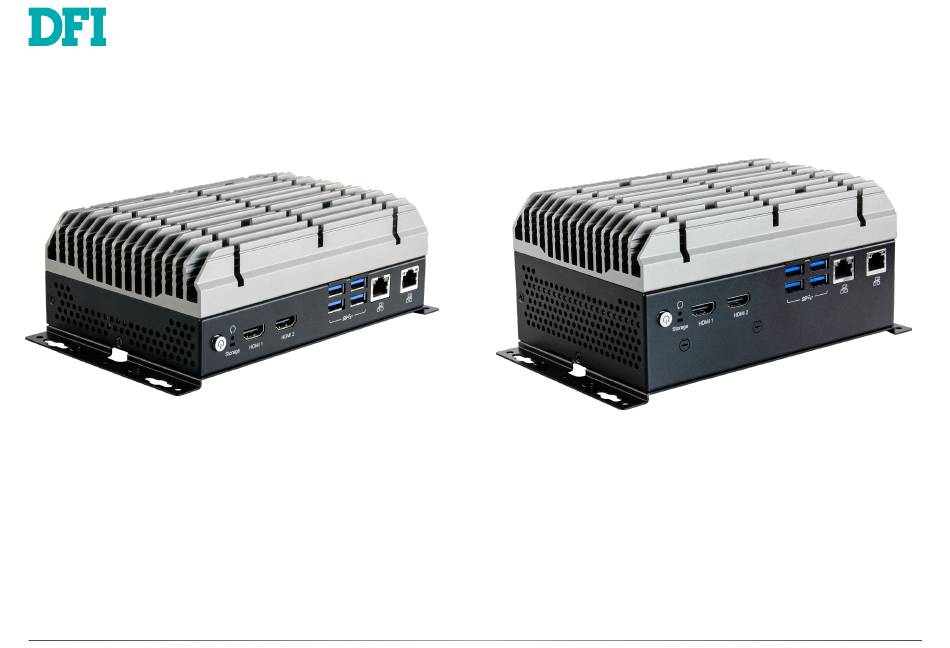

- Page 1 ES220F-CS Compact Fanless Embedded System User’s Manual © May 23, 2023 DFI Inc.
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | ES220F-CS...
-
Page 3: Table Of Contents
► PCI Express Configuration ...........26 PCH-IO Configuration ► SATA And RST Configuration ........26 PCH-IO Configuration ► HD Audio Configuration ..........27 Security ..........................28 Secure Boot ........................28 Boot ............................29 Save & Exit ..........................29 Updating the BIOS ........................30 Notice: BIOS SPI ROM......................30 User's Manual | ES220F-CS... - Page 4 The manual is subject to change and update without notice, and may be based on editions that do not resemble your actual products. Please visit our website or contact our sales representa- • 1 ES220F-CS system unit with wallmount tives for the latest editions. •...
- Page 5 Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | ES220F-CS...
-
Page 6: Chapter 1 - Introduction
Chapter 1 - Introduction X Overview- 1 Storage Front View Rear View Power Button Grounding Hole Status LED, Reset Button COM 1 HDMI 2.0 COM 2 USB 3.1 USB 2.0 LAN 1 & LAN 2 DC-in User's Manual | ES220F-CS... -
Page 7: Chapter 1 - Introduction
Chapter 1 - Introduction X Overview- 3 Storage Front View Rear View Power Button Grounding Hole Status LED, Reset Button COM 1 HDMI 2.0 COM 2 USB 3.1 USB 2.0 LAN 1 & LAN 2 DC-in User's Manual | ES220F-CS... -
Page 8: Dimensions
1 x M.2 SSD + 2 x 2.5" SSD (optional) DDR4: 2 x DDR4 SODIMM up to 64GB RAID Support: RAID support NAS/Server application Rich I/O: 2 x Intel GbE, 4 x USB 3.1, 2 x USB 2.0, 2 x COM 3 Storage User's Manual | ES220F-CS... -
Page 9: Specifications
1 x M.2 2280 M key (PCIe x4/SATA 3.0) 1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi ETHERNET Interface 2 x GbE RJ-45 Controller 2 x Intel I219/I210IT (10/100/1000Mbps) (Support Intel iAMT) ® ® Indicators 1 x PWD LED 1 x HDD LED User's Manual | ES220F-CS... - Page 10 TDP 35W : -5° C or 45° C cTPU 15W -20° to 60° C Storage Tem- -20° to 60° C perature Relative 5 to 90% RH Humidity STANDARDS AND Certifications FCC, CE Class B, RoHS, WEEE, UKCA CERTIFICATIONS User's Manual | ES220F-CS...
-
Page 11: Chapter 2 - Hardware Installations
Remove the screws and put them in a safe place for later use. And then tilt up the cover to remove it. Step 3: The board can be easily accessed after the chassis cover is removed. Top View Top View Bottom View Bottom View User's Manual | ES220F-CS... -
Page 12: Installing An M.2 Card
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | ES220F-CS... -
Page 13: Installing An Antenna
Connect the internal cable to the board's antenna connector, screw the antenna connector through the antenna hole with washers and nuts, and screw on the antenna as illustrated below. Knockout tabs for Antenna Hole Antenna Chassis Wall Module Connector Cable Antenna Connector Washer User's Manual | ES220F-CS... -
Page 14: Mounting Options
Locate the mounting holes on the bottom of the system as shown in the photo. Screw on the two brackets onto the system with four screws as illustrated below. 1 storage 3 storage Wall Mount Bracket Wall Mount Bracket Wall Mount Bracket Wall Mount Bracket User's Manual | ES220F-CS... -
Page 15: Vesa Mount
Mount the bracket onto the tapped holes on the back of a monitor, a stand or a wall rack. If equipment installed on monitor by VESA mount, the weight for monitor should under 6.1kg 1 storage 3 storage VESA Mount Bracket VESA Mount Bracket User's Manual | ES220F-CS... -
Page 16: Chapter 4 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | ES220F-CS... -
Page 17: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | ES220F-CS... -
Page 18: Rc Acpi Configuration
The system automatically powers on after power failure. S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. Last State The system returns to the last state right before power failure. User's Manual | ES220F-CS... -
Page 19: Power & Performance
Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled. C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. Note: The sub-menus are detailed in following sections. User's Manual | ES220F-CS... -
Page 20: Trusted Computing
Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. Note: The sub-menus are detailed in following sections. User's Manual | ES220F-CS... -
Page 21: Nct5525D Super Io Configuration ► Serial Port 1, 2 Configuration
► Serial Port 1, 2 Configuration This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures. Serial Port Enable or disable serial port. Electrical Interface Mode Choose mode between RS232 / RS485 / RS422 User's Manual | ES220F-CS... -
Page 22: Usb Configuration
Keep USB devices available only for EFI applications. • Auto Disable Legacy support if no USB devices are connected. XHCI Hand-off Enable or disable XHCI Hand-off. USB Mass Storage Driver Support Enable or disable USB Mass Storage Driver Support. User's Manual | ES220F-CS... -
Page 23: Usb Power Control
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | ES220F-CS... -
Page 24: Chipset
X Chipset Chipset Graphics Configuration Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | ES220F-CS... -
Page 25: Pch-Io Configuration
Assign the maximum value of Top Of Lower Usable DRAM (TOLUD). Select to specify a fixed value, or select "Dynamic" so that the assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller. User's Manual | ES220F-CS... -
Page 26: Pch-Io Configuration ► Pci Express Configuration
This option allows you to create RAID or Intel Rapid Storage configuration along with Intel® Optane™ system acceleration on Serial ATA devices. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | ES220F-CS... -
Page 27: Pch-Io Configuration ► Hd Audio Configuration
Chapter 4 BIOS SETTINGS Chipset PCH-IO Configuration ► HD Audio Configuration HD Audio Control the detection of the HD Audio device. Disabled HDA will be unconditionally disabled. Enabled HDA will be unconditionally enabled. User's Manual | ES220F-CS... -
Page 28: Security
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | ES220F-CS... -
Page 29: Boot
Select this option to save BIOS configuration settings to a USB flash device. ► Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | ES220F-CS... -
Page 30: Updating The Bios
MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | ES220F-CS...
