KS156-AL Installation Guide
Features

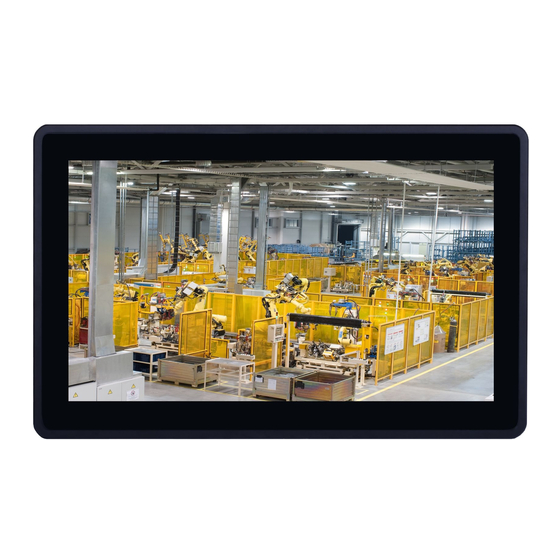

• 15.6" 1366x768 TFT LCD Panel with Touch Screen
• 1x 2.5" SATA drive bay
• IP65 Front Panel Protection
• VESA/Panel Mount
• Rich I/O: 2 LAN, 2 COM, and 4 USB 3.0
DFI reserves the right to change the specifications at any time prior to
the product's release. For the latest revision and more details of the
installation procedure, please refer to the user's manual on the website.
www.dfi.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS156-AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DFI KS156-AL

Summary of Contents for DFI KS156-AL

  • Page 1 • VESA/Panel Mount • Rich I/O: 2 LAN, 2 COM, and 4 USB 3.0 DFI reserves the right to change the specifications at any time prior to the product's release. For the latest revision and more details of the installation procedure, please refer to the user's manual on the website.
  • Page 2 Panel COM 1 (RS232/RS422/RS485) LAN1 LAN2 COM 2 (RS232/RS422/RS485) USB 3.0 Bottom View HDMI Power Button Rear View...

  • Page 3: Removing The Chassis Cover

    Removing the Chassis Cover 1. Make sure the system and all other peripheral devices connected to it have been powered off. 2. Disconnect all power cords and cables. 3. The 6 mounting screws on the rear chassis are used to secure the cover to the system.

  • Page 4: Installing A Sata Drive

    Installing a SATA drive The system can accommondate one 2.5-inch SATA drive. Please use the following procedure to install a SATA drive. 1. Uninstall the SATA mount bracket from the system. Align the mounting holes of the SATA drive with the mounting holes on the SATA mount bracket and use the provided mounting screws to attach the SATA drive to the bracket.

  • Page 5: Installing An M.2 Card

    Installing an M.2 Card The system is equipped with one M.2 socket, supporting both the M.2 22x42mm and 22x80mm (key B) form factors. Use the following procedure to install an M.2 card: 1. To install an M.2 type 2242 card, please install the standoff at the 42mm mounting position first.
  • Page 6 3. Push down on the other end of the M.2 card and secure the card on the mainboard with the provided mounting screw. Mounting screw M.2 card Note: The M.2 socket supports PCIe, USB, and SATA signals and can accommodate common mobile broadband and storage modules.

  • Page 7: Installing A Mini Pcie Card

    Installing a Mini PCIe Card The system board is equipped with one Mini PCIe slot that supports PCIe and USB signals. Use the following procedure to install a Mini PCIe card: 1. Grasp the Mini PCIe card by its edges and align the notch in the connector of the PCIe card with the key in the connector on the system board.

  • Page 8: Mounting Options

    Mounting Options VESA mount The VESA mount kit includes the following: • 2 VESA mount brackets • Bracket screws VESA mount bracket 1 VESA mount bracket 2 Please use the following procedure to mount your system: 1. Select a place on the wall where you will mount the Panel PC. 2.
  • Page 9 3. Attach the other bracket (VESA mount bracket 2) to the rear of the Panel PC. Mounting screw VESA mount bracket 2 Hooks 4. Slide the Panel PC to "VESA mount bracket 1" to attach the two brackets with the hooks. Then tighten the screw to secure the assembly in place. Screw...
  • Page 10 Panel mount The panel mounting kit includes the following: • 10 mounting clamps Please use the following procedure to mount your system: 1. Select a place on the panel (or wall) where you will mount the Panel PC. 2. Cut out a shape on the panel that corresponds to the Panel PC’s rear dimensions (396.2mm x 246.5mm) and ensure that the Panel PC can be fitted into the panel properly.
  • Page 11 5. The first and second clamps must be positioned and secured diagonally prior to mounting the rest of the clamps. Tighten the clamp’s screw using an electric screwdriver by pressing the flat top side of the screw onto the back of the panel. The illustration below shows that all clamps are properly mounted.

  • Page 12: Board Layout And Jumper Settings

    Board Layout and Jumper Settings System System Fan 1 Fan 2 DC-in Digital I/O SPI Flash Digital I/O Power BIOS SMBus Front Panel Battery Clear CMOS Data (JP6) Chrontel HDMI CH7517 Asmedia ASM1442 Intel Atom USB 0/1 USB 3.0 LVDS Backlight Power Select (JP9) USB 2/4 USB 3.0...
