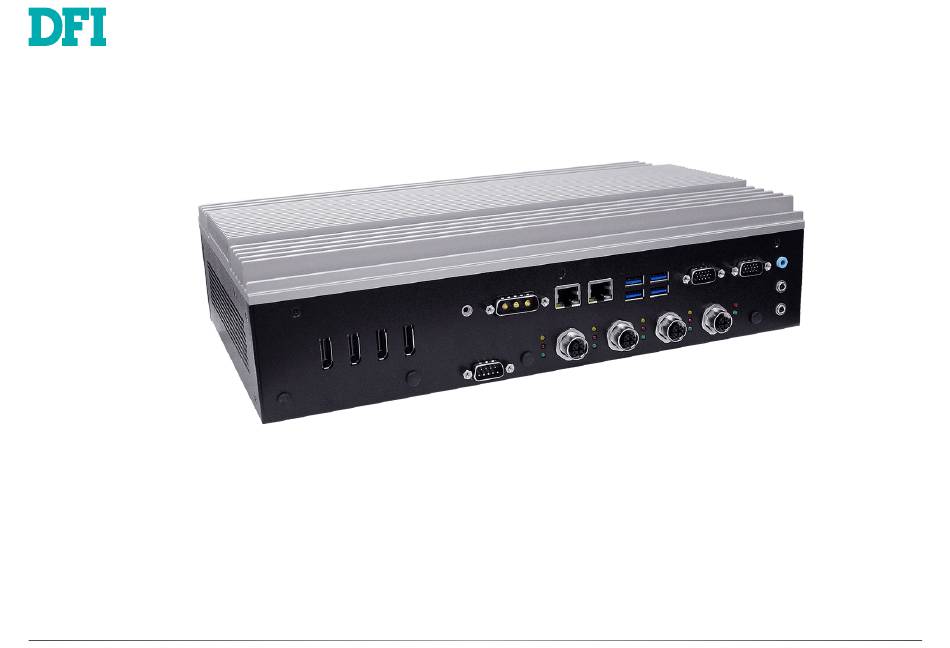

- Page 1 VC500-CMS-MXM In-Vehicle Edge AI System User’s Manual © May 28, 2024 DFI Inc.
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | VC500-CMS-MXM...
-
Page 3: Table Of Contents
► Serial Port 1,2 Configuration ....29 NCT6126D Super IO Configuration ► Serial Port 3,4 Configuration ....29 NCT6126D Super IO Configuration ► Serial Port 5,6 Configuration ....30 NCT6126D HW Monitor ....................30 NCT6126D HW Monitor ► Smart FAN Function ..........31 User's Manual | VC500-CMS-MXM... - Page 4 The manual is subject to change and update without notice, and may be based on editions that do not resemble your actual products. Please visit our website or contact our sales representa- • 1 VC500-CMS-MXM System Unit tives for the latest editions. •...
- Page 5 Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | VC500-CMS-MXM...
-
Page 6: Chapter 1 - Introduction
Display Ports Line-In Line-In Display Ports 3W3 Connector Mic-In Mic-In 3W3 Connector Antenna Hole LAN 1/2 LAN 1/2 Antenna Hole USB 3.1 Gen 2 COM5 USB 3.1 Gen 2 COM5 Line-Out LED Indicators Line-Out LED Indicators User's Manual | VC500-CMS-MXM... -
Page 7: Front View - 10G
Reset Button Remote Switch Power Status LED (Yellow) Antenna Hole LAN 1/2 Antenna Hole Storage Activity LED (Red) USB 3.1 Gen 2 COM5 COM 1/2/3/4 USB 3.1 Gen 2 DP++/ HDMI 2.5" SATA Drive Bays Line-Out DP++ User's Manual | VC500-CMS-MXM... -
Page 8: Dimensions
4 x RJ45 or M12 X-coded type PoE ports at 15.4W AI Accelerated Support MXM GPU module Multiple Expansions: 1x miniPCIe and 4x M.2 slots Dual SIM for single Modem Two SIM cards for 5G/LTE module User's Manual | VC500-CMS-MXM... -
Page 9: Specifications
Supports 8bit DI & 8 bit DO with 2KV isolation Audio 1x Line-out,1 x Mic-in and 1x Line-in with 3.5mm audio jacks Antenna 2 x antenna holes DC in W3 3 pin connector Optional RJ45 port for OOB management User's Manual | VC500-CMS-MXM... - Page 10 10% to 95% (non-condensing) STANDARDS AND Shock MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support) CERTIFICATIONS Vibration MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI Certifciation FCC, E-Mark User's Manual | VC500-CMS-MXM...
-
Page 11: Chapter 2 - Hardware Installations
The 12 screws on both left and right sides of the system are used to secure the cover to the Left View chassis. Remove the screws and put them in a safe place for later use. Bottom View Right View User's Manual | VC500-CMS-MXM... - Page 12 Chapter 2 HARDWARE INSTALLATION Step 2: Lift the cover to open the system. Step 3: The board can be easily accessed after the chassis cover is removed. User's Manual | VC500-CMS-MXM...
-
Page 13: Installing An Antenna
Chassis Wall There are antenna holes reserved on the front and the rear side of the system and covered by rubber plugs. Please remove the plug prior to installing an antenna. Module Connector Cable Antenna Connector Washer User's Manual | VC500-CMS-MXM... -
Page 14: Inserting A 2.5" Hdd/Sdd
Once unlocked, press in gently the eject button until the tray is released. Important: Excessive force may damage its mechanical parts. If the HDD/SSD is inserted backward into the slot, forcing the device may damage the slot. User's Manual | VC500-CMS-MXM... -
Page 15: Installing A 3W3 Adaptor Cable
To assembly a 3W3 adaptor cable, please look at the illustration below for more information. To purchase the accessories below, please contact our local dealer or DFI sales representative for more information. █ 3W3 adaptor cable (with a power switch & an ignition cable ) Part No.: A81-004363-054G... -
Page 16: Installing The M.2 Module
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. User's Manual | VC500-CMS-MXM... -
Page 17: Installing The So-Dimm Module
Inspect that the clip sits in the notch. If not, please pull the clips outward, release and remove the card, and mount it again. Step 3 User's Manual | VC500-CMS-MXM... -
Page 18: Mounting Options
Locate the mount- ing holes on the bottom of the system as shown in the photo. Screw on the two brackets onto the system with six screws as illustrated below. Wall Mount Bracket Wall Mount Bracket User's Manual | VC500-CMS-MXM... -
Page 19: Chapter 3 - System Settings
ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection. User's Manual | VC500-CMS-MXM... -
Page 20: Jumper Settings
Chapter 3 SYSTEM SETTINGS X Jumper Settings M.2 Key Power ( M2JP2 ) Clear BIOS (JP1 ) „ 1-2 On: Normal (default) „ 2-3 On: Clear BIOS „ 1-2 On: 3V3 (default) „ 2-3 On: 3V3SB User's Manual | VC500-CMS-MXM... -
Page 21: Key Power ( M2Jp1 )
Chapter 3 SYSTEM SETTINGS Mini PCIe Power ( MPJP1 ) M.2 Key Power ( M2JP1 ) „ 2-3 On: 3V3 (default) „ 1-2 On: 3V3SB „ 1-2 On: 3V3SB „ 2-3 On: 3V3 (default) User's Manual | VC500-CMS-MXM... -
Page 22: Usb Power Control ( Jp24 )
DI 4~7 Power (ISJP3) ISJP5： ISJP1, ISJP2, ISJP3, ISJP4： „ 1-2 On: 5VSB (default) „ 1-2 On: DIO Power (default) „ 1-2 On: 5VSB „ 2-3 On: 5V (default) „ 2-3 On: 5V „ 2-3 On: GND User's Manual | VC500-CMS-MXM... -
Page 23: Power On/ Off Control Table ( Sw3 )
0 (On) 24V_SEL 0 (On) 1 Min 3 Min 5 Min Power On Delay On/Off 10 Min Pin 2 On/Off 15 Min PON_EN Defined by BIOS (default) 0 (On) 30 Min Defined by jumper 1 Hr User's Manual | VC500-CMS-MXM... -
Page 24: Chapter 4 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | VC500-CMS-MXM... -
Page 25: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | VC500-CMS-MXM... -
Page 26: Rc Acpi Settings
The system enter soft-off state after power failure. Power-on signal input is abled, only one thread per enabled core is enabled. required to power up the system. Last State The system returns to the last state right before power failure. User's Manual | VC500-CMS-MXM... -
Page 27: Power & Performance
Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. Firmware Update Configuration Configure Management Engine Technology Parameters. Note: The sub-menus are detailed in following sections. User's Manual | VC500-CMS-MXM... -
Page 28: Trusted Computing
"Security Device Support" is disabled. Select WatchDog Timer Unit — Second or Minute. SuperIO WatchDog Timer Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. Note: The sub-menus are detailed in following sections. User's Manual | VC500-CMS-MXM... -
Page 29: Nct6126D Super Io Configuration ► Serial Port 1,2 Configuration
Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. Electrical Interface Mode Electrical Interface Mode Choose mode between RS232 / RS485 / RS422 Choose mode between RS232 / RS485 / RS422 User's Manual | VC500-CMS-MXM... -
Page 30: Nct6126D Super Io Configuration ► Serial Port 5,6 Configuration
NCT6126D HW Monitor NCT6126D Super IO Configuration ► Serial Port 5,6 Configuration This section displays the system’s health information, i.e. voltage readings, CPU and system temperatures, and fan speed readings Serial Port Enable or disable serial port. User's Manual | VC500-CMS-MXM... -
Page 31: Serial Port Console Redirection
SYS Smart Fan/CPU Smart Fan Control = [Disabled] • Fix Fan Speed Count Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will always operate at the specified speed regardless of gauged temperatures. User's Manual | VC500-CMS-MXM... -
Page 32: Serial Port Console Redirection ► Console Redirection Settings
Chapter 4 BIOS SETTINGS Advanced Serial Port Console Redirection ► Console Redirection Settings Serial Port Console Redirection ► Console Redirection Settings User's Manual | VC500-CMS-MXM... -
Page 33: Serial Port Console Redirection ► Console Redirection Settings
Select data bits: 7 bits or 8 bits. Parity Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or RTS/CTS. User's Manual | VC500-CMS-MXM... -
Page 34: Usb Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | VC500-CMS-MXM... -
Page 35: Csm Configuration
Controls the execution of UEFI and Legacy Network OpROM Storage Controls the execution of UEFI and Legacy Storage OpROM Video Controls the execution of UEFI and Legacy Video OpROM Other PCI devices Determines OpROM execution policy for devices otherthan Network, Storage, or Video. User's Manual | VC500-CMS-MXM... -
Page 36: Chipset
X Chipset Chipset Graphics Configuration Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | VC500-CMS-MXM... -
Page 37: Peg Port Configuration
PEG Port Configuration PEG Port Configuration ► PEG Port Feature Configuration Detect Non-Compliance Device Enable Root Port Detect Non-Compliance PCI Express Device in PEG Enable/Disable the Root Port Max Link Speed Configure PEG 0:1:0 Max Speed User's Manual | VC500-CMS-MXM... -
Page 38: Peg Port Configuration Pch-Io Configuration
DXE and If VTD_INFO_PPI is installed in PEI. ) TBT tree won't be included in the exception list. DMA Control Guarantee Enable/Disable DMA_CONTROL_GUARANTEE bit. Hybrid Storage Mode Select Hybrid Storage detection and configuration Mode. User's Manual | VC500-CMS-MXM... -
Page 39: Pch-Io Configuration ► Pci Express Configuration
This option allows you to create RAID or Intel Rapid Storage configuration along with Intel® Optane™ system acceleration on Serial ATA devices. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | VC500-CMS-MXM... -
Page 40: Hd Audio Configuration
Chapter 4 BIOS SETTINGS Chipset PCH-IO Configuration ► HD Audio Configuration HD Audio Control the detection of the HD Audio device. Disabled HDA will be unconditionally disabled. Enabled HDA will be unconditionally enabled. User's Manual | VC500-CMS-MXM... -
Page 41: Security
Secure Boot. Press Enter and a prompt will show up for you to confirm. Reset To Setup Mode Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. User's Manual | VC500-CMS-MXM... -
Page 42: Vehicle
System Off Delay - Range 0 ~36000 (Sec.) with 1 second interval. Rearrange the system boot order of available boot devices. OS Protection Time (Sec.) OS Protection Time- Range: Range 120~36000 (Sec.) with 10 second intervals. Battery(Vin) Low Monitor Battery(Vin) Low Monitor User's Manual | VC500-CMS-MXM... -
Page 43: Save & Exit
Select this option to save BIOS configuration settings to a USB flash device. ► Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | VC500-CMS-MXM...
