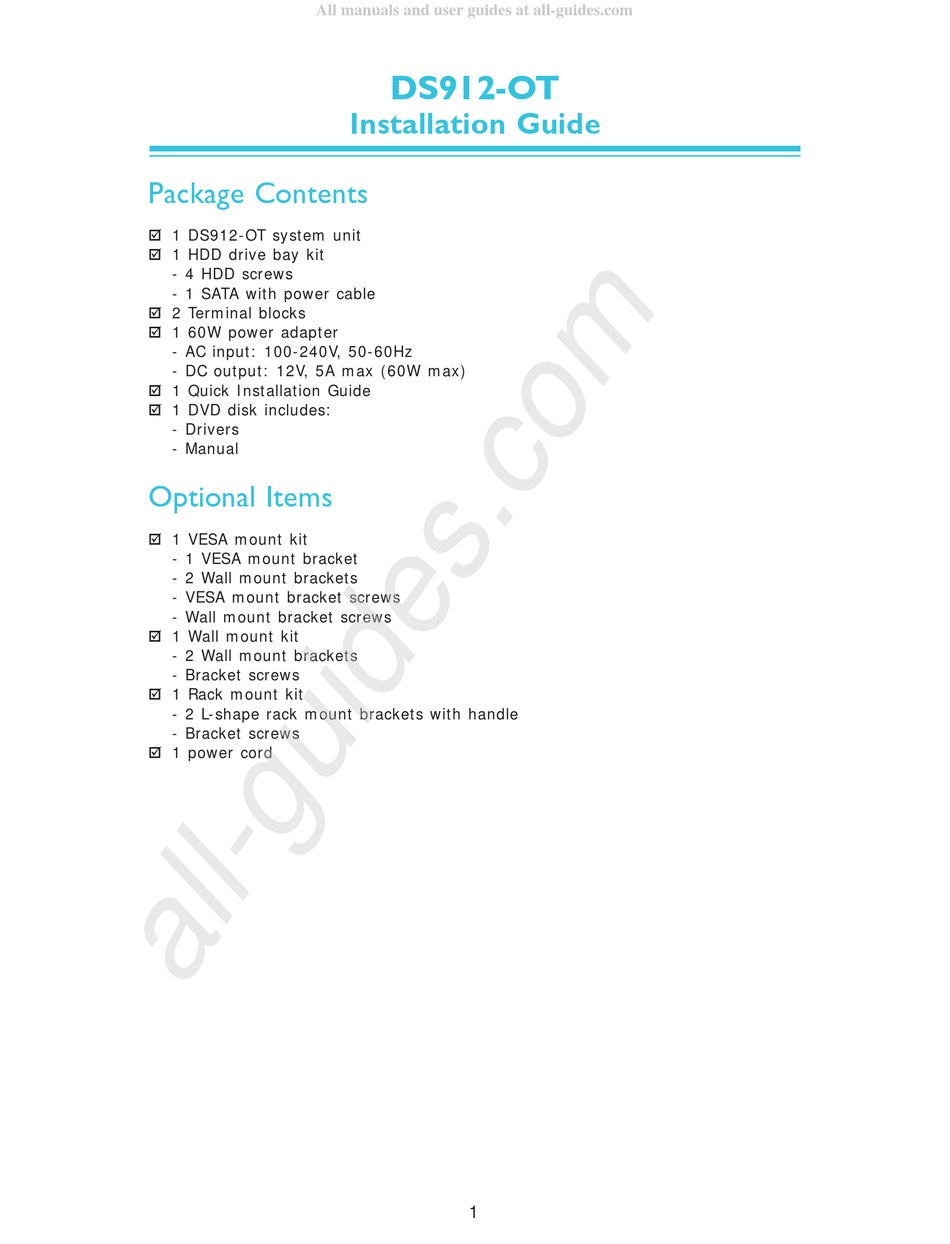

Package Contents
 1 DS912-OT system unit
 1 HDD drive bay kit
- 4 HDD screws
- 1 SATA with power cable
 2 Terminal blocks
 1 60W power adapter
- AC input: 100-240V, 50-60Hz
- DC output: 12V, 5A max (60W max)
 1 Quick Installation Guide
 1 DVD disk includes:
- Drivers
- Manual
Optional Items
 1 VESA mount kit
- 1 VESA mount bracket
- 2 Wall mount brackets
- VESA mount bracket screws
- Wall mount bracket screws
 1 Wall mount kit
- 2 Wall mount brackets
- Bracket screws
 1 Rack mount kit
- 2 L-shape rack mount brackets with handle
- Bracket screws
 1 power cord
DS912-OT
Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS912-OT and is the answer not in the manual?

Questions and answers

Related Manuals for DFI DS912-OT

Summary of Contents for DFI DS912-OT

  • Page 1 All manuals and user guides at all-guides.com DS912-OT Installation Guide Package Contents  1 DS912-OT system unit  1 HDD drive bay kit - 4 HDD screws - 1 SATA with power cable  2 Terminal blocks  1 60W power adapter...

  • Page 2: Front View

    Antenna Hole Antenna Hole Power PCIe x16 DVI-I HDMI (x4 signal) Line-Out 12V DC-in Key Features DS912-OT T56N/T40N ® Chipset A50M ® 1 LAN port 1 5-pole RS232 COM terminal block 1 DB-9 RS232/422/485 COM Dual Displays DVI-I + HDMI...

  • Page 3: Removing The Chassis Cover

    All manuals and user guides at all-guides.com Removing the Chassis Cover 1. Make sure the system and all other peripheral devices connected to it has been powered-off. 2. Disconnect all power cords and cables. 3. The 5 mounting screws on the sides of the system are used to secure the cover to the chassis.
  • Page 4 All manuals and user guides at all-guides.com 4. Lift the cover upward, slide it backward and then remove it from the chassis. Slide the Cover Backward Lift the Cover Upward Rear Side of the Chassis 5. The SODIMM socket and SATA drive bay are readily accessible after removing the chassis cover.

  • Page 5: Installing A Sodimm

    All manuals and user guides at all-guides.com Installing a SODIMM 1. Locate the SODIMM socket on the system board. SODIMM socket 2. Note the key on the socket. The key ensures the module can be plugged into the socket in only one direction.
  • Page 6 All manuals and user guides at all-guides.com 3. Grasping the module by its edges, align the module into the socket at an ap- proximately 30 degrees angle. Apply fi rm even pressure to each end of the module until it slips down into the socket. The contact fi ngers on the edge of the module will almost completely disappear inside the socket.

  • Page 7: Installing A Sata Drive

    All manuals and user guides at all-guides.com Installing a SATA Drive 1. Remove the 4 mounting screws that secure the HDD brackets to the drive bay. Mounting screw 2. Align the mounting holes of the SATA drive with the mounting holes on the HDD bracket and then use the provided mounting screws to secure the drive in place.
  • Page 8 All manuals and user guides at all-guides.com 3. Place the SATA drive (with HDD bracket) into the chassis. Replace the 4 mounting screws you removed in step 1. Mounting screw 4. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.
  • Page 9 All manuals and user guides at all-guides.com SATA power connector SATA data connector SATA power/data connector...

  • Page 10: Connecting Cables To Terminal Blocks

    All manuals and user guides at all-guides.com Connecting Cables to Terminal Blocks 1. Insert one end of the cable into the holes on the terminal block, and use the screwdriver to fasten the cables. 2. Connect the terminal block to the connector on the system, and use the screwdriver to secure the terminal block in place.

  • Page 11: Mounting Options

    All manuals and user guides at all-guides.com Mounting Options Wall Mounting The Wall Mounting kit includes the following: • 2 Wall mount brackets • Bracket screws 1. At the bottom side of the system, use the provided mounting screws to secure the wallmount brackets on each side of the system.

  • Page 12: Vesa Mounting

    All manuals and user guides at all-guides.com VESA Mounting Mounting Kit • 1 VESA mount bracket • 2 Wall mount brackets • VESA bracket screws • Wall mount bracket screws 1. Used four mounting screws to attach the VESA mount bracket. 2.
  • Page 13 All manuals and user guides at all-guides.com 100.00 75.00...

  • Page 14: Rack Mounting

    All manuals and user guides at all-guides.com Rack Mounting The Rack Mounting kit includes the following: • 2 L-shape rack mount brackets with handle • Bracket screws 1. The 4 mounting holes on the sides of the system are used to mount the rack- mount bracket.
  • Page 15 All manuals and user guides at all-guides.com 2. Use the provided mounting screws to secure the rackmount brackets on each side of the system. Rackmount bracket 3. The photo below shows the rackmount brackets properly installed on each side of the system.

  • Page 16: Board Layout And Jumper Settings

    All manuals and user guides at all-guides.com Board Layout and Jumper Settings Reset USB 0 USB 1 DVI-I Line-out Power DC IN USB 0/ USB 1 Power Select (JP5) ASMEDIA ASMEDIA ASM1442 ASM1442 ALC262 System fan 2 Mini PCIe 2 DDR3_1 SODIMM1 DDR3_2...
