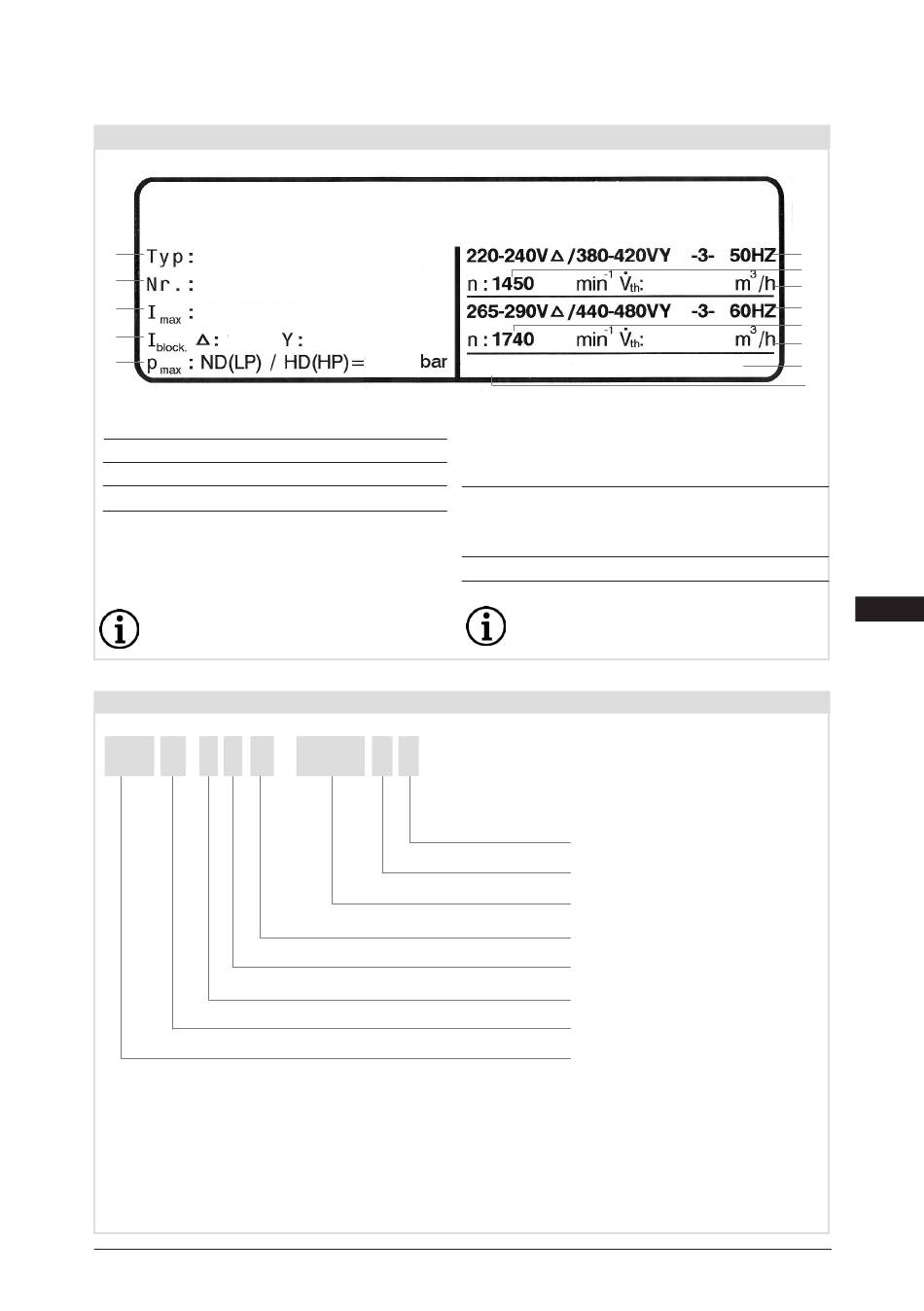

2| Product description
2.2 Name plate (example)
BOCK
HGX34e/315-4
1
2
AS38125A001
3
21,1/12,2A
4
111A
5
Fig. 3
1 Type designation
2 Machine number
3 maximum operating current
4 Starting current (rotor blocked)
5 ND (LP): max. admissible operating
pressure (g) Low pressure side
HD (HP): max. admissible operating
pressure (g) High pressure side
Observe the limits of application
diagrams!
2.3 Type key (example)
HG X 3 e 380-4 S 4
) HG - Hermetic Gas-cooled (suction gas-cooled)
¹
) X - Ester oil charge (HFC refrigerant, e.g. R134a, R404A/R507, R407C)
²
)
3 S - More powerful motor
© Danfoss | Climate Solutions | 2024.07
64A
19/28
/
Öl: BOCK lub E55
IP66
6 Voltage, circuit, frequency
7 Nominal rotation speed
8 Displacement
9 Voltage, circuit, frequency
10 Nominal rotation speed
11 Displacement
12 Oil type filled at the factory
13 Terminal box protection type
Electrical accessories can change
the IP protection class!
Motor variant
Number of poles
Swept volume
e-series
Numbers of cylinders
Size
Oil charge ²
)
Series ¹
AQ451923867809en-000301 | 7
