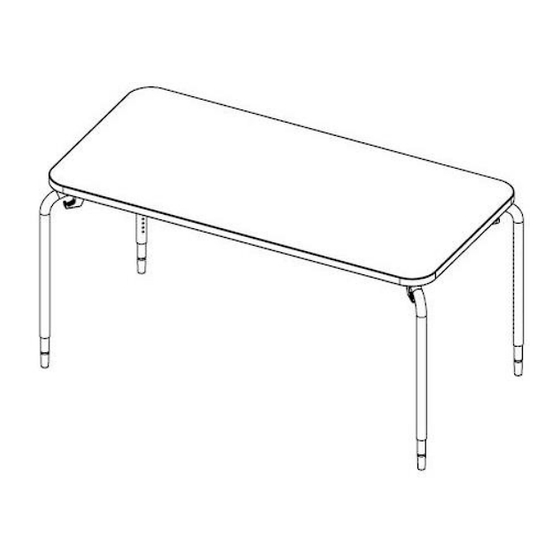

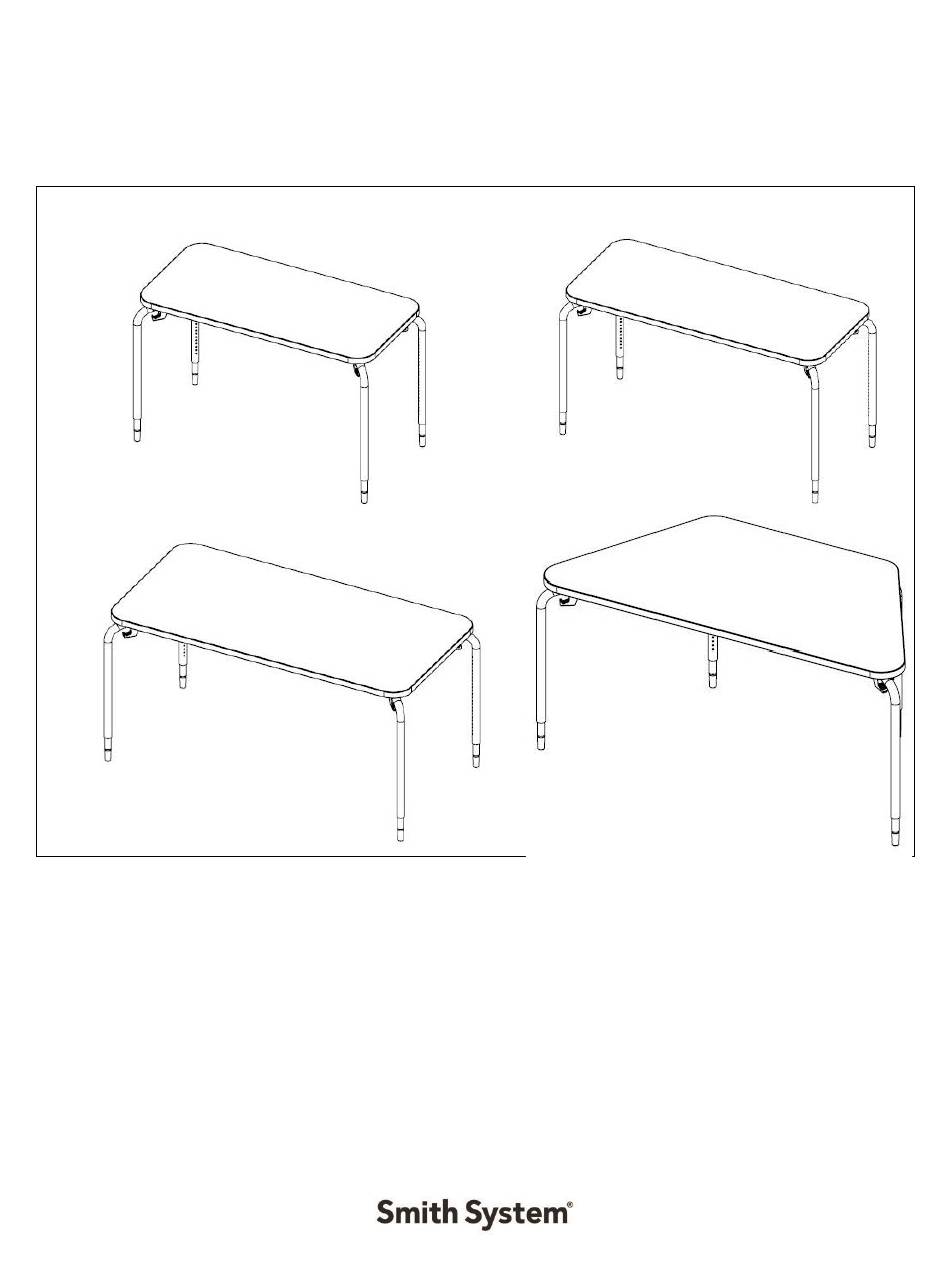

- Page 1 Assembly Instructions NUMBERS DESKS MODEL NUMBERS 02240, 02241, 02242, 02243 If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179723 REVISED: 07/2024...
-
Page 2: Optional Accessories
Hardware and Components NO. 10X1-1/8” TORX BUTTON HEAD SCREW QTY. 8 PER LEG ASSEMBLY T25 TORX POWER BIT 2” QTY. 1 NUMBERS DESK LEG CUSTOM SET SCREW 3/8-16 X 1” QTY. 2 PER LEG 1/8” ALLEN KEY QTY. 1 NUMBERS SINGLE LEG ASSEMBLY OPTIONAL ACCESSORIES HIGH RANGE QTY. -
Page 3: Special Notes
Special Notes: • Check that all components are accounted for and undamaged before assembling. • Please assemble the product in a clean and dry area. • Clean the product with a mild cleaner and a damp cloth. • MAX TORQUE ON WOOD SCREWS IS 50 IN-LB, DO NOT USE IMPACT DRIVERS Document #: 179723 REVISED: 07/2024... - Page 4 Assembly Instructions 1. Place wood top on clean smooth surface upside down with the pilot holes facing up. Align holes in the single legs with the pilot holes. Using the included T25 torx bit, fasten all single leg assemblies using 8x NO. 10X1-1/8” torx button head screws per leg. MAX TORQUE ON WOOD SCREWS IS 50 IN-LB, DO NOT USE IMPACT DRIVERS 2.
- Page 5 Assembly Instructions 3. To change the leg set to casters, unscrew threaded nylon glide, caster will press fit into the same leg insert. Replacement Hardware Pack PART NUMBER: 60291-R NO. 10X1-1/8” TORX BUTTON HEAD SCREW NUMBERS DESK LEG CUSTOM SET SCREW QTY.
- Page 6 Assembly Instructions 4. For tables greater that 48” long. Identify predrilled hole pattern along enter of underside worksurface and install stiffener using provided wood screws. Document #: 179723 REVISED: 07/2024...
