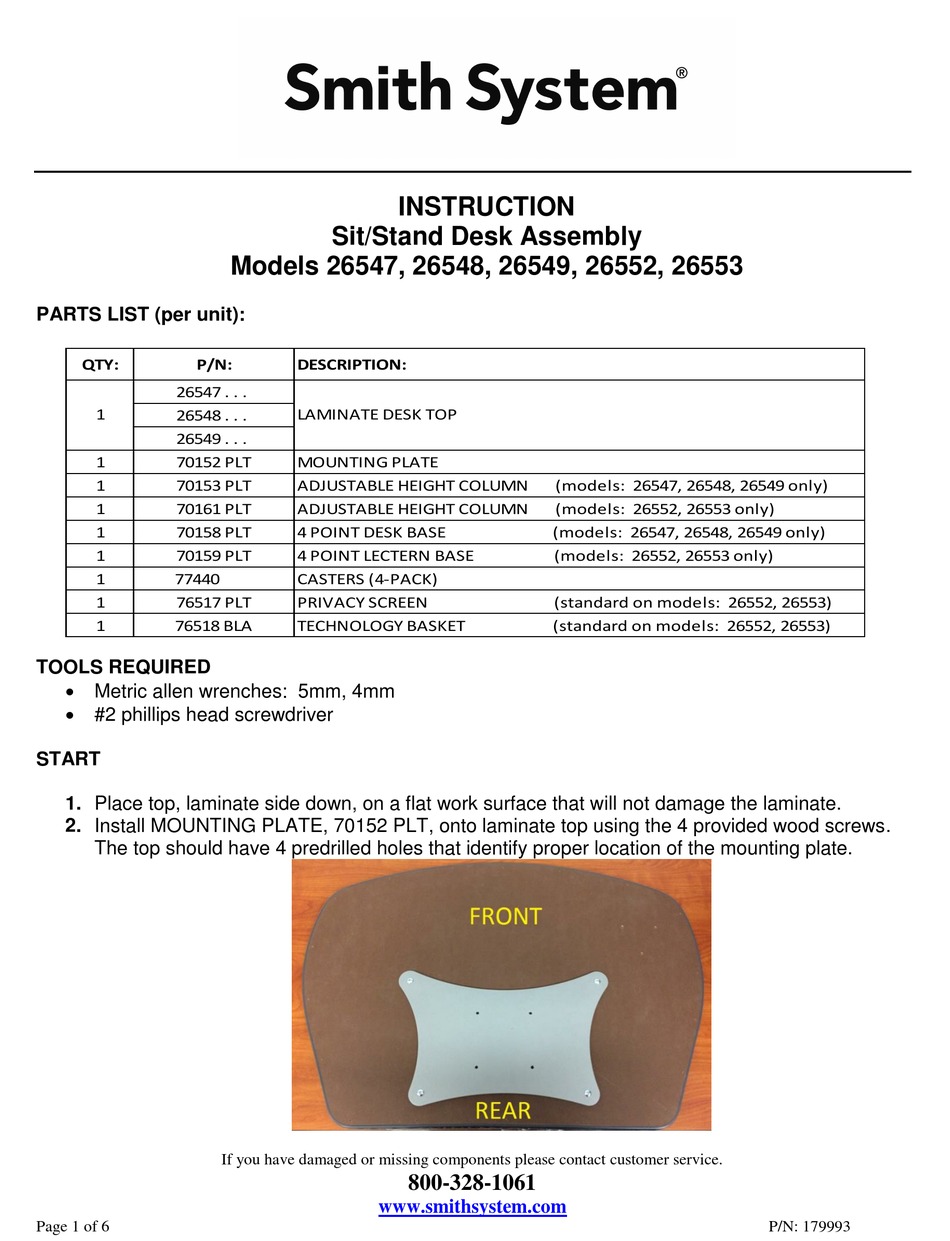

PARTS LIST (per unit):
QTY:
P/N:
26547 . . .
1
26548 . . .
26549 . . .
1
70152 PLT
1
70153 PLT
1
70161 PLT
1
70158 PLT
1
70159 PLT
1
77440
1
76517 PLT
1
76518 BLA
TOOLS REQUIRED
Metric allen wrenches: 5mm, 4mm
#2 phillips head screwdriver
START
1. Place top, laminate side down, on a flat work surface that will not damage the laminate.
2. Install MOUNTING PLATE, 70152 PLT, onto laminate top using the 4 provided wood screws.
The top should have 4 predrilled holes that identify proper location of the mounting plate.
Page 1 of 6
INSTRUCTION
Sit/Stand Desk Assembly
Models 26547, 26548, 26549, 26552, 26553
DESCRIPTION:
LAMINATE DESK TOP
MOUNTING PLATE
ADJUSTABLE HEIGHT COLUMN
ADJUSTABLE HEIGHT COLUMN
4 POINT DESK BASE
4 POINT LECTERN BASE
CASTERS (4-PACK)
PRIVACY SCREEN
TECHNOLOGY BASKET
If you have damaged or missing components please contact customer service.
www.smithsystem.com
(models: 26547, 26548, 26549 only)
(models: 26552, 26553 only)
(models: 26547, 26548, 26549 only)
(models: 26552, 26553 only)
(standard on models: 26552, 26553)
(standard on models: 26552, 26553)
800-328-1061
P/N: 179993
Advertisement
Table of Contents
Related Manuals for SMITH SYSTEM 26547
Summary of Contents for SMITH SYSTEM 26547
- Page 1 INSTRUCTION Sit/Stand Desk Assembly Models 26547, 26548, 26549, 26552, 26553 PARTS LIST (per unit): QTY: P/N: DESCRIPTION: 26547 . . . LAMINATE DESK TOP 26548 . . . 26549 . . . 70152 PLT MOUNTING PLATE 70153 PLT ADJUSTABLE HEIGHT COLUMN...
- Page 2 3. Install LIFTING COLUMN, 70153 PLT (or 70161 PLT), as shown using (4) provided machine screws. Ensure column is installed with cable pointing in correct direction as shown. 4. Install Activating Lever (attached to LIFTING COLUMN) using provided wood screws and cable clip.
- Page 3 5. Install CASTERS (77440), to 4-POINT DESK BASE (70158 PLT or 70159 PLT) by pressing the caster stems into each hole until fully seated. 6. Position DESK BASE 70158 PLT (or 70159 PLT) onto LIFTING COLUMN as shown. 7. For base 70158PLT, use cup shaped bottom (provided with DESK BASE) to cap the column; cup is pre-attached on 70159 PLT.
- Page 4 8. Turn desk upright. Proceed to Step 9 for models 26552 and 26553. Otherwise you are done. 9. Lay privacy screen on table top with long brackets pre-positioned as shown. If you have damaged or missing components please contact customer service. 800-328-1061 www.smithsystem.com Page 4 of 6...
- Page 5 10. Install L-brackets using washers and cap nuts as shown. NOTE: An adjustable wrench or pliers can be used to hand tighten the cap nuts until snug. 11. Center privacy screen with brackets under table top as shown in preparation to install wood screws into bottom of wood top.
- Page 6 12. Install rear wood screws on both sides first. Then install front wood screws on both sides. 13. INSTALLING WIRE TECHNOLOGY BASKET a. Use the (4) black pre-marked dots located on the bottom face of the table top as a general guide for where the wire basket should be positioned.
