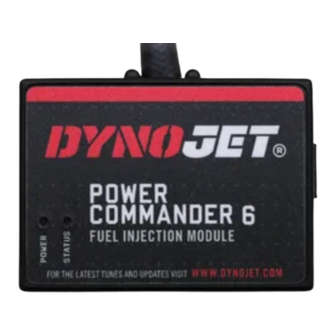

POWER COMMANDER 6
Installation Guide for: PC6-18025
Model Coverage: 2016-2018 KTM 250/350/450 SXF/XCF
PARTS LIST
1
POWER COMMANDER 6
1
INSTALLATION GUIDE
1
USB CABLE
2
DYNOJET DECALS
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION.
THE IGNITION MUST BE TURNED OFF BEFORE INSTALLATION.
2
POWER COMMANDER DECALS
2
VELCRO STRIPS
1
ALCOHOL SWAB
3
ZIP TIES
IPC6-18025.01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynojet POWER COMMANDER 6
Summary of Contents for Dynojet POWER COMMANDER 6
- Page 1 POWER COMMANDER 6 Installation Guide for: PC6-18025 Model Coverage: 2016-2018 KTM 250/350/450 SXF/XCF PARTS LIST POWER COMMANDER 6 POWER COMMANDER DECALS INSTALLATION GUIDE VELCRO STRIPS USB CABLE ALCOHOL SWAB DYNOJET DECALS ZIP TIES PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION.
-
Page 2: Wire Connections
Shifter (Input 1 or 2) Used for clutch-less full throttle upshifts. Insert the wires from the Dynojet quick shifter into either Input 1 or Input 2. The polarity of the wires is not important. Set to Input 2 by default. - Page 3 INSTALLING THE POWER COMMANDER 6 Remove the side panels, seat, shrouds, and fuel tank. Remove the air fi lter. Position the PC6 in the rear fender cavity as shown. Reinstall the air fi lter. Route the PC6 harness up through the open space next to the battery cable.
- Page 4 Attach the PC6 connectors to the coil and stock harness. crank Reinstall the fuel tank, shrouds, seat, and side panels. Download the latest map fi les from our web site at dynojet.com/tunes. 4 2016-2018 KTM 250/350/450 SXF/XCF INSTALLATION GUIDE...
- Page 5 2191 MENDENHALL DRIVE, NORTH LAS VEGAS, NV 89081 - 800-992-4993 - DYNOJET.COM © 2016-2022 DYNOJET RESEARCH ALL RIGHTS RESERVED...
