Wire Connections - Dynojet POWER COMMANDER 6 Installation Manual

INPUT ACCESSORY GUIDE
OPTIONAL ACCESSORY INPUTS
Map
(Input 1 or 2) The PC6 has the ability to hold 2 different base maps. You can switch on the fl y between these two
base maps when you hook up a switch to the MAP inputs. You can use any open/close type switch. The polarity of
the wires is not important.
Shifter
(Input 1 or 2) Used for clutch-less full throttle upshifts. Insert the wires from the Dynojet quick shifter into either
Input 1 or Input 2. The polarity of the wires is not important. Set to Input 2 by default.
Speed
If your application has a speed sensor then you can tap into the signal side of the sensor and run a wire into this
input. This will allow you to calculate gear position in the Control Center Software. Once gear position is setup
you can alter your map based on gear position and setup gear dependent kill times when using a quick shifter.
Analog
This input is for a 0-5v signal such as engine temp, boost, etc. Once this input is established you can alter your
fuel curve based on this input in the Power Core software.
Launch
You can connect a wire to either Input 1 or Input 2 and then the other end to a switch. This switch when engaged
(continuity) will only allow the RPM to be raised to a certain limit (set in the software). When released, you will
have full RPM.

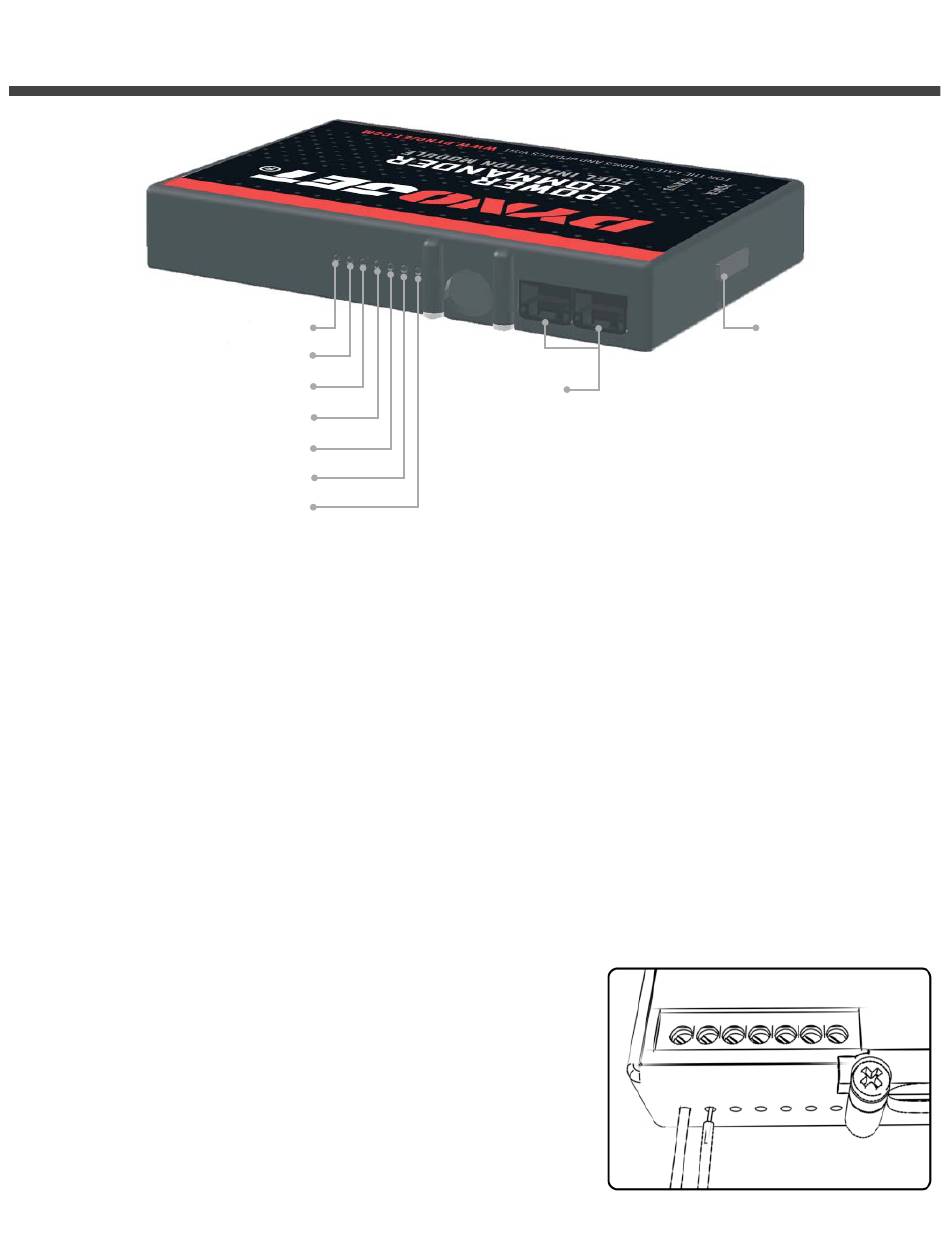

WIRE CONNECTIONS

To input wires into the PC6 fi rst remove the rubber plug on the backside of
the unit and loosen the screw for the corresponding input. Using a 22-24
gauge wire, strip about 10mm from its end. Push the wire into the hole of
the PC6 until it stops and then tighten the screw. Make sure to reinstall
the rubber plug.
NOTE: If you tin the wires with solder it will make inserting them easier.
2 2016-2018 KTM 250/350/450 SXF/XCF
MAP
MAP
SWITCH INPUT
SWITCH INPUT
SPEED
ANALOG
CRANK
EXPANSION
PORTS 1 & 2
USB
CONNECTION
INSTALLATION GUIDE
