Dynojet POWER COMMANDER 6 Installation Manual page 4

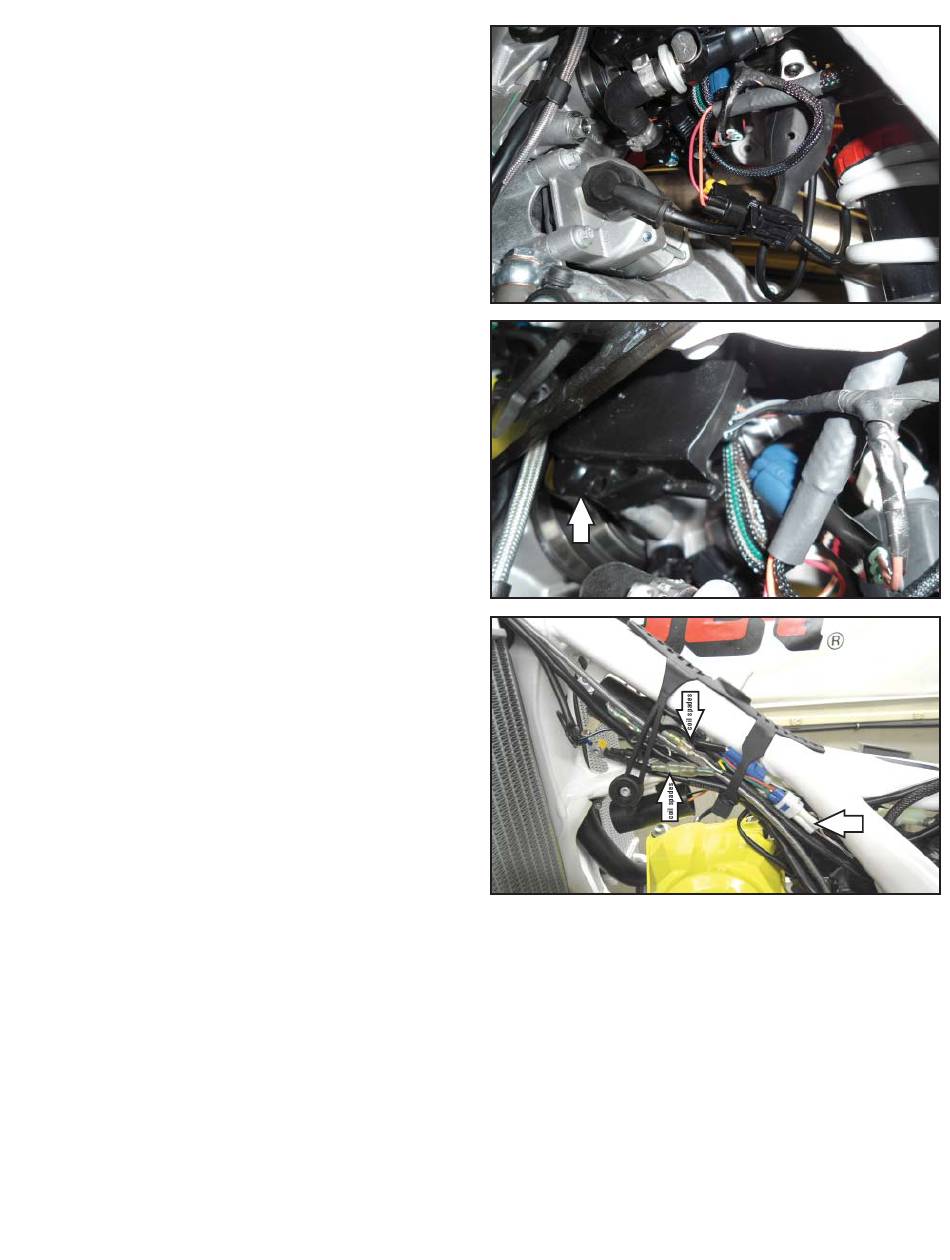

7 Locate and unplug the 2-pin injector connector on the
bottom of the throttle body.
8 Attach the PC6 connectors to the stock injector and
the stock wiring harness.
9 Remove the small screw securing the Throttle
Position Sensor (TPS) cover to the throttle body as
shown.
10 Locate the TPS connector behind the cover and
unplug it.
11 Attach the PC6 connectors to the TPS sensor and the
stock wiring harness.
12 Secure the TPS cover using the screw removed
earlier.
13 Locate and unplug the 2-pin crank connection above
the cylinder head.
14 Attach the PC6 connectors to the stock crank
sensor connectors.
15 Locate and unplug the coil signal spade connection
above the cylinder head.
16 Attach the PC6 connectors to the coil and stock
harness.
17 Reinstall the fuel tank, shrouds, seat, and side
panels.
Download the latest map fi les from our web site at
dynojet.com/tunes.
4 2016-2018 KTM 250/350/450 SXF/XCF
