Cypress Semiconductor CY8C24223A Specification Sheet

Psoc programmable system-on-chip
Hide thumbs Also See for CY8C24223A:
Table of Contents

Advertisement

Quick Links

Download this manual
Features
■
Powerful Harvard Architecture Processor
❐
M8C Processor Speeds to 12 MHz
❐
8x8 Multiply, 32-Bit Accumulate
❐
Low Power at High Speed
❐
4.75V to 5.25V Operating Voltage
❐
Extended Temperature Range: -40°C to +125°C
■
Advanced Peripherals (PSoC Blocks)
❐
Six Rail-to-Rail Analog PSoC Blocks Provide:
• Up to 14-Bit ADCs
• Up to 9-Bit DACs
• Programmable Gain Amplifiers
• Programmable Filters and Comparators
❐
Four Digital PSoC Blocks Provide:
• 8 to 32-Bit Timers, Counters, and PWMs
• CRC and PRS Modules
• Full-Duplex UART
• Multiple SPI™ Masters or Slaves
• Connectable to all GPIO Pins
❐
Complex Peripherals by Combining Blocks
■
Precision, Programmable Clocking
❐
Internal ± 4% 24 MHz Oscillator
❐
High Accuracy 24 MHz with Optional 32 kHz Crystal and PLL
❐
Optional External Oscillator, up to 24 MHz
❐
Internal Oscillator for Watchdog and Sleep
■
Flexible On-Chip Memory
❐
4K Bytes Flash Program Storage 100 Erase/Write Cycles
❐
256 Bytes SRAM Data Storage
❐
In-System Serial Programming (ISSP)
❐
Partial Flash Updates
❐
Flexible Protection Modes
■
Programmable Pin Configurations
❐
25 mA Sink on All GPIO
❐
Pull Up, Pull Down, High Z, Strong, or Open Drain Drive
Modes on All GPIO
❐
Up to Ten Analog Inputs on GPIO
❐
Two 30 mA Analog Outputs on GPIO
❐
Configurable Interrupt on All GPIO
Cypress Semiconductor Corporation
Document Number: 3-12029 Rev. *E
®
PSoC
Programmable System-on-Chip™
■
Additional System Resources
❐
I
❐
Watchdog and Sleep Timers
❐
User-Configurable Low Voltage Detection
❐
Integrated Supervisory Circuit
❐
On-Chip Precision Voltage Reference
■
Complete Development Tools
❐
Free Development Software (PSoC Designer™)
❐
Full-Featured, In-Circuit Emulator and Programmer
❐
Full Speed Emulation
❐
Complex Breakpoint Structure
❐
128K Bytes Trace Memory

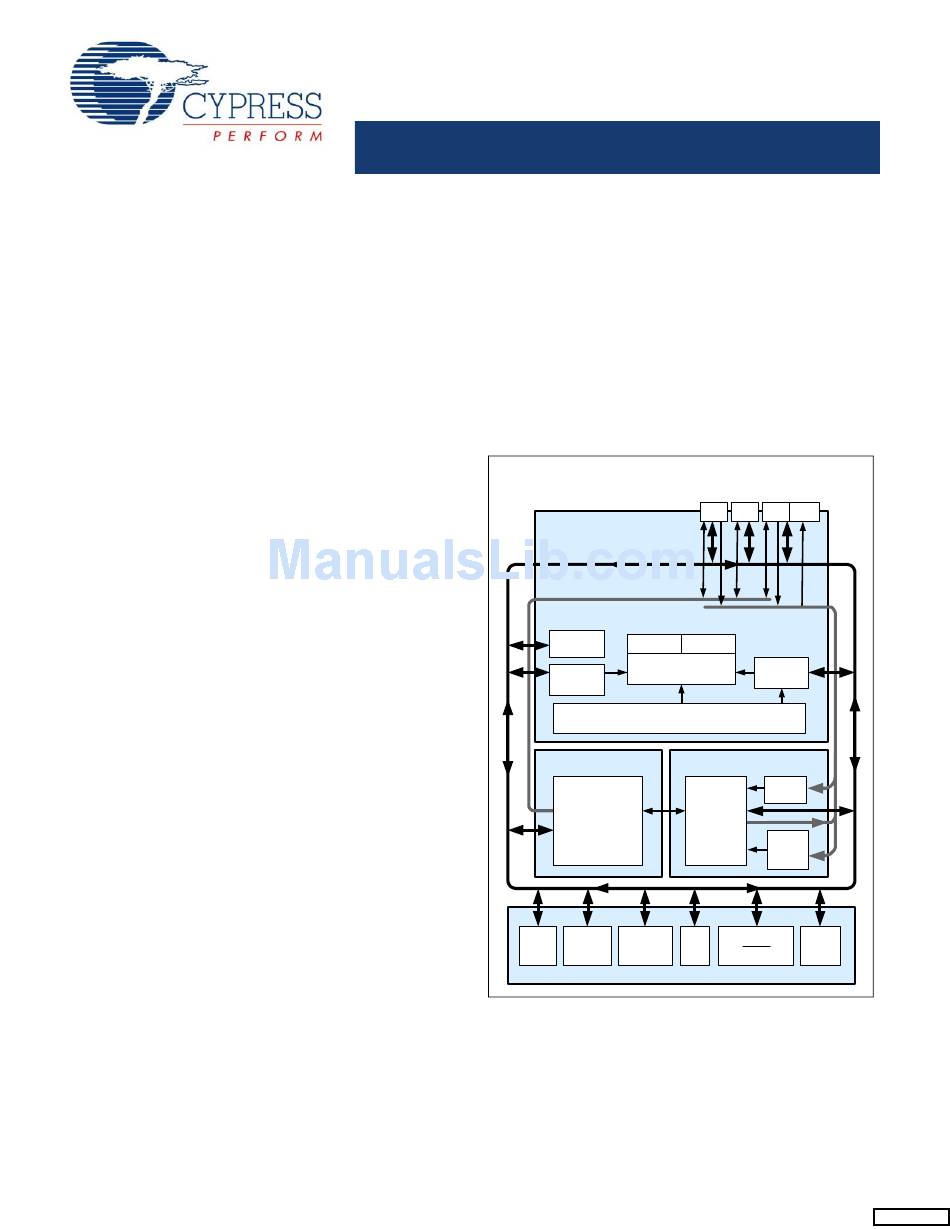

Logic Block Diagram
•
198 Champion Court
CY8C24223A, CY8C24423A
2
C™ Slave, Master, and Multi-Master to 400 kHz
PSoC CORE
System Bus
Global Digital Interconnect
SRAM
SROM
Flash 4K
256 Bytes
CPU Core (M8C)
Interrupt
Controller
Multiple Clock Sources
(Includes IMO, ILO, PLL, and ECO)
DIGITAL SYSTEM
ANALOG SYSTEM
Digital
Block Array
(1 Row,
(2 Columns,
4 Blocks)
6 Blocks)
Digital
Multiply
Decimator
2
I
C
Clocks
Accum.
SYSTEM RESOURCES
,
•
San Jose
CA 95134-1709
Analog
Port 2
Port 1
Port 0
Drivers
Global Analog Interconnect
Sleep and
Watchdog
Analog
Analog
Ref
Block
Array
Analog
Input
Muxing
POR and LVD
Internal
Voltage
System Resets
Ref.
•
408-943-2600
Revised December 11, 2008
[+] Feedback
