Features
Powerful Harvard Architecture Processor
M8C Processor Speeds to 24 MHz
8x8 Multiply, 32-Bit Accumulate
Low Power at High Speed
2.4 to 5.25V Operating Voltage
Operating Voltages Down to 1.0V Using On-Chip Switch
Mode Pump (SMP)
Industrial Temperature Range: -40°C to +85°C
Advanced Peripherals (PSoC Blocks)
Six Rail-to-Rail Analog PSoC Blocks Provide:
• Up to 14-Bit ADCs
• Up to 9-Bit DACs
• Programmable Gain Amplifiers
• Programmable Filters and Comparators
Four Digital PSoC Blocks Provide:
• 8 to 32-Bit Timers, Counters, and PWMs
• CRC and PRS Modules
• Full-Duplex UART
• Multiple SPI™ Masters or Slaves
• Connectable to All GPIO Pins
Complex Peripherals by Combining Blocks
Precision, Programmable Clocking
Internal ±2.5% 24/48 MHz Oscillator
High accuracy 24 MHz with optional 32 kHz Crystal and PLL
Optional External Oscillator, up to 24 MHz
Internal Oscillator for Watchdog and Sleep
Flexible On-Chip Memory
4K Flash Program Storage 50,000 Erase/Write Cycles
256 Bytes SRAM Data Storage
In-System Serial Programming (ISSP)
Partial Flash Updates
Flexible Protection Modes
EEPROM Emulation in Flash
Programmable Pin Configurations
25 mA Sink on all GPIO
Pull Up, Pull Down, High Z, Strong, or Open Drain Drive
Modes on All GPIO
Up to Ten Analog Inputs on GPIO
Two 30 mA Analog Outputs on GPIO
Configurable Interrupt on All GPIO
Cypress Semiconductor Corporation
Document Number: 38-12028 Rev. *I
®
PSoC
Programmable System-on-Chip™
New CY8C24x23A PSoC Device
Derived From the CY8C24x23 Device
Low Power and Low Voltage (2.4V)
Additional System Resources
I
Watchdog and Sleep Timers
User-Configurable Low Voltage Detection
Integrated Supervisory Circuit
On-Chip Precision Voltage Reference
Complete Development Tools
Free Development Software (PSoC Designer™)
Full-Featured, In-Circuit Emulator, and Programmer
Full Speed Emulation
Complex Breakpoint Structure
128K Trace Memory

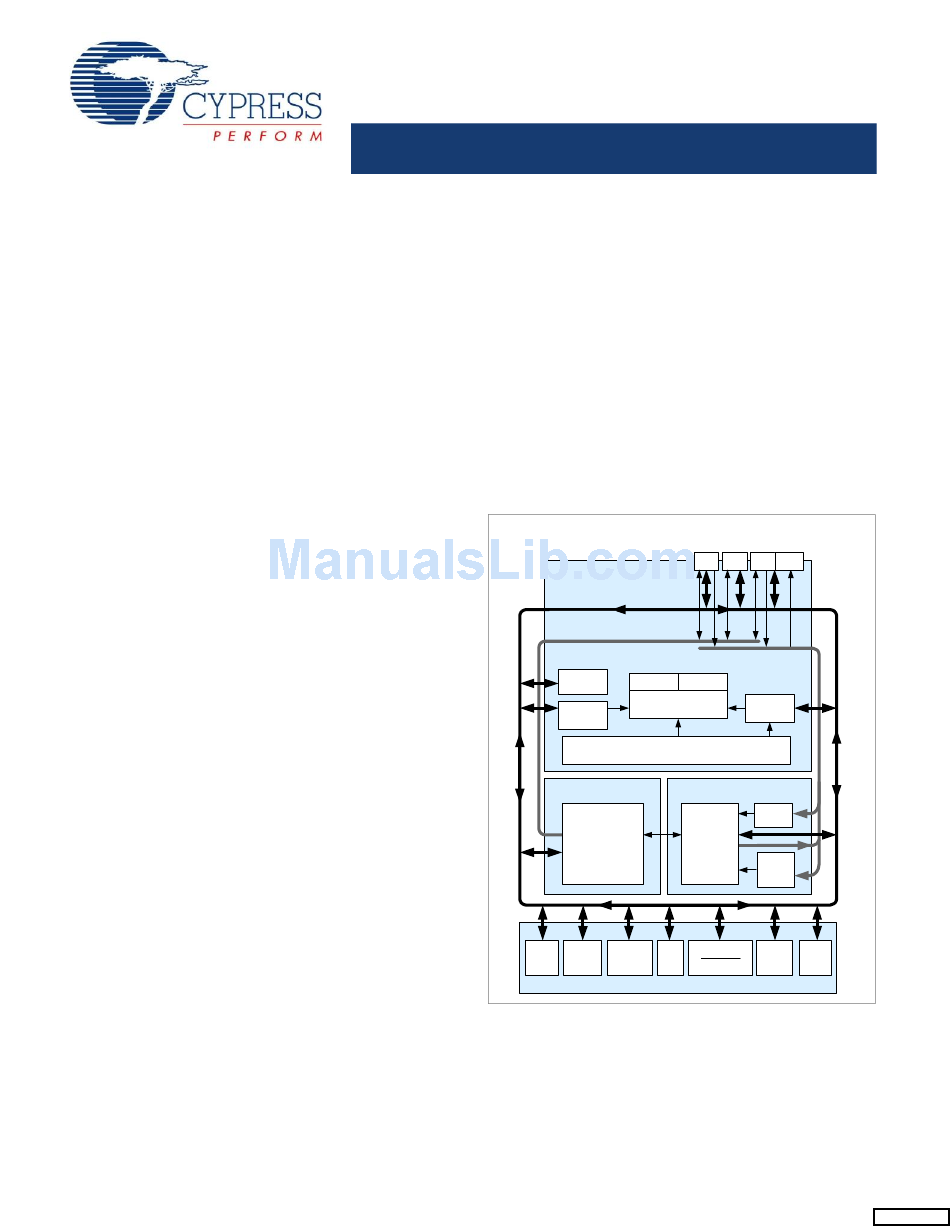

Logic Block Diagram
198 Champion Court
CY8C24223A, CY8C24423A
2
C™ Slave, Master, and MultiMaster to 400 kHz
Port 2 Port 1 Port 0
PSoC CORE
System Bus
Global Digital Interconnect
SRAM
SROM
Flash 4K
256 Bytes
CPU Core (M8C)
Interrupt
Controller
Multiple Clock Sources
(Includes IMO, ILO, PLL, and ECO)
DIGITAL SYSTEM
ANALOG SYSTEM
Digital
Analog
Block
Array
Digital
Multiply
POR and LVD
2
Decimator
I
C
Clocks
Accum.
System Resets
SYSTEM RESOURCES
,
San Jose
CA 95134-1709
CY8C24123A
Analog
Drivers
Global Analog Interconnect
Sleep and
Watchdog
Analog
Ref
Block
Array
Analog
Input
Muxing
Internal
Switch
Voltage
Mode
Ref.
Pump
408-943-2600
Revised December 11, 2008
